16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution

Name: 16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FDB0216J
Price: 9.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FDB0216J
MOQ:	10pcs
Price:	1.0USD-18.6USD
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Material:

PC+ABS/ ABS Customized

Color:

Gray

Dimension:

345*220*95mm

Cable Entry:

1 Mid Span, 2 Cable Plugs Dia:13.5mm

Cable Exit:

16 Pieces SC Reinforced Adapters

Splice Tray:

5pc 24cores Fusion Tray

Box Type:

Fiber Splice Splitter Box

Network:

PON

Seal:

Mechanical Sealing

Application:

Drop Cable Distribution Project

Packaging Details:

1pc/box, 10pcs / master box

Supply Ability:

10k pices per month

Highlight:

FTTH Solution fiber optic distribution box

IP65 fiber optic distribution box

ODP Fiber Optic Distribution Box

Product Description

FTTH 1*8 PLC Splitter Optical Distribution Box IP65 Indonesia Telecom 2 Doors White

FDB0216J is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

High mechanical strength and sealing performance
Compact light design Anti-corrosion, IP65 waterproof rate

High aging resist engineering plastic PC+ABS body
Integrated with splice cassette and cable management rods

Fiber bend radius control more than 40mm
Ready for wall mount or pole mount with installation kits provided
Distribution panel can be flipped up in separate cabinet for easy maintenance
Cable, pigtails and patch cords running through own path without disturbing each other,
2 pcs of 1*8 Splitter can be installed as an option
Lock provided for extra security
Thunder-proof security design

Specification

Model	FDB0216J
Dimension (ABC)	27534575mm
Max.Capacity	16 cores (single fiber)
Cable ports	3 in, 16 out
Cable diameter	In:Φ20mm outdoor fiber optic cable, out: 2*φ3mm drop cable
Splitter quantity	1x16 or 1x8 LGX splitter module
Color	Grey

Product Details

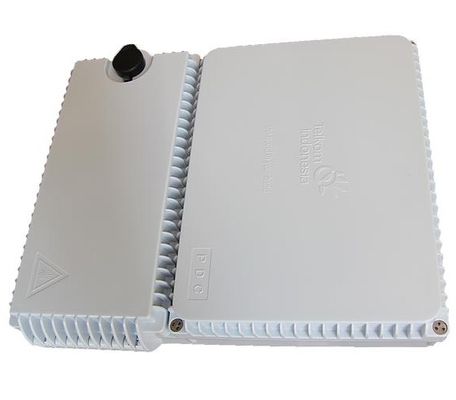

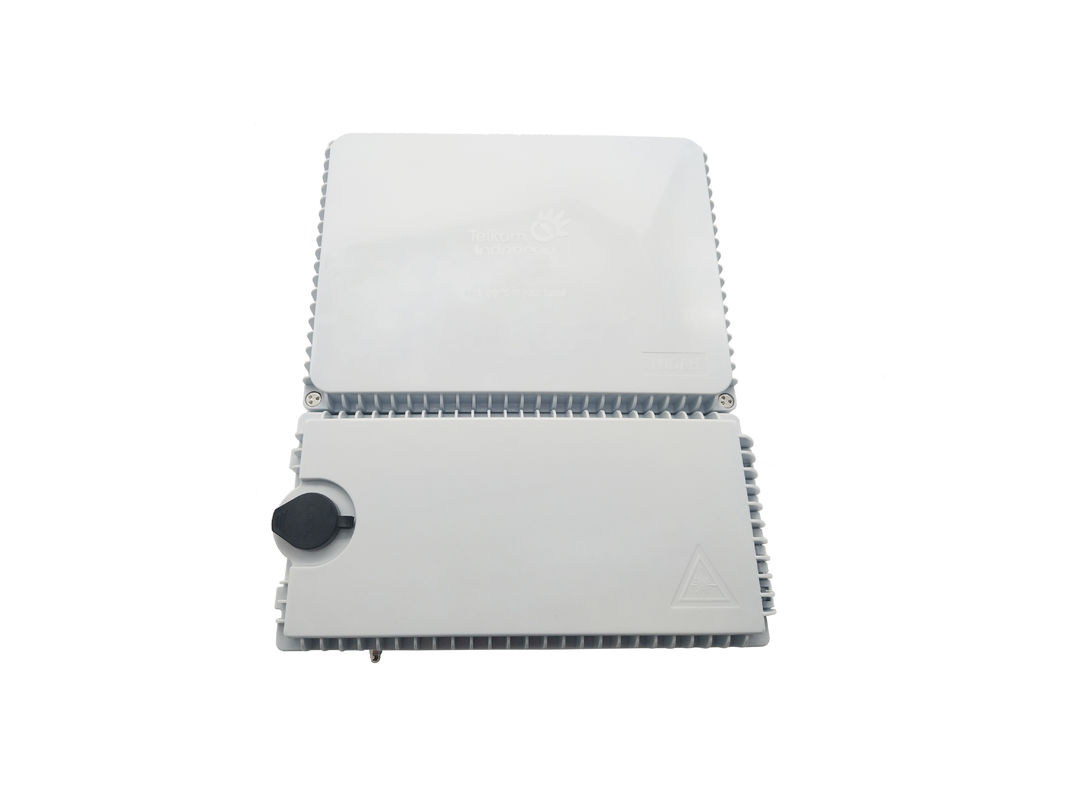

This fiber optic spltiter box is 2 covers design, one for splitting, one for cable distribution, independent partition settings, without mutual interference. Special lock on cover and laser mark, silkpritn /laser print customer logo or emdedded LOGO are available.

Each box will be pack with a plastic bag and an inner cardboard box, good protection from impact. All accessories will be put inside of the box or in this individual carton box.

16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution 1

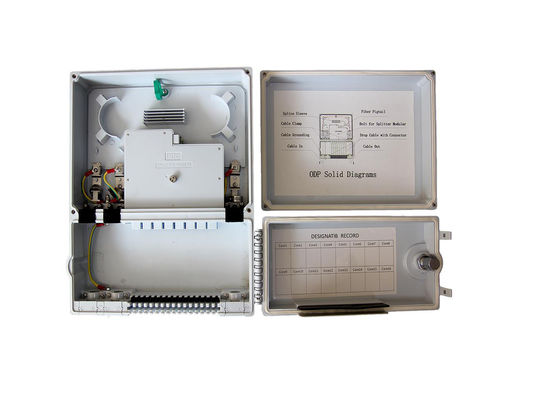

Internal splitter can be 1x8 or 1x16 splitter module, with SC shutter adapters, and all cable ports are with rubber seals to make sure the waterproof function, and with grouding wire device for outdoor use.

16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution 2

16pcs drop cable ports are flat, and with rubber seals and number mark, easy to operate,identify and convenient for future use.

16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution 3

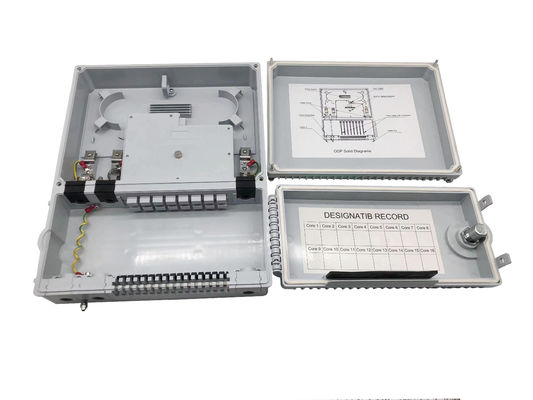

There is ODP distribution diagram for construction workers to refer to, humanity design.

16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution 4

16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution 5

Standard Accessory

2key, nylon tie, sleeve, adhesive tape, pole mount ring, buffer tube, mounting expansion screws

16 Port ODP Outdoor IP65 Fiber Optic Distribution Box FTTH Solution 6
