Outdoor Fiber Optic Self-Supporting FTTH Drop Cable GJXFCH FRP Steel Strength
Description

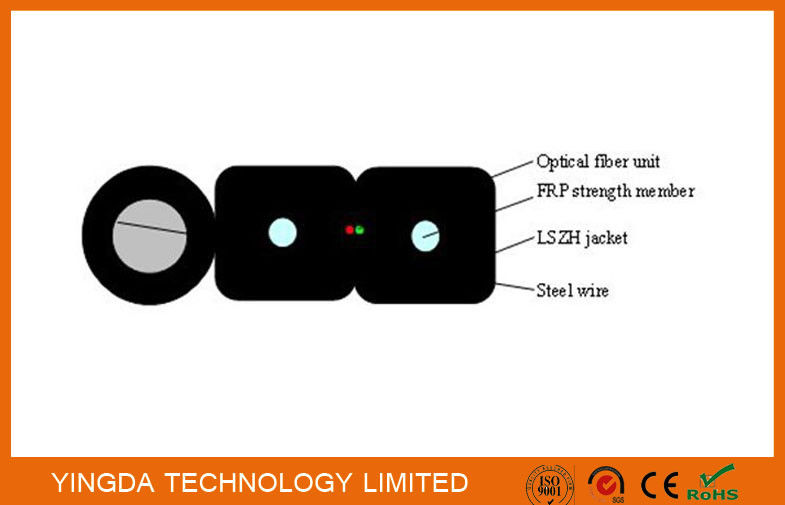

The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP
are placed at the two sides. A steel wire as the additional strength member is also applied,
then the cable is completed with a black or color LSZH Sheath.
Application
◆Used in access network or access cable from outdoor to indoor in customer premises network
◆Used as access building cable in premises distribution system,especially used in indoor or outdoor
aerial access cabling
Technical parameters
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
|||||||||
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||||||||
GJXFCH-01 |
1 |
2.0*5.0 |
20 |
300 |
600 |
1100 |
2200 |
30D |
15D |
-20~+60 |
||||||
GJXFCH-02 |
2 |
2.0*5.0 |
21 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
GJXFCH-04 |
4 |
2.0*5.0 |
23 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
GJXFCH-06 |
6 |
3.0*7.0 |
35 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
GJXFCH-08 |
8 |
3.0*7.0 |
38 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
GJXFCH-12 |
12 |
3.0*7.0 |
40 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
|
||||||||||||||||
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||||||||
Jacket material |
PE |
LSZH |
||||||||||||||
Features |
||||||||||||||||
Special low bend sensitivity fiber provides high bandwidth |
||||||||||||||||
Two parallel FRP strength member ensures good performance of crush resistance to protect the fiber |
||||||||||||||||
Simplex structure, light weight,high practicability |
||||||||||||||||
Low smoke zero halogen and flame retardant sheath |
