| Brand Name: | YINGDA |
| Model Number: | GJYXFCH |
| MOQ: | 2KM |
| Price: | Negotiable |
Outdoor Self-Supporting FTTH Drop Cable GJXFCH FRP Steel Messenger Wire G657A2 LSZH

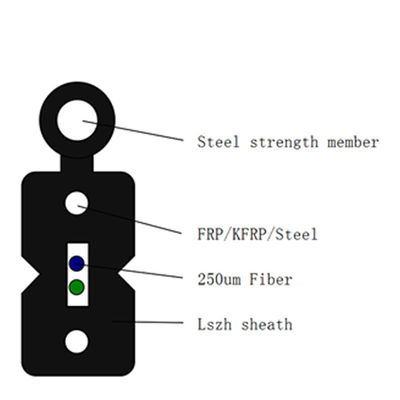

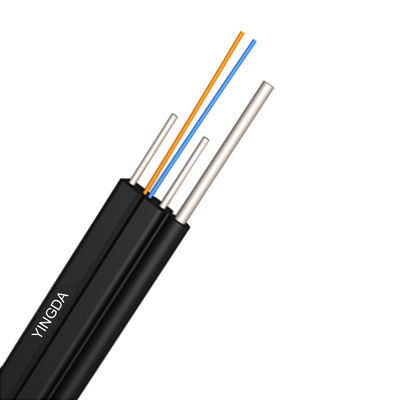

The optical fiber unit is positioned in the center, two parallel fiber reinforced plastic FRP are placed at both sides.The supporting messenger wire can be steel or FRP, it is used for aerial mount application, the size can be 1.0mm or 1.2mm on customer request, the outer sheath standard is LSZH materials, cable color can be grey, black, or white. OEM or ODM is available.
FTTH Cable Application
◆Used in access network or access cable from outdoor to indoor in customer premises network
◆Used as access building cable in premises distribution system,especially used in indoor or outdoor aerial access cabling
Drop Cable Technical parameters
|
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
|||||||||
|
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||||||||
|
GJXFCH-01 |
1 |
2.0*5.0 |
20 |
300 |
600 |
1100 |
2200 |
30D |
15D |
-20~+60 |
||||||
|
GJXFCH-02 |
2 |
2.0*5.0 |
21 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
|
GJXFCH-04 |
4 |
2.0*5.0 |
23 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
|
GJXFCH-06 |
6 |
3.0*7.0 |
35 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
|
GJXFCH-08 |
8 |
3.0*7.0 |
38 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
|
GJXFCH-12 |
12 |
3.0*7.0 |
40 |
300 |
600 |
1100 |
2200 |
30D |
15D |
|||||||
|
|
||||||||||||||||
|
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||||||||
|
Jacket material |
PE |
LSZH |
||||||||||||||
|
Features |
||||||||||||||||
|
Special low bend sensitivity fiber provides high bandwidth |
||||||||||||||||
|
Two parallel FRP strength member ensures good performance of crush resistance to protect the fiber |
||||||||||||||||
|
Simplex structure, light weight,high practicability |
||||||||||||||||
|
Low smoke zero halogen and flame retardant sheath |
||||||||||||||||
Fiber Optic Drop Cable Product Deatails
|
|
| Brand Name: | YINGDA |
| Model Number: | GJYXFCH |
| MOQ: | 2KM |
| Price: | Negotiable |

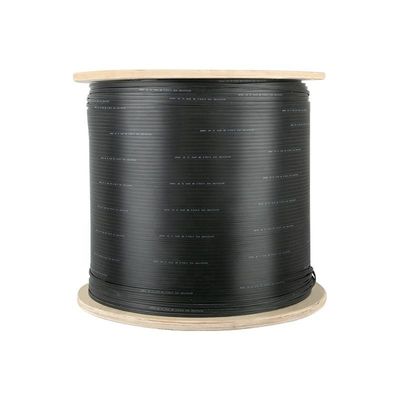

| Packaging Details: | 2km / wooden drum, 1durm/carton box |
