YINGDA 32 Ports Fiber Optic Splitter Box For Outdoor FTTH Network Waterproof For XGSPON

MOQ: 100pcs
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box, 10pcs/carton
Delivery Period: 7days
Payment Method: Western Union, T/T, L/C, MoneyGram
Supply Capacity: 50000PCS/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
Yingda
Certification
ISO,SGS
Model Number
FDB0232A
Material:
ABS
Color:
Grey
Application:
FTTH, FTTB FTTX Networks, Outoor
Product Name:
32cores Fiber Distribution Box, Fiber Optic Termination Box
Waranty:
3 Years
Size:
407*290*130mm
OEM Service:
Support
Splitter Qty:
1*1x32 Or 2*1x16 Or 4*1x8 Splitter LGX Module
Protection Level:
IP55
Cable Ports:
2in 2out Cable Glands
Max Capacity:
48 Cores Single Fiber
Cable Diameter:
In:ø20mm, Out:ø13.5mm
Highlight:

32 Ports Fiber Optic Splitter Box

,

Waterproof Fiber Optic Splitter Box

,

Outdoor Fiber Optic Splitter Box

Product Description

YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black for FTTH Nap Caja Terminal Grey Pole Mount Outdoor



The Fiber distribution box is able to hold up to 32 subscribers. This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

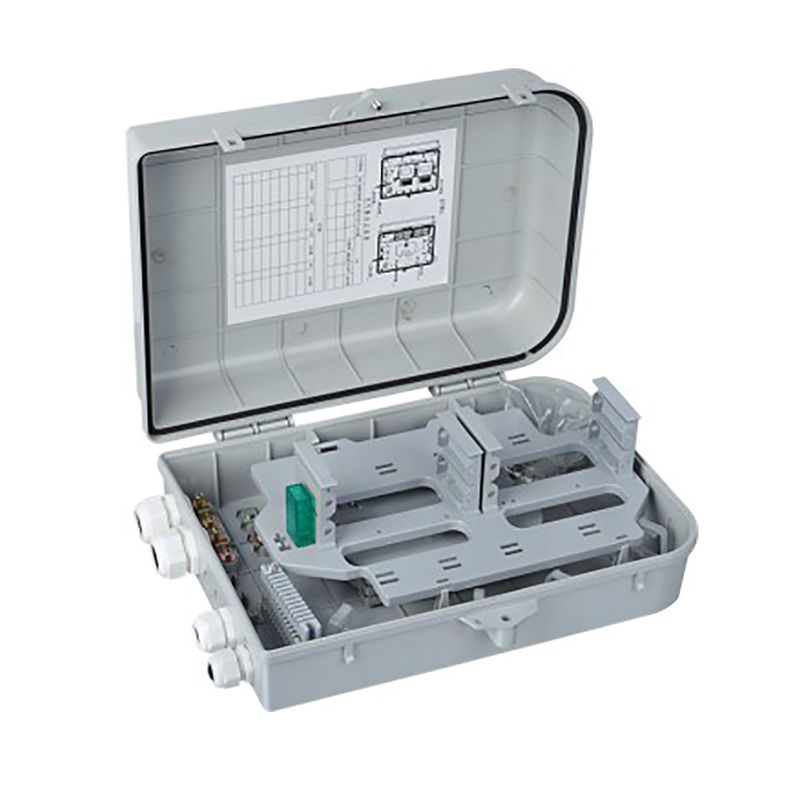

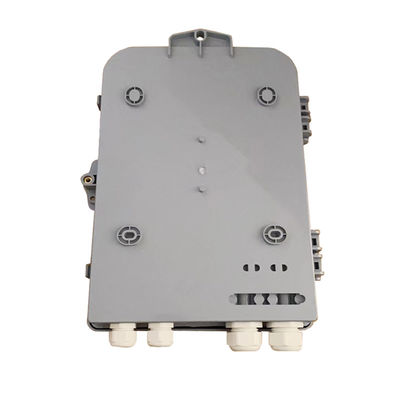

YINGDA 32 Ports Fiber Optic Splitter Box For Outdoor FTTH Network Waterproof For XGSPON 0YINGDA 32 Ports Fiber Optic Splitter Box For Outdoor FTTH Network Waterproof For XGSPON 1



Features

       Ø Total enclosed structure with 1 buckle, easy to open and close;

Ø High quality plastic engineering material,water-proof, dust proof, anti-aging, RoHS compliance;

Ø Clamping for feeder cable and drop cable, fiber splicing, fix, storage, distribution all in one.

Ø Cable, pigtails, patch cords are running through own path without disturbing each other;

Ø Cassette type of splittr, max 2x32 splitlter module can be use;

Ø Distribution panel can be flip up,easy for maintenance and installation.

Ø Outdoor wall-mounted or pole mounted, IP65 protection level.



Specification



Model FDB0232A
Dimensions (W*H*D) 407*290*130mm
Max capacity 48 cores single fiber =2* 24F trays
Splitter qty 1*1x32 or 2*1x16 or 4*1x8 splitter LGX module
Cable Ports 2in 2out cable glands
Cable diameter In:ø20mm, out:ø13.5mm
Material ABS
Color gray
Protection Level IP55
Installation Wall-mounted/Pole-mounting



Application

Ø CATV, LAN, WAN network

Ø Telecommunication networks

Ø Data processing networks

Ø Test equipment



Accessory list

Wall mounting kits 4pcs
Screws 4pcs
Cable tie 10pcs
Heat shrink protection sleeve 16pcs
Key 1pc
Buffer tube 1pc
Pole mount kits 1set -optional, if need, charge additionally
Adapters 18pcs -optional, if need, charge additionally
Plc splitter 1x8, 1x16 -optional, if need, charge additionally







Mounted Mothed:

Wall-mounted,Pole-mounted

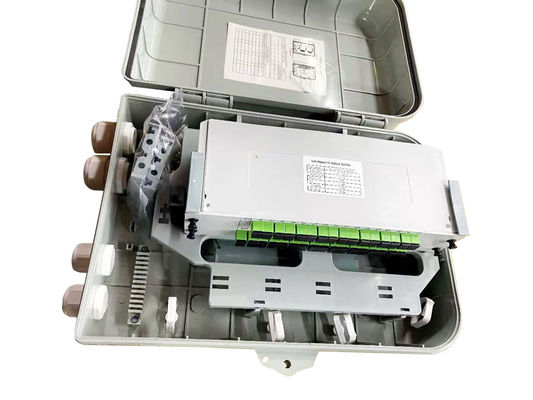

Actual picture



Support load with 32Cores LGX Module box, can be work for 2U 32ports



YINGDA 32 Ports Fiber Optic Splitter Box For Outdoor FTTH Network Waterproof For XGSPON 2





Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

B
B*n
Canada Apr 28.2025
Helpful (3)
Excellent product, complete Items as specified. Special thanks to ms. Milla for such Great service.
N
N*n
France Oct 25.2023
Helpful (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
S
Steven
Peru Mar 16.2023
Helpful (12)
YINGDA is always very fast to manufacture custom cables with high quality and reliability.

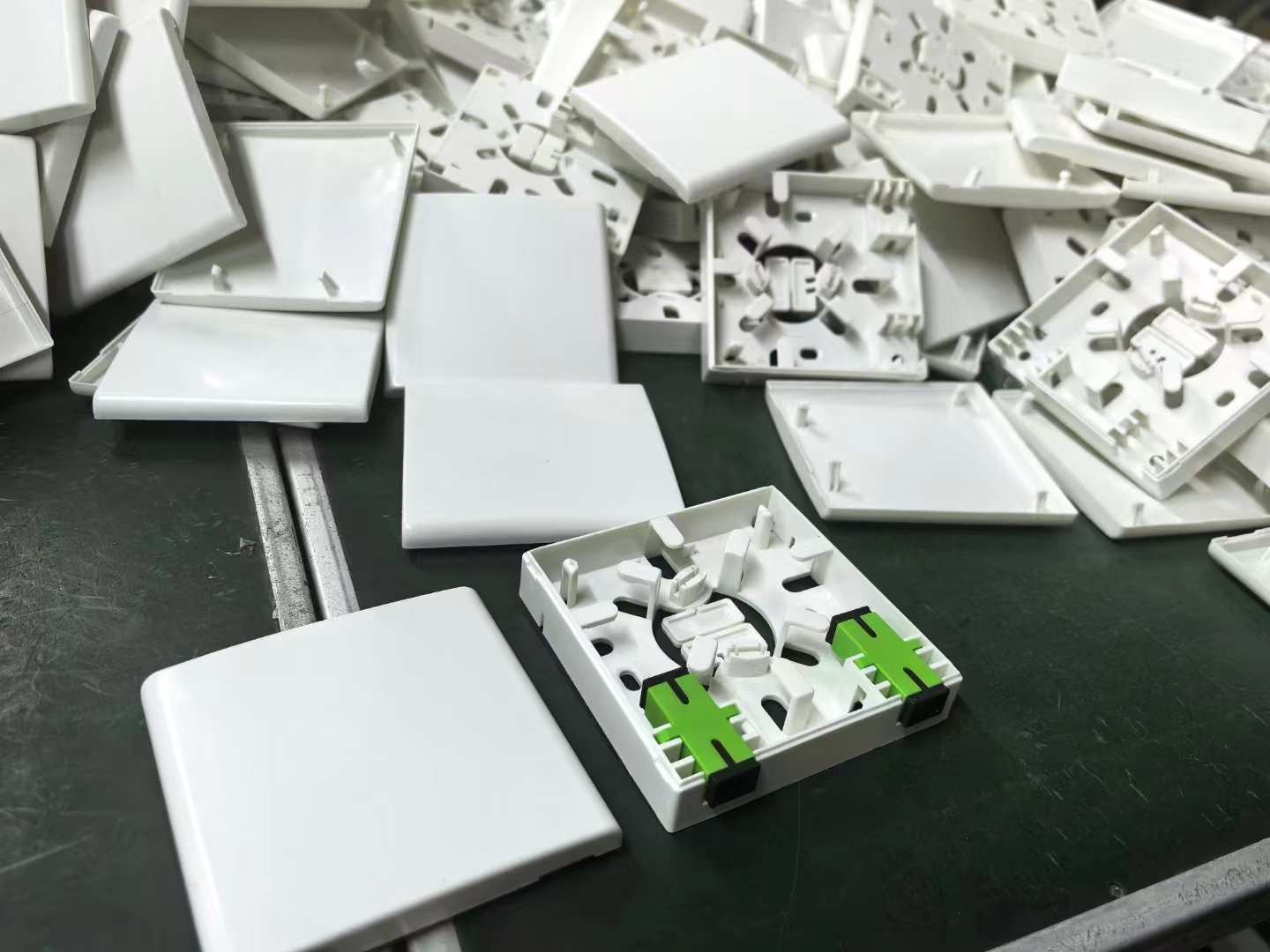

Review Image
