YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor

MOQ: 100pcs
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box, 10pcs/carton
Delivery Period: 7days
Payment Method: Western Union, T/T, L/C, MoneyGram
Supply Capacity: 50000PCS/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
Yingda
Certification
ISO,SGS
Model Number
FDB0216V-B
Material:
ABS
Color:
Black
Application:
FTTH, FTTB FTTX Networks, Outoor
Product Name:
16 Cores Fiber Distribution Box, Fiber Optic Termination Box
Waranty:
3 Years
Size:
287*172*102mm
OEM Service:
Support
Adapter:
1*8 Or 1*16 LGX Module
Highlight:

16 Core Fiber Optic Splitter Box

,

Caja Terminal FTTH Fiber Optic Splitter Box

,

Outdoor Fiber Optic Splitter Box

Product Description

YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black for FTTH Nap Caja Terminal Grey Pole Mount Outdoor



This outdoor fiber optical distribution box is a high-density solution for FTTH next generation networks, it provide and manage maximum 16 cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application. IP65 waterproof grade.



YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 0YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 1



Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1pc 1x16 or 2pcs 1x8  PLC mini splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall mounted, pole mounted
  • Max. Hold 16 pcs SC or LC duplex adapters, max. 16cores fusio splice
  • 1pc mid span ports, 2 round cable port, 16 pcs FTTH 2*3mm drop cable outports
  • Pre-install SC adapter or micro splitter, pigtails available.
  • IP66 level for outdoor use

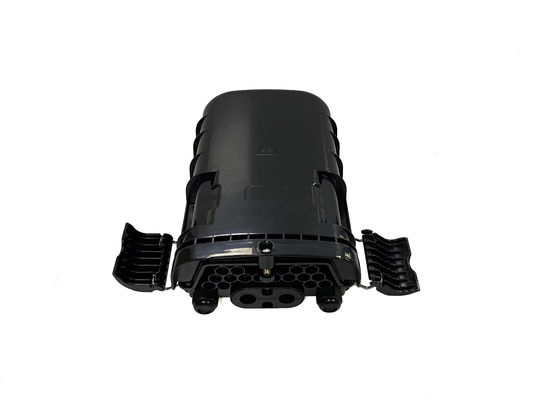

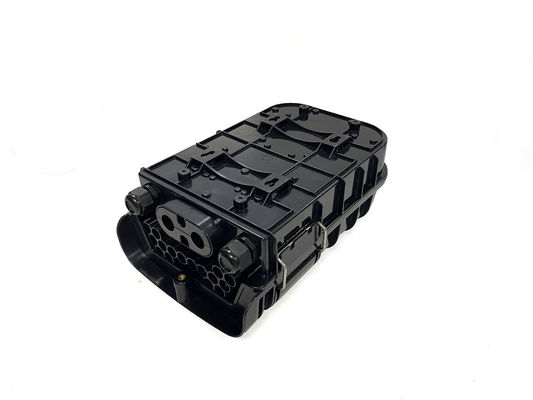

Product pictures



YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 2YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 3

YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 4YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 5

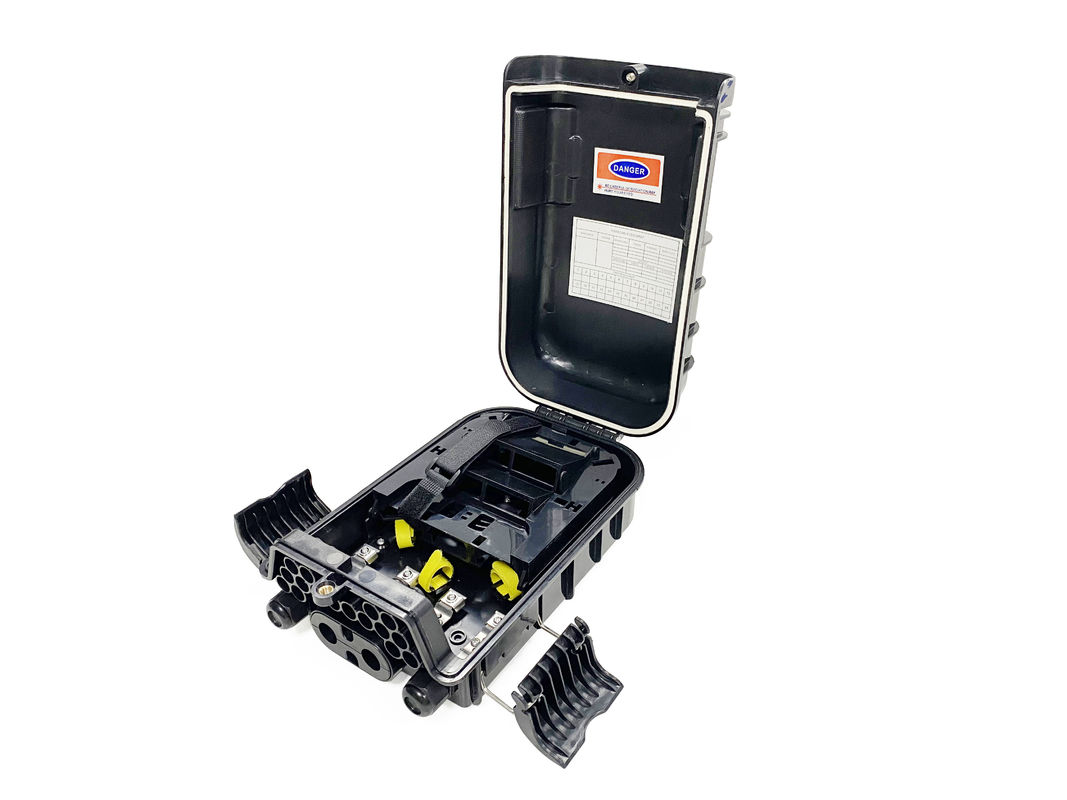

                              INTERNAL VIEW                                       ACCESSORY BAG



YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 6      YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 7

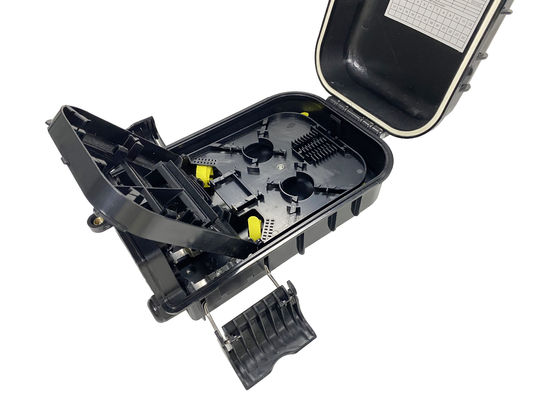

            CABLE WIRE DRAWING                                              THE TRAY IS REMOVALBLE



YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 8YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 9

          2BUCKLES, EACH 1 SIDE                                         SIDE VIEW



Specification

Model FDB0216V-A FDB0216V-B
Dimension (A*B*C) 287*172*102mm
Max.Capacity 16 cores (single fiber)
Cable ports 1mid span, 2cable glands, 16out
Cable diameter 1mid span(Φ13.5mm), 2cable gland(Φ7-12mm), 16: drop cable 2*3mm or <4.5mm round cable
Splitter quantity 1x16 or 2pc 1x8 steel tube 1x16 or 2pc 1x8 LGX module
Color Grey / black



Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)



Accessory list

Wall mounting kits 4pcs
Screws 4pcs
Cable tie 10pcs
Heat shrink protection sleeve 16pcs
Key 1pc
Buffer tube 1pc
Pole mount kits 1set -optional, if need, charge additionally
Adapters 18pcs -optional, if need, charge additionally
Plc splitter 1x8, 1x16 -optional, if need, charge additionally



YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 10YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 11

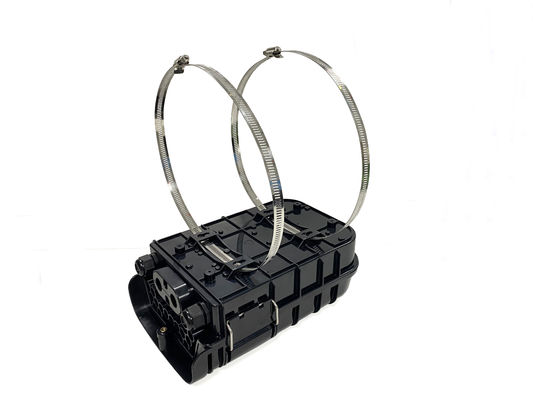

Mounted Mothed:

Wall-mounted,Pole-mounted

YINGDA Factory 16 Core IP66 Waterproof Fiber Optic Splitter Box Black For FTTH Nap Caja Terminal Grey Pole Mount Outdoor 12
