FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Color
    White
  • Material
    Plastic PC / ABS
  • Connector
    SC
  • Fiber Count
    4cores LC, 2fiber SC
  • Size
    205*115*35 Mm
  • Cable Diameter
    7-14mm
  • Cable Port
    2pcs
  • Weight
    0.25kgs
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    FTB102
  • Minimum Order Quantity
    50 PCS
  • Price
    Negotiable
  • Packaging Details
    1pc/ box

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex

FTTH Wall-mounted Box, 2 Port Fiber Optic Termination Box SC LC Duplex





Sell point:

  1. sample is free
  2. adaptor pigtail can be installed
  3. customer OEM logo, label available
  4. have english user manual on request
  5. 3-5 days manufacture time
  6. plastic ABS material



FTB-102 2 Fiber FTTH Fiber Terminal Box is suitable for SC and LC Fiber Optic Adapter.

The box is light and compact, especially suitable for protective connection of fiber cables

and pigtails in FTTH.

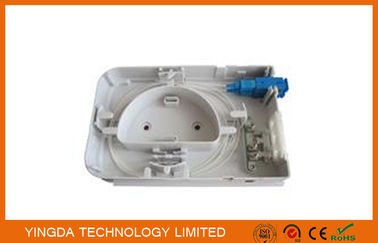

FTB0102 fiber terminal box structure

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex 0



Features:


● Small size, light weight, nice outer appearance
● Can be equipped indoor wall mount with mechanical protective function
● adapt to various optical connection styles
● Set strengthen device and fiber optic cable mounting seat
● equipped with 2 SC or 4 LC adaptors



Specification



Dimension (mm) H*W*D

205*115*35

 Weight (Kg)

0.25

 Cable diameter (mm)

Φ7~Φ14

 Cable port

2 holes

Max capacity of splice tray

2-4 (single Fiber)

Max No. of splice tray

 1

Max capacity of cable

 4 (single Fiber)





Application:


Used in the end termination of residential buildings and villas, to fix and splice with pigtails.



More pictures

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex 1

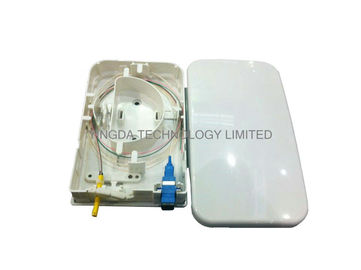

FTB0102 fiber termination box internal view



Standard accessories:  expansion screws x 2pcs

                                         plastic clip x 2pcs



FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex 2

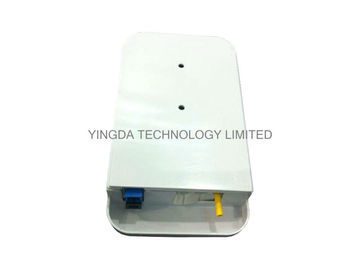

FTB102 termination box outer apperance

 clip lock, wall mounting
