YINGDA High Speed 8Fiber MPO Male to LC OM3 Fanout Patch Cord Single Mode 9/125um Breakout 100G 400G

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: According to the requirement
Delivery Period: 7days after payment
Payment Method: Western Union,T/T
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO CE
Model Number
No
Connector 1:
MPO Male Connector
Fiber Type:
G657A2 Single Mode
Breakout Kit:
Round Black Plastic
Fiber Count:
12 Cores Bundle Cable
Insertion Loss:
<0.7dB
Cable:
Round 3mm Yellow
Connector 2:
OM3 LC Connector
Polarity:
Polarity A B C Are Available
Length:
OEM
Type:
Fanout Cable Type
Highlight:

100G MPO LC Patch Cord

,

8Fiber MPO LC Patch Cord

,

Single Mode MPO Patch Cord

Product Description

YINGDA High Speed 8 Fiber MPO Male to LC OM3 Fanout Patch Cord Single Mode 9/125um Breakout 100G 400G

MPO/MTP fiber optic patch cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO MTP connector. The connector might be female or male with guide pin. The cable from 4-144core, single mode or multi mode, the single mode fiber including G652D G657A G657A2, the multi mode fiber including 62.5/125um. 10G OM2/OM3/OM4, OR BENDING INSENSITIVE 10G multi mode cable.



Yingda is with strong MPO MTP product design and manufacturing ability, we can provide products with pigtails to customer requirements. All products delivered with excellent performance and reliability. Most of our products are SENKO brand, or USCONEC brand. If not customized, will use MADE IN CHINA connectors parts, please kindly note.

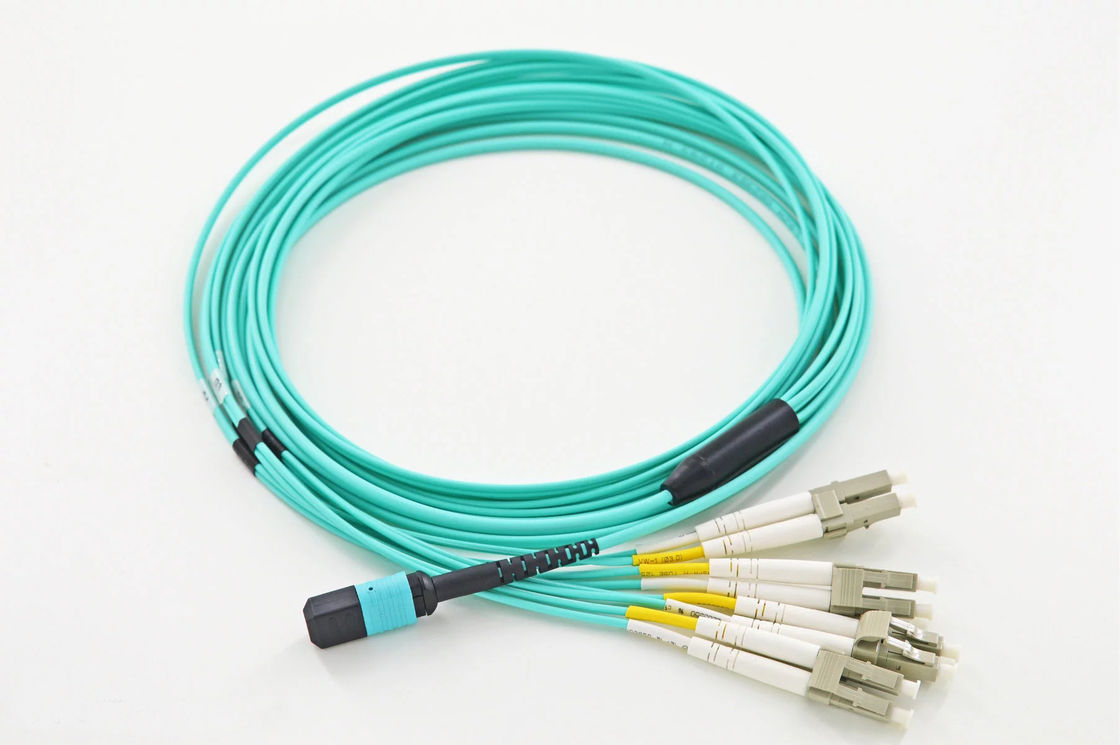

YINGDA High Speed 8Fiber MPO Male to LC OM3 Fanout Patch Cord Single Mode 9/125um Breakout 100G 400G 0



Fiber optical cable MPO MTP Features

Customized, high adaptability

Different fiber cores and cable structure for different installation

Improved and simplified cabling, reduce cabling spacing

Complied with IEC61754-7, Telcodia GR-1435- CORE, RoHS

fiber cable MPO Application

Data Center and 40Gb/s Applications

Fiber to the home ( FTTH )

High density fiber optic cable management



optical fiber MPO Connector Specification

Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300



LC SC FC fiber optic connector Specification

Fiber mode Single mode   Multi mode
Connector polishing PC APC PC
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850

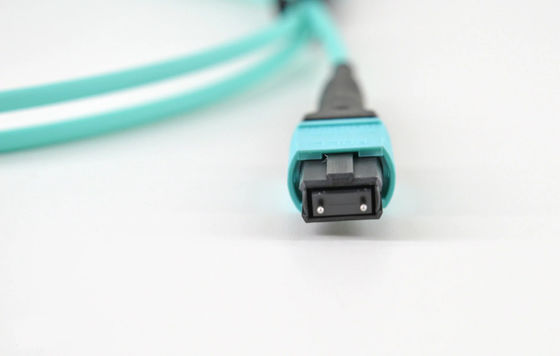

YINGDA High Speed 8Fiber MPO Male to LC OM3 Fanout Patch Cord Single Mode 9/125um Breakout 100G 400G 1

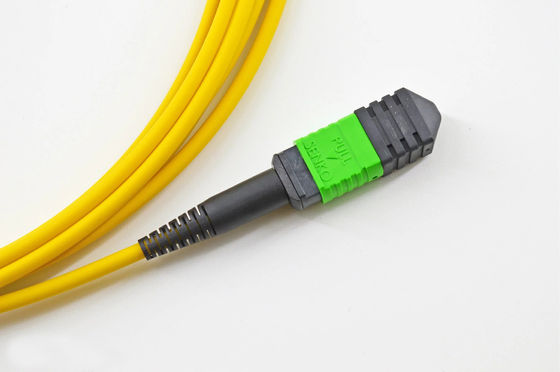

YINGDA High Speed 8Fiber MPO Male to LC OM3 Fanout Patch Cord Single Mode 9/125um Breakout 100G 400G 2

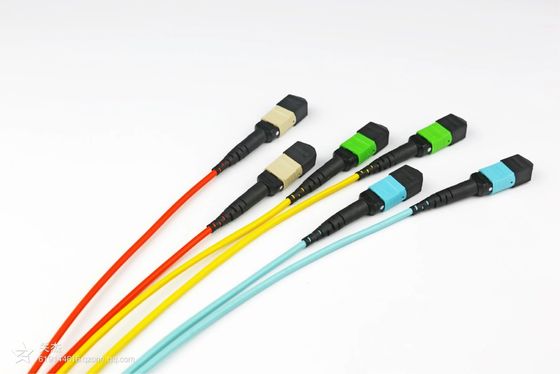

YINGDA High Speed 8Fiber MPO Male to LC OM3 Fanout Patch Cord Single Mode 9/125um Breakout 100G 400G 3

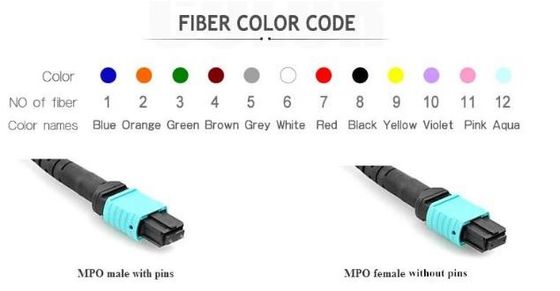

Bare Fiber Colors

No

8 Ribbon fiber

No

12 Ribbon fiber

1

Blue

1

Blue

2

Orange

2

Orange

3

Green

3

Green

4

Brown

4

Brown

5

Gray

5

Gray

6

White

6

White

7

Red

7

Red

8

Black

8

Black

9

Yellow

9

Yellow

10

Violet

10

Violet

11

Pink

11

Pink

12

Aqua

12

Aqua


Order information

P/N

Description

MPOm-12FC-OM1

MPO Fan-out patch cord, OM1 (62.5/125um),
MPO Male-12xFC UPC 1m Orange

MPOm-62FC-OM1

MPO Fan-out patch cord, OM1 (62.5/125um),
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-12FC-OM2

MPO Fan-out patch cord, OM2 (50/125um),
MPO Male-12xFC UPC 1m Orange

MPOm-62FC-OM2

MPO Fan-out patch cord, OM2 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-12FC-OM3

MPO Fan-out patch cord, OM3 (50/125um),
MPO Male-12x FC UPC 1m Orange

MPOm-62FC-OM3

MPO Fan-out patch cord, OM3 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-12FC-OM4

MPO Fan-out patch cord, OM4,
MPO Male-12x FC UPC 1m Orange

MPOm-62FC-OM4

MPO Fan-out patch cord, OM4,
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-62FC-OM1-U

MPO Fan-out patch cord, OM2 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange uni-boot

MPOm-62SC-OM2-U

MPO Fan-out patch cord, OM1 (62.5/125um),
MPO Male-6xDuplex FC UPC 1m Orange uni-boot

MPOm-62FC-OM3-U

MPO Fan-out patch cord, OM3 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange uni-boot

MPOm-62FC-OM4-U

MPO Fan-out patch cord, OM4
MPO Male-6xDuplex FC UPC 1m Orange uni-boot
