1U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel
  • name
  • name
  • name
  • name
  • name

1U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel

MOQ: 50pcs
Price: 0.2USD-100USD
Standard Packaging: 1pc/box
Delivery Period: 8-10days
Payment Method: T/T, Western Union, MoneyGram
Supply Capacity: 2000pcs/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
GPRM-1U-4LGX/MPO
Material:
Cold Rolled Steel
Color:
Black
Dimension:
430*250*1U Mm
Pack:
1pc/box
Max Capacity:
96cores
Cassette Quantity:
4pcs
Cassette Module Capacity:
24fibers
Adapter:
MPO Male/female, LC Duplex Adapter
Cable Ports:
4 In, 96 Out
Insertion Loss:
MPO<0.7dB, LC<0.2dB
Type:
Fixed Model
Highlight:

1U MTP MPO Cable Patch Panel

,

Cable Patch Panel for Network

Product Description

1U Rack Mount MPO Patch Panel



MPO MTP Patch Panel max hold up to 4pcs MPO Cassettes in a 19" rack mount terminal box, 1U height. The patch panel is rack mount, made of cold rolled steel with spray surface. The 4 cassettes is easy to insert and take out by hand, no need screws. It is sound box for MPO MTP data center application, mix fiber connection, storage and management in one set. Blank panels are included for unsed apertures within the patch panel. The 19inch mounting brackets are adjustable to allow th panel to be set further back in the cabinet mounting frames, 1U 2U 3U 4U height is available for fiber expanding.

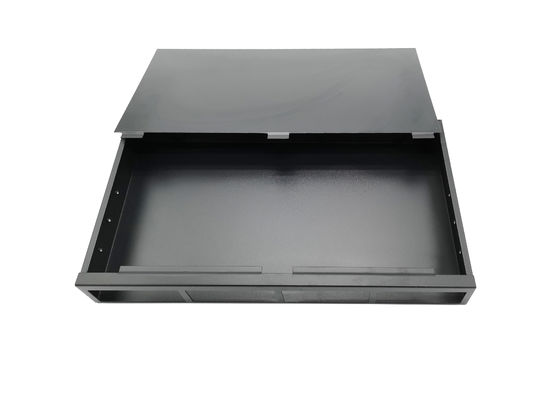

1U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel 01U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel 1

Features

Features

  • Easy for installation and operation
  • 19'' standard structure
  • Rack mount on patch panel
  • Available for the installation of FC/SC/ST/LC adapters
  • FTTX FTTH solutions

Application



  • Data communication applications
  • Data Centre infrastructure
  • Storage Area Network-Fiber Channel
  • Emerging 40 and 100Gbps Protocols compatible

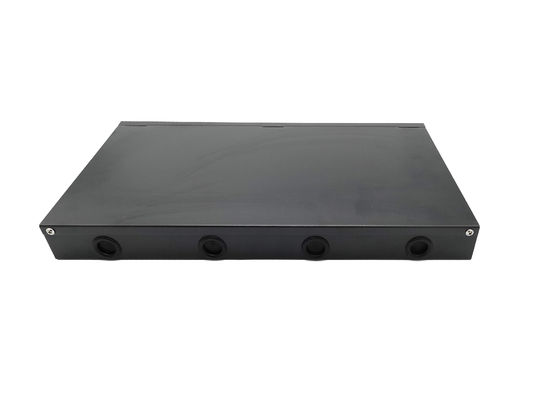

1U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel 2

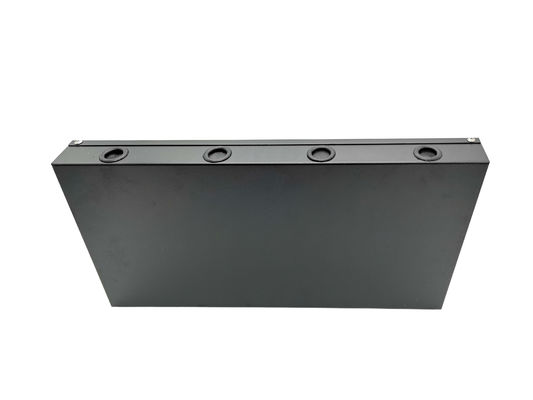

1U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel 3

Order information



Model Product name color Inner box Shipping box
YD-MPO-1U-72 MPO 1U optical fiber patch panel black 1PCS 5PCS

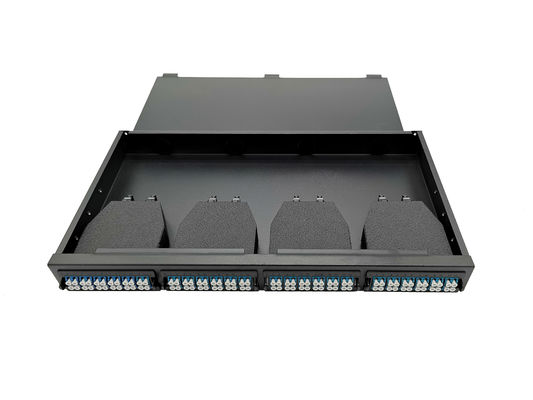

1U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel 4

More product pictures

  • each 1piece / box , good protection to box and internal fibers.
  • front dustproof panel is transparent, but flexible to take off. It is good for fiber protection and system safe.

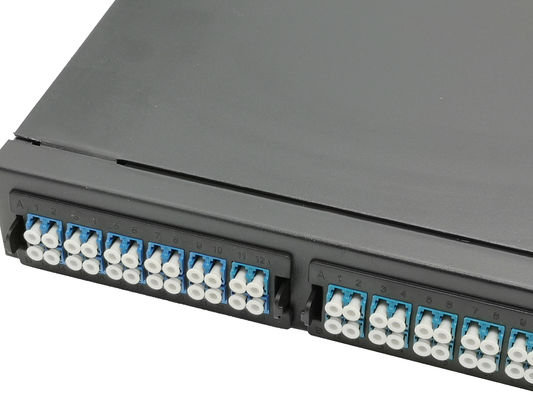

1U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel 51U MTP MPO Cable Patch Panel for Storage Area Network-Fiber Channel 6

  • each patch panel can hold 4 pieces of MPO cassette modules, each modules can do 12fibers=6xLC duplex, or 24fibers=12xLC duplex.
  • it is also can use only for MPO ports for truck cable.









If need 3U MPO/MTP patch panel, please contact us for link.

Thanks.
