YINGDA 72 Cores MPO Sliding Drawer Type Fiber Optic Patch Panel For Data Center Cabling 100G 400G

MOQ:	50pcs
Price:	0.2USD-100USD
Standard Packaging:	1pc/box
Delivery Period:	8-10days
Payment Method:	T/T, Western Union,
Supply Capacity:	2000pcs/month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

china

Brand Name

YINGDA

Certification

Model Number

YDMPO-1U-72

Material:

Cold Rolled Steel

Color:

Black

Pack:

1pc/box

Max Capacity:

72cores

Cassette Quantity:

Cassette Module Capacity:

24fibers

Adapter:

MPO Male/female, LC Duplex Adapter

Cable Ports:

>23ports At Back

Insertion Loss:

MPO<0.7dB, LC<0.2dB

Type:

Sliding Out Patch Panel

Dimension:

19inch Standard Size

Cable Entry Port:

4 Round Port With Rubber φ20mm

Highlight:

72 Cores Fiber Optic Patch Panel

100G 400G Fiber Optic Patch Panel

Sliding Drawer Fiber Optic Patch Panel

Product Description

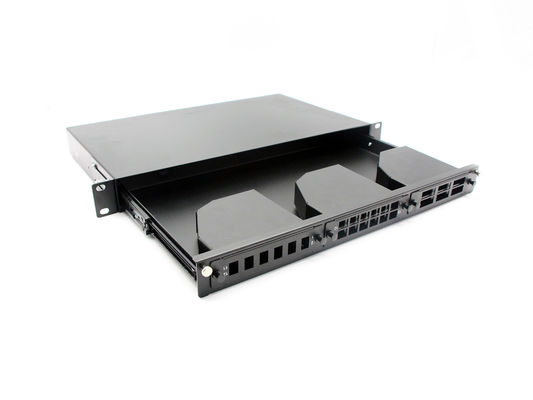

YINGDA 72 Cores MPO Sliding Drawer Type Fiber Optic Patch Panel for Data Center Cabling 100G 400G

MPO Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for data center and high density cabling system, it is large capacity and small size, good performance. It is 19inch standard size for rack mount optical distribution frame, suitable to use LC duplex couplers.

YINGDA 72 Cores MPO Sliding Drawer Type Fiber Optic Patch Panel For Data Center Cabling 100G 400G

Features

Standards: IEC / EN 61754-7 (MPO connector) and TIA-568-B.1-7
Modular connection system: Factory pre terminated optical fiber connection components, any length and any optical fiber SM & mm, trunk cable and module box, easy installation, plug and play system solution
High density connection system: compact design, 12 core connector, up to 72 core optical fiber 1U rack mount
After factory pre termination and testing, the quality assurance and consistency exceed the demand of 10Gbit
Made of high quality Cold rolled steel sheet, with electrostatic spraying
Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover
Total front operation with cable clamps and routing area, large fiber management area
2U,3U are available
3pcs MPO module and removable adapter panel simplex or duplex
Sliding tray Open
Easy to operate when installation

Application

Machine rooms of data center and intranet

Technical Specification

Dimension	4823151U mm
Max capacity	72 cores
Material	Cold rolled steel SPCC
Cable entry port	4 round port with rubber φ20mm
Cable exit port	Lc duplex adapters
Adapter quantity	24pcs
Operating temperature	-10~+85°C
Standards	TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS
IP Rating	IP20
Color	Black

Order information

Model	Product name	color	Inner box	Shipping box
YD-MPO-1U-72	MPO 1U optical fiber patch panel	black	1PCS	5PCS

More product pictures

each 1piece / box , good protection to box and internal fibers.
front dustproof panel is transparent, but flexible to take off. It is good for fiber protection and system safe.

YINGDA 72 Cores MPO Sliding Drawer Type Fiber Optic Patch Panel For Data Center Cabling 100G 400G

each patch panel can hold 4 pieces of MPO cassette modules, each modules can do 12fibers=6xLC duplex, or 24fibers=12xLC duplex.
it is also can use only for MPO ports for truck cable.
all modules use high quality LC duplex adapters without flange,it is high compact, datacenter system speical use.
each MPO cassette module can be taken off , and it is sliding type. Good to install and maintance.
front operation panel have 2 long holes for cable routing and in and out.

Yingda Offer all kinds of MPO MTP 1U 3U 4U patch panel, welcome inquiry at sales@yingdapc.com

Ratings & Review

Overall Rating

4.7

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

67%

4 stars

33%

3 stars

2 stars

1 stars

All Reviews

David Thompson

United Kingdom Jun 9.2026

Helpful (5)

We needed a high-density solution for our data center rack migration and the MPO/MTP patch panel enclosure was perfect. The sliding drawer design is a game-changer — our technicians can access and reconfigure connections without removing the entire panel. Build quality feels solid, the metalwork is clean with no sharp edges. We've ordered 20 units for our London facility and are planning to standardize on these across all our European sites. Great value compared to the branded alternatives we were using before.

Yuki Tanaka

Japan Jun 8.2026

Helpful (2)

We ordered these MPO-LC breakout cables for our 40G network in Tokyo. The OM3 multimode performance was good — we tested all channels with a light source and power meter and they were all within spec. The 0.9mm breakout design is compact and works well in high-density cassette enclosures. Good product overall.

P*e

South Korea Jan 31.2025

Helpful (5)

It was sent very quickly Service: Good service from my salesperson. And low IL ≤0.35dB
