YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers
  • name
  • name

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers

MOQ: 50pcs
Price: 0.2USD-100USD
Standard Packaging: 1pc/box
Delivery Period: 8-10days
Payment Method: T/T, Western Union, MoneyGram
Supply Capacity: 2000pcs/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
YDMPO-1U-96
Material:
Cold Rolled Steel
Color:
Black
Size:
444*340*44mm
Pack:
1pc/box
Max Capacity:
96cores
Cassette Quantity:
4pcs
Cassette Module Capacity:
24fibers
Adapter:
MPO Male/female, LC Duplex Adapter
Cable Ports:
>23ports At Back
Insertion Loss:
MPO<0.7dB, LC<0.2dB
Type:
Sliding Out Patch Panel
Dimension:
19inch Standard Size
Cable Entry Port:
4 Round Port With Rubber φ20mm
Highlight:

Fiber Distribution MPO Patch Panel

,

96fibrs MPO Patch Panel

,

High Density MPO Patch Panel

Product Description

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Management in Data Centers





MPO Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for data center and high density cabling system, it is large capacity and small size, good performance. It is 19inch standard size for rack mount optical distribution frame, suitable to use LC duplex couplers.

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers 0

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers 1

Features

  • Standards: IEC / EN 61754-7 (MPO connector) and TIA-568-B.1-7
  • Modular connection system: Factory pre terminated optical fiber connection components, any length and any optical fiber SM & mm, trunk cable and module box, easy installation, plug and play system solution
  • High density connection system: compact design, 12 core connector, up to 96 core optical fiber 1U rack mount
  • After factory pre termination and testing, the quality assurance and consistency exceed the demand of 10Gbit
  • Made of high quality Cold rolled steel sheet, with electrostatic spraying
  • Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover
  • Total front operation with cable clamps and routing area, large fiber management area
  • 2U,3U are available

Application



Machine rooms of data center and intranet



Product Detail



YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers 2

Fiber Management

1.Large reasonable fiber bend radius design, fiber management area in front of the box

2. Small holes for nylon tie or cable clamp fixing

3. Cable exit from both sides or bottom 2*big holes or 4*holes

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers 3

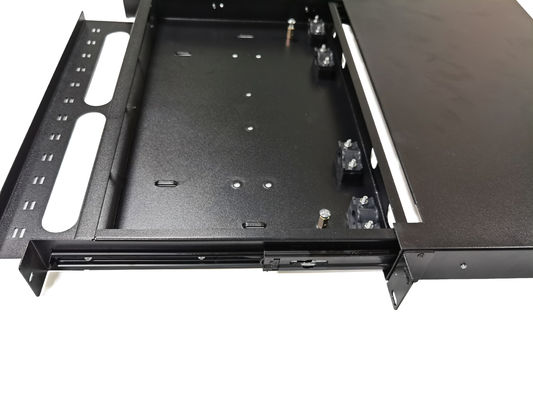

Sliding tray Open

Easy to operate when installation

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers 4



Order information



Model Product name color Inner box Shipping box
YD-MPO-1U-96 MPO 1U optical fiber patch panel black 1PCS 5PCS





More product pictures

  • each 1piece / box , good protection to box and internal fibers.
  • front dustproof panel is transparent, but flexible to take off. It is good for fiber protection and system safe.

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers 5YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Big Space Management in Data Centers 6

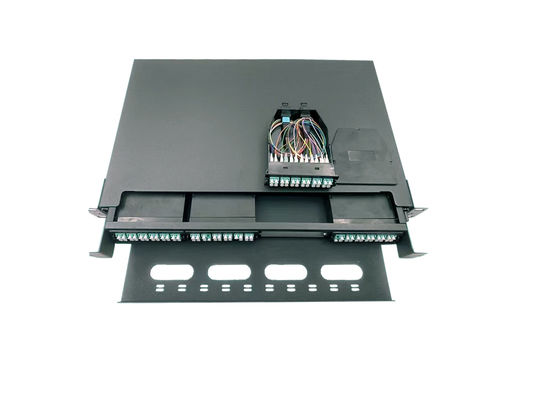

  • each patch panel can hold 4 pieces of MPO cassette modules, each modules can do 12fibers=6xLC duplex, or 24fibers=12xLC duplex.
  • it is also can use only for MPO ports for truck cable.
  • all modules use high quality LC duplex adapters without flange,it is high compact, datacenter system speical use.
  • each MPO cassette module can be taken off , and it is sliding type. Good to install and maintance.
  • front operation panel have 2 long holes for cable routing and in and out.



If need 3U MPO/MTP patch panel, please contact us for link.

Thanks.
