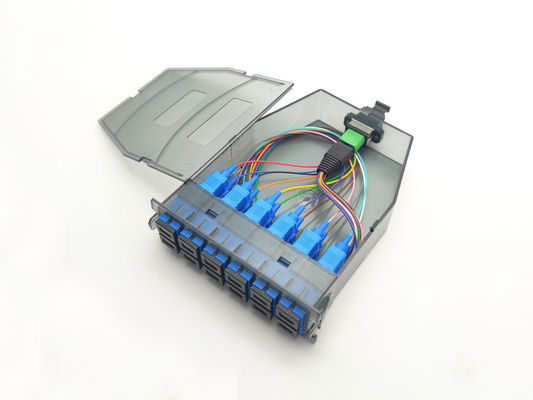

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication
  • name
  • name
  • name
  • name
  • name

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication

MOQ: 10pc
Price: 0.2USD-100USD
Delivery Period: 5-8days
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO CE
Model Number
no
Fiber Type:
OM3,OM4,SM/MM/OM3,OM2,OM1
Certification:
ISO,CE
Connector:
MPO,SC,ST,FC
Product Name:
MPO Cassette
Fiber Core:
8 Core,12core,24core
Return Loss (dB):
Standard ≤0.7dB
Dimension:
120*102*34
Color:
Transparent
Support OEM Service:
YES
Highlight:

Transparent MPO To SC Module

,

12 Fiber MPO To SC Module

,

Single Mode MPO To SC Module

Product Description

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication



YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 0YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 1



Features

Adopts high quality engineering plastics and Aluminum alloy material, with electrostatic plating

surface, outstanding in appearance and users friendly.

MPO face plate can be upgraded easily.

All the front ports are with mark no. , easy to identify.

Quick and easy installed, flexible in configuration and easy to management



How to insert cassette?

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 2

Product standard Configuration

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 3

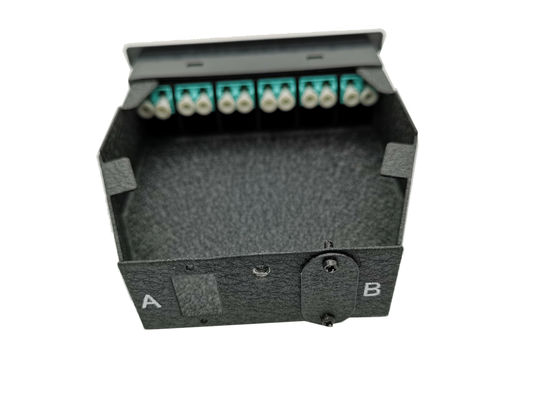

More pictures

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 4YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 5

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 6YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 7



MPO Connector Specification

Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300



LC SC FC fiber optic connector Specification

Fiber mode Single mode   Multi mode
Connector polishing Pc Apc Pc
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850





Product Dimension

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 8

Order information

PART NO. NAME COLOR PACK
YDMPO-12-CM 12core MPO cassette (empty box) Black 1pc
YDMPO-24-CM 24core MPO cassette (empty box) Black 1pc



Packing

YINGDA Plastic Transparent 12 Fiber MPO To SC Module Single Mode Simplex Adapter For Communication 9
