Fiber Optic Splitter Box
Created with Pixso. FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports

Brand Name: yingda
Model Number: FDB0216S
MOQ: 100 pcs
Price: 1.0USD-18.6USD
Delivery Time: 7-15days
Payment Terms: T/T, L/C, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO, CE, ROHS
Material:
PC+ABS
Waterproof:
IP65 Protection Level
Installation:
Wall Mount, Pole Mount, Aerial Mount
Cable Ports:
2 Cable Glands Or Mid Span Ports
Box Size:
200*250*72 Mm
Box Type:
24 Cores Single Fiber Optic Box
Plc Splitter:
1X16 Or 2pc 1x8 Blockless Splitter Or LGX
Color:
Black
Cable Exit:
16 Pcs 2*3mm Ftth Flat Drop Cable Box
Adapter Quantity:
16 Pcs SC APC Adapters
Packaging Details:
1pc/box, 10pcs/carton box
Highlight:

IP65 Fiber Optic Splitter Distribution Box

,

Outdoor Fiber Optic Splitter Distribution Box

,

Pole Mounted Fiber Optic Splitter Box

Product Description

FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Splitter Distribution Box Features

  • Total enclosed structure with key and buckles;
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging;
  • Outdoor wall mount, pole mount or aerial mount, protection level up to IP65;
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one;
  • Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance;
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation;
  • Compact size, large fusion capacity, 2x3m drop cable exit design with rubber seal.



Splitter Distribution Box Specification

Model FDB0216S
Dimension (A*B*C) /mm 250*200*72mm
Installation size (D*E) /mm 130*82
Max.Capacity 24cores (dual fiber)
Cable entry 2 uncut port:18mm
Cable exit 16 pcs drop cable ports 2*3mm
Splitter quantity 1x2, 1x4, 1X8, 1x16 mini splitter
Waterproof grade IP65
Material PC+ABS
Color Black



Splitter Distribution Box Standard Accessory:

Usual manual, expansion screws, buffer tube, uncut port pole/wall/aerial mount, sleeve, key, nylon tie

FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 0



FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 1

FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 2FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 3

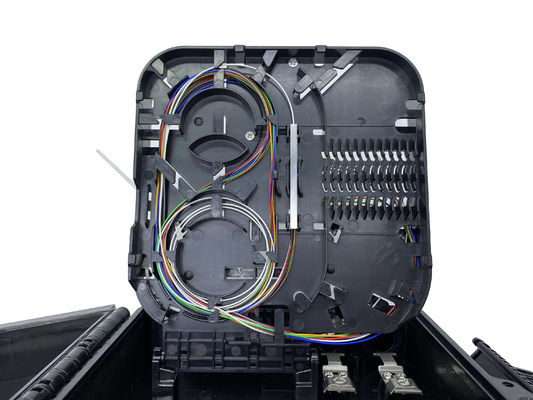

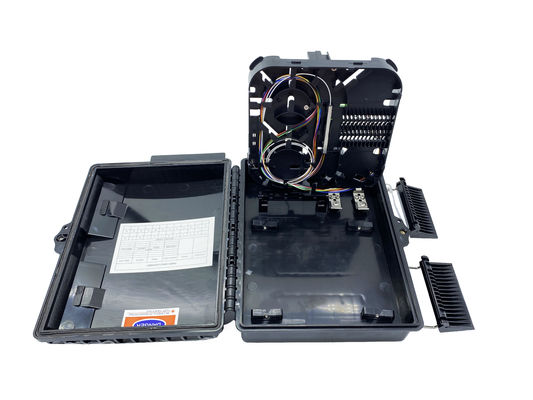

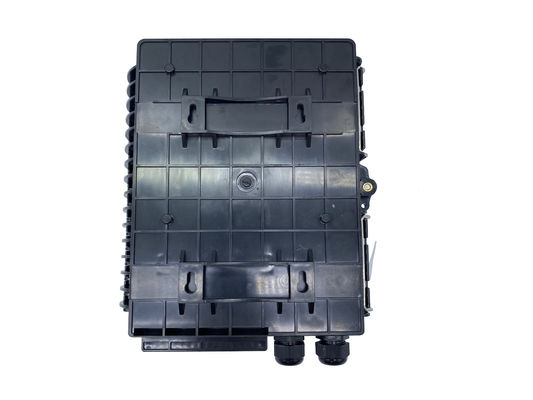

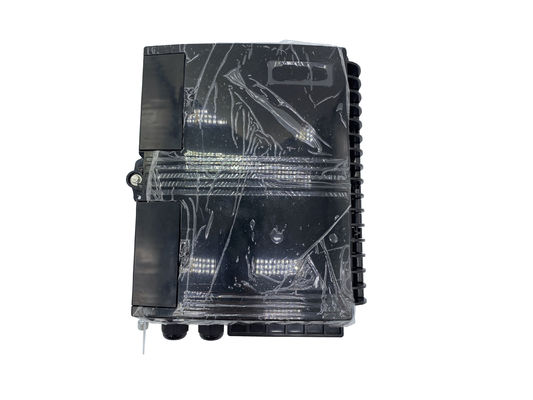

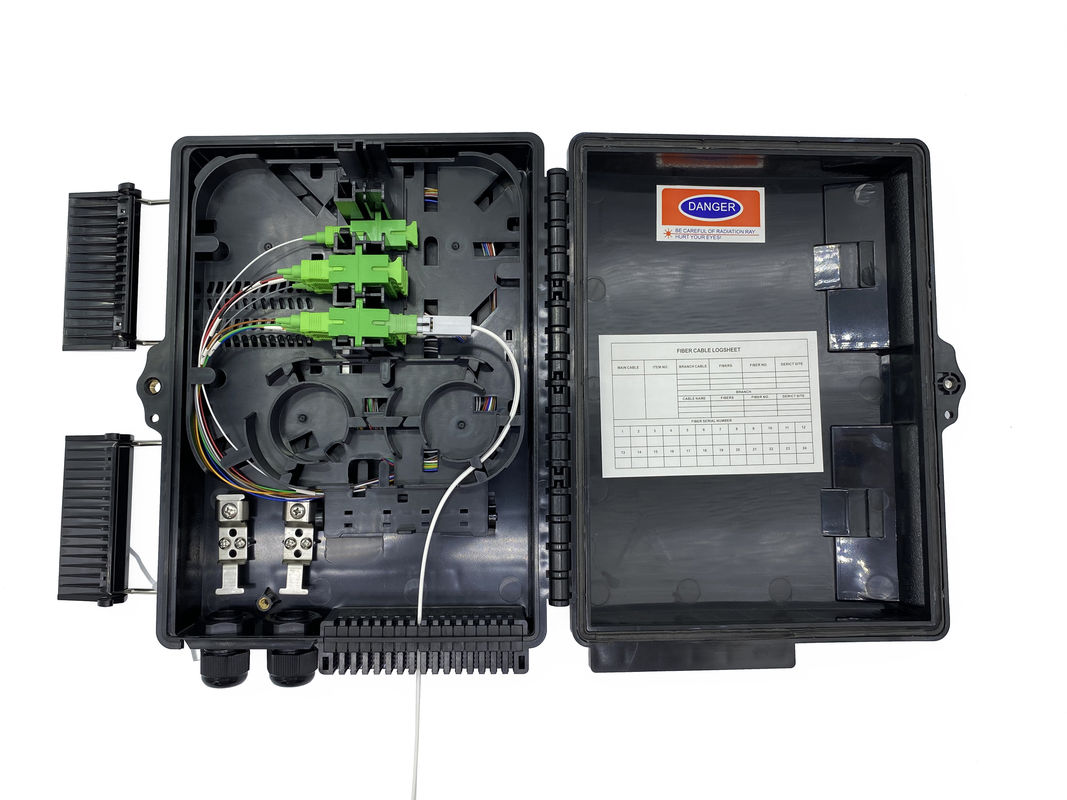

Splitter Distribution Box Product Details:



FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 4FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 5FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 6FTTH Pole Mounted Outdoor IP65 Fiber Optic Splitter Distribution Box Flat Drop Ports 7



1x16 Fiber Optic Splitter Box Wide Application

This box suitable for PLC splitter, SC adapters, Fast mechanical connector and FTTH drop cable, etc.
