FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable

MOQ: 100 pcs
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box, 10pcs/carton box
Delivery Period: 7-15days
Payment Method: T/T, L/C, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO, CE, ROHS
Model Number
FDB0216S
Material:
PC+ABS
Waterproof:
IP65 Protection Level
Installation:
Wall Mount, Pole Mount, Aerial Mount
Cable Ports:
2 Cable Glands Or Mid Span Ports
Box Size:
200*250*72 Mm
Box Type:
24 Cores Single Fiber Optic Box
Plc Splitter:
1X16 Or 2pc 1x8 Blockless Splitter Or LGX
Color:
Black
Cable Exit:
16 Pcs 2*3mm Ftth Flat Drop Cable Box
Adapter Quantity:
16 Pcs SC APC Adapters
Highlight:

16 Core Fiber Optic Splitter Box

,

IP65 Fiber Optic Splitter Box

,

Outdoor Fiber Optic Splitter Box

Product Description

FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



1x16 Fiber Optic Splitter Box Features

  • Total enclosed structure with key and buckles;
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging;
  • Outdoor wall mount, pole mount or aerial mount, protection level up to IP65;
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one;
  • Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance;
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation;
  • Compact size, large fusion capacity, 2x3m drop cable exit design with rubber seal.



1x16 Fiber Optic Splitter Box Specification

Model FDB0216S
Dimension (A*B*C) /mm 250*200*72mm
Installation size (D*E) /mm 130*82
Max.Capacity 24cores (dual fiber)
Cable entry 2 uncut port:18mm
Cable exit 16 pcs drop cable ports 2*3mm
Splitter quantity 1x2, 1x4, 1X8, 1x16 mini splitter
Waterproof grade IP65
Material PC+ABS
Color Black



1x16 Fiber Optic Splitter Box Standard Accessory:

Usual manual, expansion screws, buffer tube, uncut port pole/wall/aerial mount, sleeve, key, nylon tie

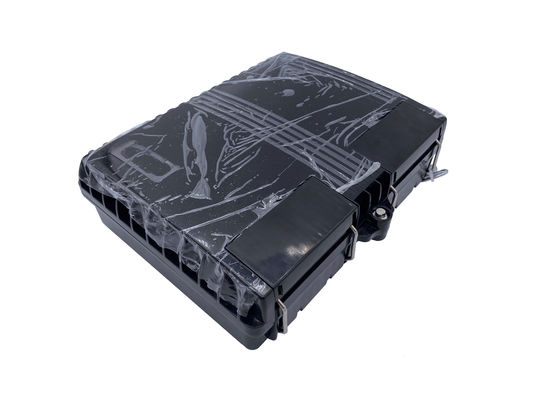

FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable 0

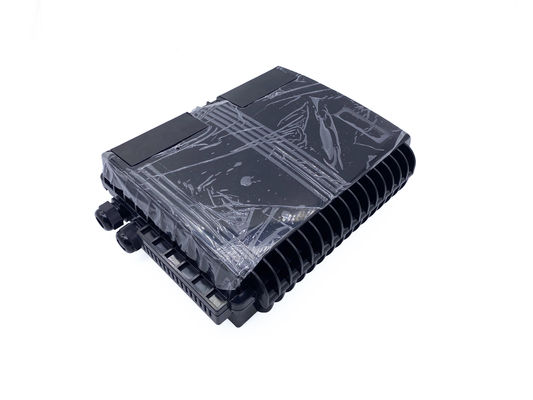

FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable 1FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable 2

1x16 Fiber Optic Splitter Box Product Details:

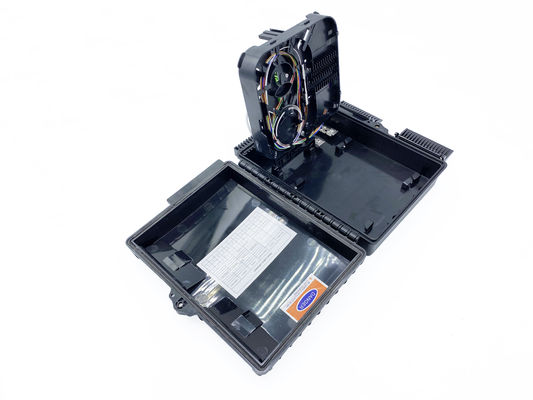

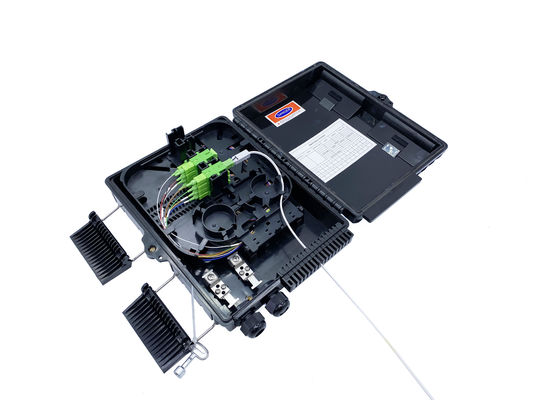

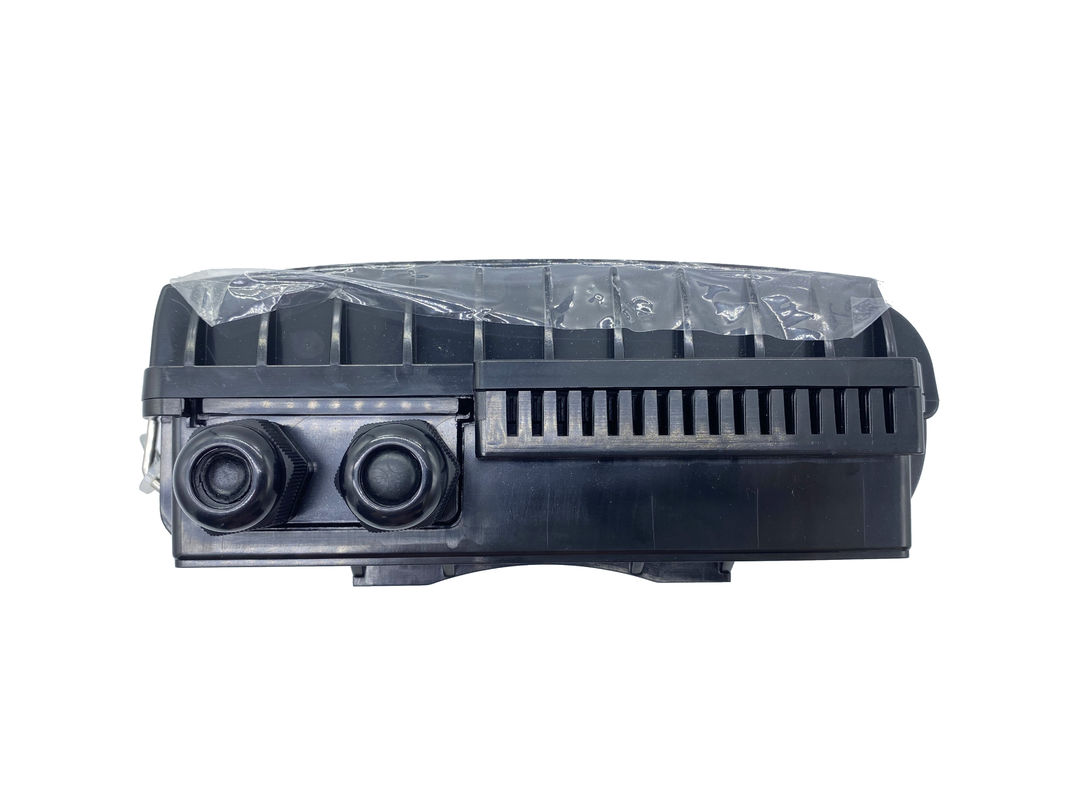

FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable 3FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable 4FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable 5FTTH Outdoor IP65 16 Core Fiber Optic Splitter Box 1x16 Mini Splitter SC Connector Falt Drop Cable 6



1x16 Fiber Optic Splitter Box Wide Application

This box suitable for PLC splitter, SC adapters, Fast mechanical connector and FTTH drop cable, etc.



Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

I
IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port
Guyana Mar 20.2024
Helpful (2)
We have cooperated with the company for five years and are satisfied with both its products and services.
1
1*x
Chile Aug 23.2023
Helpful (9)
Good quality, IP65 waterproof. will continue to cooperate with YINGDA
D
D*e
Venezuela Sep 26.2022
Helpful (24)
All connectors insert loss < 0.3db, and the quality is better than other suppliers. I recommend this supplier to everyone, very professional!
Tags:

splitter distribution box,

optical distribution box,

fiber optic closure
