ADSS Cable Installation Kits FSU-D400 16inch Round Shape PP Anti UV

Name: ADSS Cable Installation Kits FSU-D400 16inch Round Shape PP Anti UV
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FSU-D400
Price: 4.14 USD
Availability: InStock

Brand Name:	Yingda
Model Number:	FSU-D400
Price:	0.14USD-10USD

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Industry Type:

FTTx Solutions

Product Name:

Fiber Storage Units

Installation:

Aerial Mounted, Pole Mounted

Cable Diameter:

Suitable For Outdoor Cable 10.0mm

Cable Length:

Max. 12 Meters

Features:

Anti-UV, High Strength

Channel Size:

45*45mm

Internal Diameter:

300mm

Application:

Outdoor Aerial Overhead Fiber Optic Cable

Material:

Plastic ABS+PC

Highlight:

Round Shape Cable Installation Kits

ADSS Cable Installation Kits

16inch Cable Installation Kits

Product Description

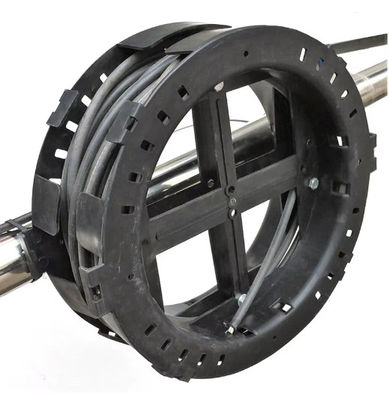

Fiber Optic Storage Bracket FSU-D400 16 Inch Round Shape PP Outdoor Pole Aerial Mount

Fiber Storage Units (FSU-D400-16inch-round) are used to storge mounting of cable. It can be used overhead on wire or mounting on pole or wall, FSU-D400 are constructed from PP material and mix uv material.
ADSS Cable Installation Kits FSU-D400 16inch Round Shape PP Anti UV 0

Cable Storage Bracket FSU-D400 Features

Cable can be storage alone inside channel;
The channel is designed to tie the cable mounting on it, ice and water leaf was also be designed;
It can be hanger on steel wire with accessories (bolts, nuts, washers);
Cable can be easy to tie, wrap in slot of channel for securing Made of high strength engineering plastic PP material, Anti-UV

Cable Storage Bracket FSU-D400 Specification

Model	FSU-D400
Channel (Width*Depth)	45x45mm
Dimension	390x418x50mm
Internal diameter	300mm
MINIMUM BEND DIAMETER	20mm
TEMPERATURE	-30~+60℃
Net Weight	400g
Storge cable length	12meter (D.10mm)

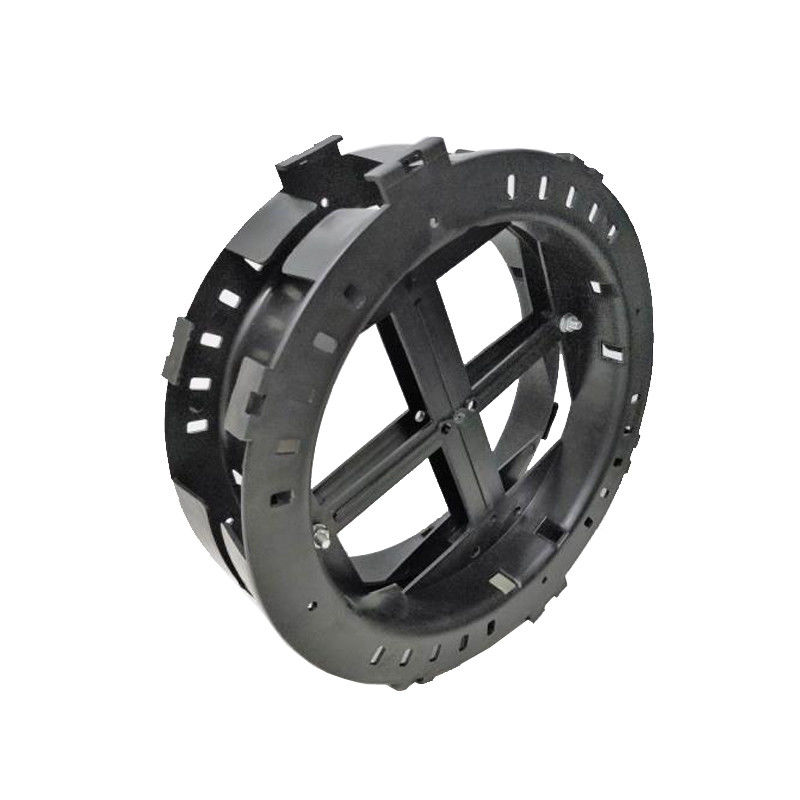

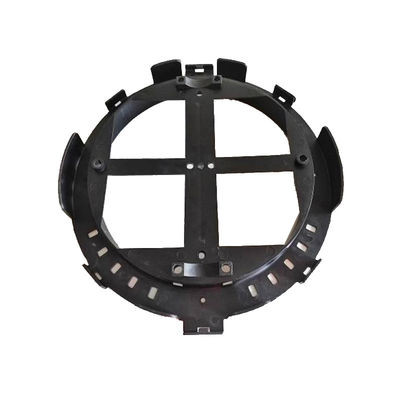

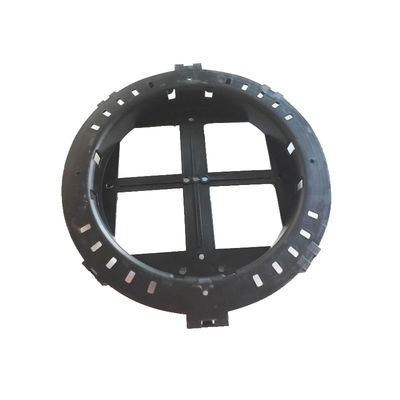

Cable Storage Bracket FSU-D400 Structure
ADSS Cable Installation Kits FSU-D400 16inch Round Shape PP Anti UV 2
Cable Storage Bracket FSU-D400 for Cable diameter

It's suitable for outdoor cables 10.0mm, and storge cable length is 12meters.

Cable Storage Bracket FSU-D400 Installation

Aerial Mounted with nylon ties or SS hangers Pole mount with SS steel bands

Cable Storage Bracket FSU-D400 Similar Type Recommend:

Both type are oval shape, and the left is model FSU-D500, the right is model FSU-D600.

Cable Installation Kits FSU-D400 Application
Telecommunication Networks
Local Area Networks
CATV Networks
widely used in outdoor FTTH or Base station use

Cable Installation Kits FSU-D400 Packing and Delivery
ADSS Cable Installation Kits FSU-D400 16inch Round Shape PP Anti UV 8

For more questions, please inquiry at :

Email: sales@yingdapc.com
WhatsApp:+86 18688982406
