FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black
  • name
  • name
  • name

FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black

MOQ: 100pcs
Price: 0.14USD-10USD
Delivery Period: 2-5days
Payment Method: T/T
Supply Capacity: 50000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO,CE
Model Number
FTTH-C380
Type:
Cable Tension Clamp
Dimension:
140*102*24mm
Cable Diameter:
2-6 Mm
Application:
Telecommunication
Color:
Black
Material:
Nylon PA66
Highlight:

FTTH Drop Cable Wire Clamp

,

Round Plastic Cable Wire Clamp

,

Wire Clamp Cable Installation Kits

Product Description

FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black



The round drop wire clamp is composed of a mandrel shaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon PA66 material which ensure long life sapn like 25 years.



The device is installed on both poles and buildings for connecting subscribers, if use two clamps, suspension is carried out on the intermediate supports. This special design allows the anchoring of the cable on the end without any radial pressure on the cable and provide additional protection for the FTTH cable.



Round Plastic Cable Clamp Features

  • Dead-ending of round drop cable on poles and buildings
  • Suspension of drop cable at intermediate poles by using 2 drop clamps
  • Cable diameter 2-6mm ftth round or flat cable deploying



Round Plastic Cable Clamp Specification

Model FTTH-C380
Dimension 140*102*34mm
Channel size(Width*depth) 6*20mm
Material Nylon PA66, anti UV
Color Black
Breaking load 1.5KN
Operating temperature -40 - +60℃
Net weight 60g

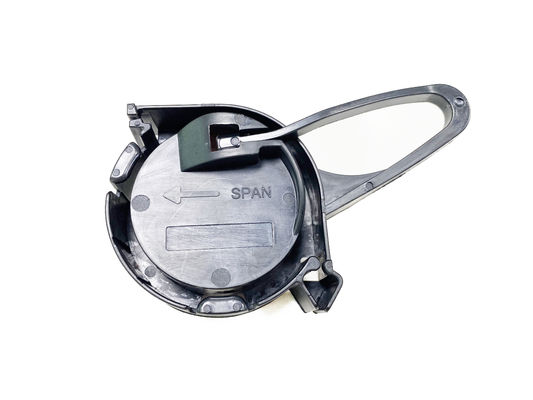

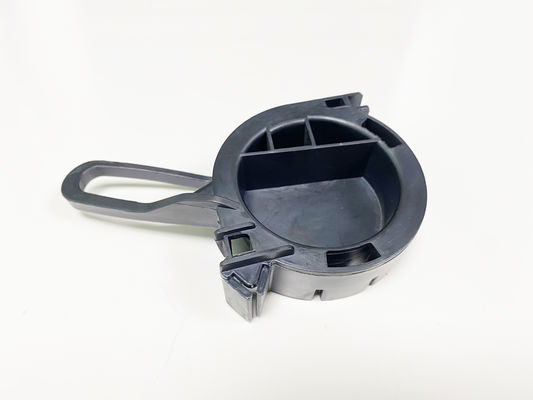

Round Plastic Cable Clamp Details



FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black 0FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black 1FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black 2

FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black 3

FTTH Drop Cable Wire Clamp Round Plastic Cable Installation Kits 2-6mm PA66 Black 4
