ODWAC-22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Cable Installation Kits

ODWAC-22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Cable Installation Kits

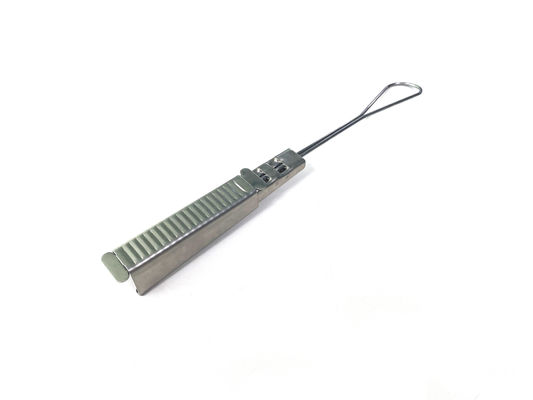

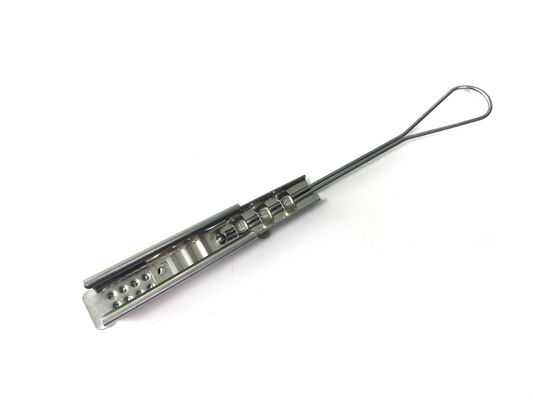

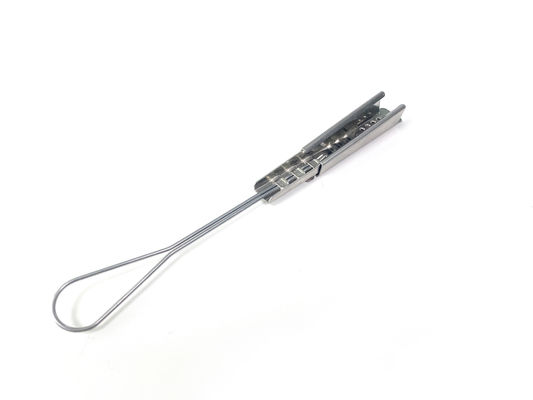

The drop wire clamp ODWAC series is composed of a body shell, a wedge and a shim, all made of stainless steel, which ensure good corrosion resistant performance, good insulating property and long life service. The solid wire bail (body) is crimped to the wedge, and the clamp furnished with a perforated gasket which increases the tension load on drop clamp without cable slip and damage,supply a long time usage life.

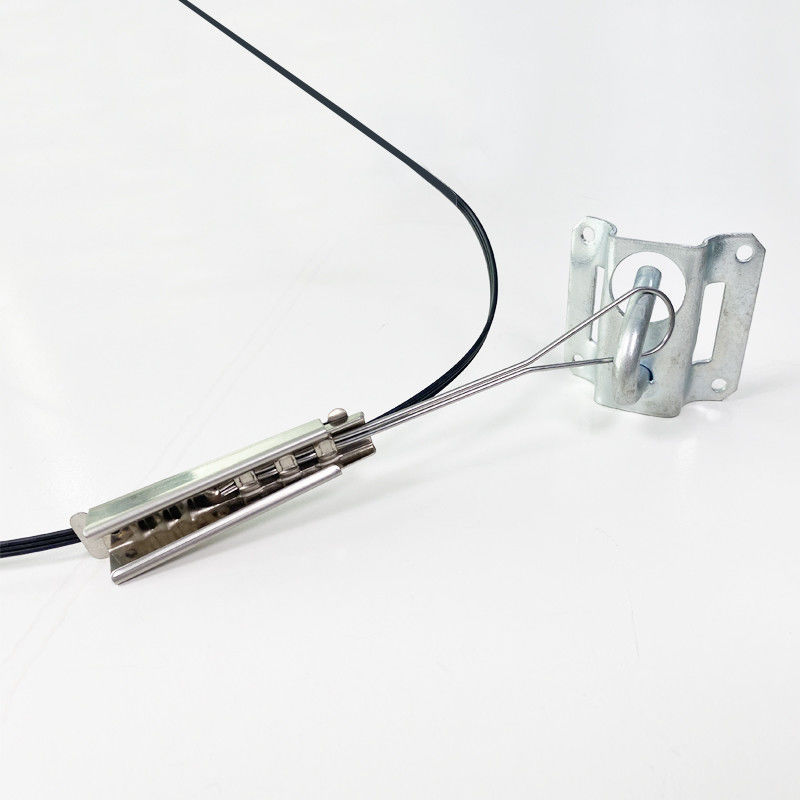

The stainless steel hook can be used with drive hooks,pole brackets,FTTH brackets and other fiber optic cable fittings or hardware.

Features

• Entire clamp made of corrosion resistant stainless steel
• Suitable for all major telephone companies and the telecommunications industry
• Maximum breaking load of 555 lb
• Compact size, light weight
• Cost-effective, single-piece design
• Simple and fast installation, requiring no tools
• Efficient cable grip by conical wedging
• Manual adjustment of the lowest point of the cable by blocking the wedge on remote position
• Mounting on all pole line hardware with open or closed eye and min. Ø20mm
• Suitable for flat cable with a thickness of less than 6mm and a width of less than 13mm

Application

The ODWAC-22 drop wire clamp is ideal for outdoor network installation and laying, stretching and fixing drop wire and optical cables on poles or building exterior walls.

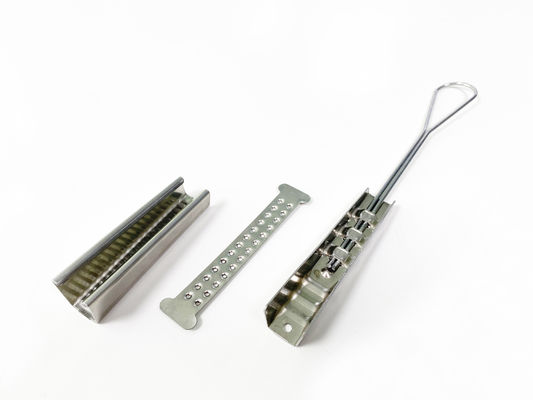

Fiber Clamp Structure

Part 1: Wedge, size is 67.5*19mm

Part 2: Shim, size is 81*17mm

Part 3: Body Shell is 80*109*20mm

Wedge Design

The card slot is designed with a circular arc shape,which is not easy to harm during use.

Tensioner

The tensioner design adopts an upward concave and downward convex stamping fixation method, which is durable and has a tensile strength  of over 1.2KN.

The non planner design on the back can better coordinate with the gasket to fix the optical cable, ensuring stability and reliability.
