ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV

Name: ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FSU-D500
Price: 4.14 USD
Availability: InStock

Brand Name:	Yingda
Model Number:	FSU-D500
MOQ:	1pc
Price:	0.14USD-10USD
Delivery Time:	5-8working days
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Industry Type:

FTTX Solution

Product Type:

Cable Storage Frame

Installation:

Aerial Mounted, Pole Mounted

Cable Diameter:

Suitable For Outdoor Cable 10.0mm

Cable Length:

Max. 12 Meters

Features:

Anti-UV, High Strength

Channel Size:

40*40mm

Internal Diameter:

300mm

Material:

High Quality PP

Application:

Outdoor Aerial Overhead Fiber Optic Cable

Packaging Details:

30pcs per carton

Supply Ability:

20000pcs per month

Highlight:

PP Anti UV Storage Bracket Unit

ADSS Cable Storage Bracket Unit

16inch Storage Bracket Unit

Product Description

Fiber Optic Storage Bracket FSU-D500 19 Inch Oval Shape PP Outdoor Pole Aerial Mount

Fiber Storage Units (FSU-D500 19inch oval shape) are used to storge mounting of cable. It can be used overhead on wire or mounting on pole or wall, FSU-D500 are constructed from PP material and mix uv material.

Cable Storage Bracket FSU-D500 Features

Cable can be storage alone inside channel;
The channel is designed to tie the cable mounting on it, ice and water leaf was also be designed;
It can be hanger on steel wire with accessories (bolts, nuts, washers);
Cable can be easy to tie, wrap in slot of channel for securing Made of high strength engineering plastic PP material, Anti-UV

Cable Storage Bracket FSU-D500 Specification

Model	FSU-D500
Channel (Width*Depth)	40x40mm
Dimension	365x502x40mm
Internal diameter	300mm
MINIMUM BEND DIAMETER	20mm
TEMPERATURE	-30~+60℃
Net Weight	430g
Storge cable length	12meter (D.10mm)

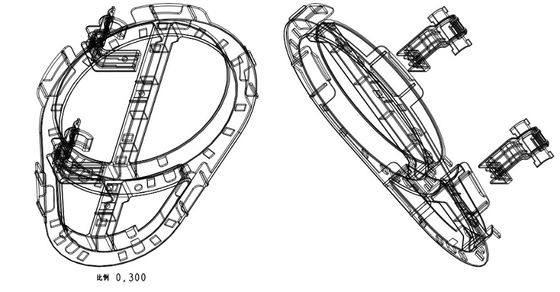

Cable Storage Bracket FSU-D500 Structure

ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV 0

Adss Fiber Optic Cable Storage Bracket FSU-D500 Installation Method

1. Aerial Mounted

There are Stainless hanger (material 304) and Plastic hanger (material pp) for optional

ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV 1

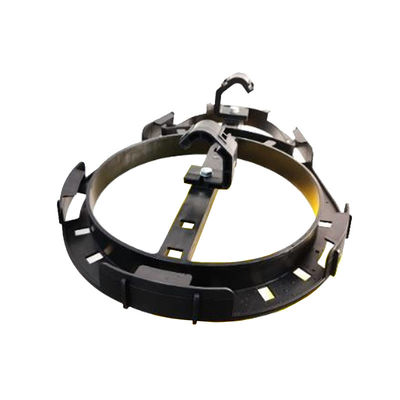

Stainless hanger

ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV 3

Plastic hanger

2. Pole Mounted

ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV 5

Aerial Optical Fiber Cable Storage Unit FSU-D500 Package and Delivery

ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV 7

ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV 8

Other products Recommended by YINGDA FTTX Solution Provider

ADSS Cable Storage Bracket Unit FSU-D500 16inch Round Shape PP Anti UV 9

Outdoor stainless steel Pastic Cable Installation Kits 144 Cores Heat Shrink

cable storage Tension Clamp Dome Fiber Optic Splice Closure
