J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round

MOQ: 100pcs
Price: 0.14USD-10USD
Delivery Period: 2-5days
Payment Method: T/T
Supply Capacity: 50000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO,CE
Model Number
YD-JH0508
Model Number:
J Hook Suspension Clamp
Standard Or Nonstandard:
Standard
Application:
Suspension Pole Or Aerial Mount
ADSS Cable Diameter:
5-8mm
Function:
Distribution Fiber System (FTTH)
Load Retention Capability:
100KG
Material:
Stainless Steel +Rubber
Breaking Load:
3.8KN
Surface Treatment:
Galvanization
Dimension:
135*80*35 Mm
Highlight:

ADSS J Type Suspension Clamp

,

ADSS fiber optic cable clamp

,

J Type fiber optic cable clamp

Product Description

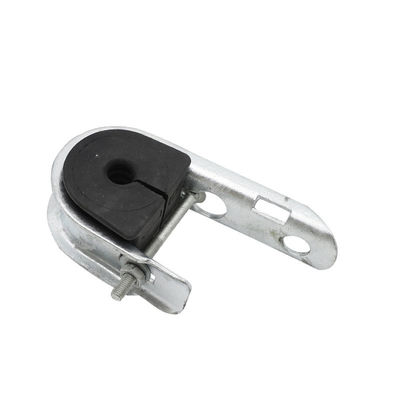

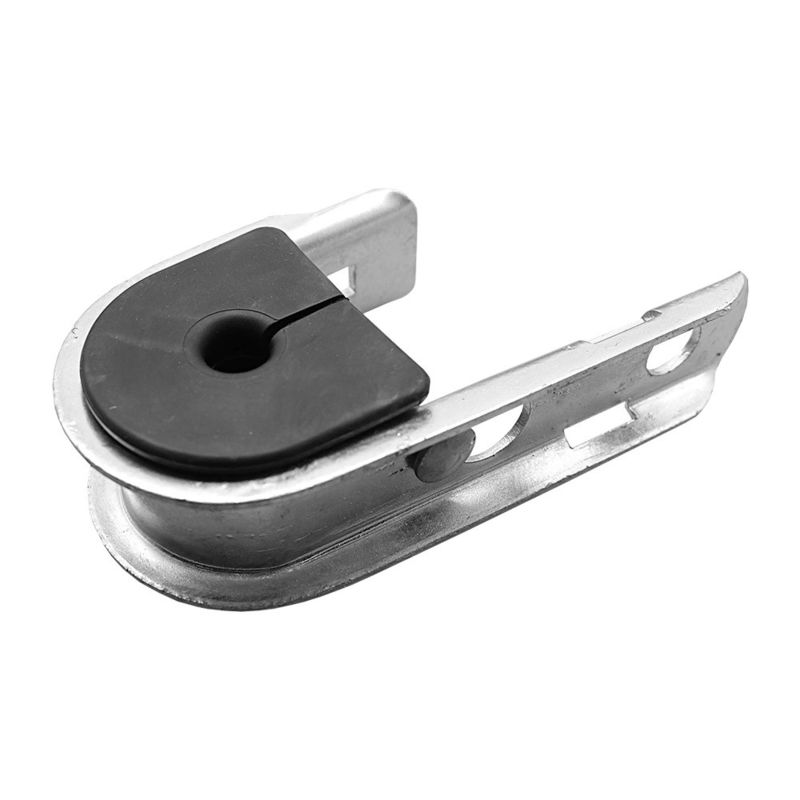

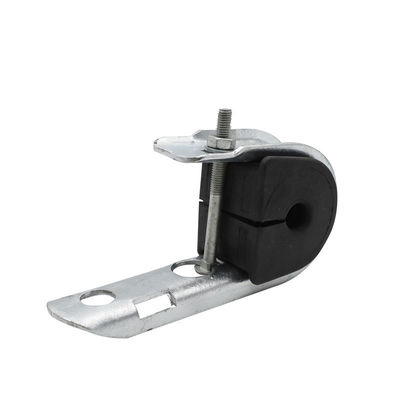

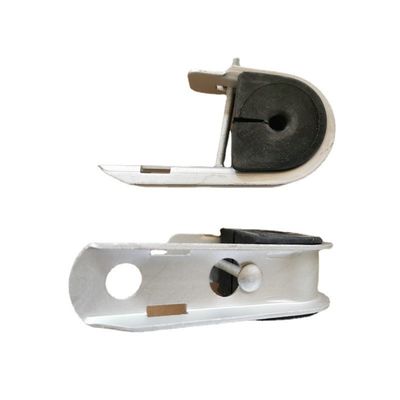

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round Shape





Suspension clamps designed to suspend ADSS round optical fiber cable during construction of transmission line. The clamp consistsof plastic insert, which clamp the optical cable without damagdamageide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.

The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced form stainless steel materials according to you request.

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 0

J Hook Clamp Features

  • Main body stainless steel, long last and durable
  • Neoprene inserts is changeable according to different cable size



J Hook Clamp Specification

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 1
Model Dimension Material Cable Diameter Break Load Net Weight
YD-JH0508 135*80*35mm TPR+GS 5-8mm 3.8KN 161g
YD-JH0812 135*80*35mm TPR+GS 8-12mm 3.8KN 158g
YD-JH1015 135*80*35mm TPR+GS 10-15mm 3.8KN 158g
YD-JH1520 135*80*35mm TPR+GS 15-20mm 3.8KN 156g



J Hook Clamp Application

Outdoor installation on the telecommunication equipment between the buildings and industrial constructions to fix and protect optical cables.



J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 2J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 3



J Hook Clamp Package Information

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 4J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 5

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 6J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round 7
