YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box

MOQ: 1pc
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc / carton box, 10 pcs / master box
Delivery Period: 5-8days
Payment Method: T/T, Western Union
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO, ROHS, SGS
Model Number
FDB0216L
Material:
ABS+PC
Color:
White/Grey
Dimension:
306*237*116mm
Application:
Ftth Splitter Box
Installation Method:
Wall Mount, Pole Mount Enclosure
Box Type:
Fiber Optic Distribution Box
Splitter Qty:
2pcs 1:8 Splitter Or 1pc 1:16 Splitter
Cable Outlet Port:
16pcs Round Rubber Ports For Drop Cable
Adapter:
16 Pcs SC Adapter
Use For:
Indoor And Outdoor
Waterproof:
IP65
Highlight:

IP65 Fiber Splitter Distribution Box

,

Waterproof Fiber Splitter Distribution Box

,

24 Ports Fiber Splitter Box

Product Description

FDB0216L Fiber Distribution Box

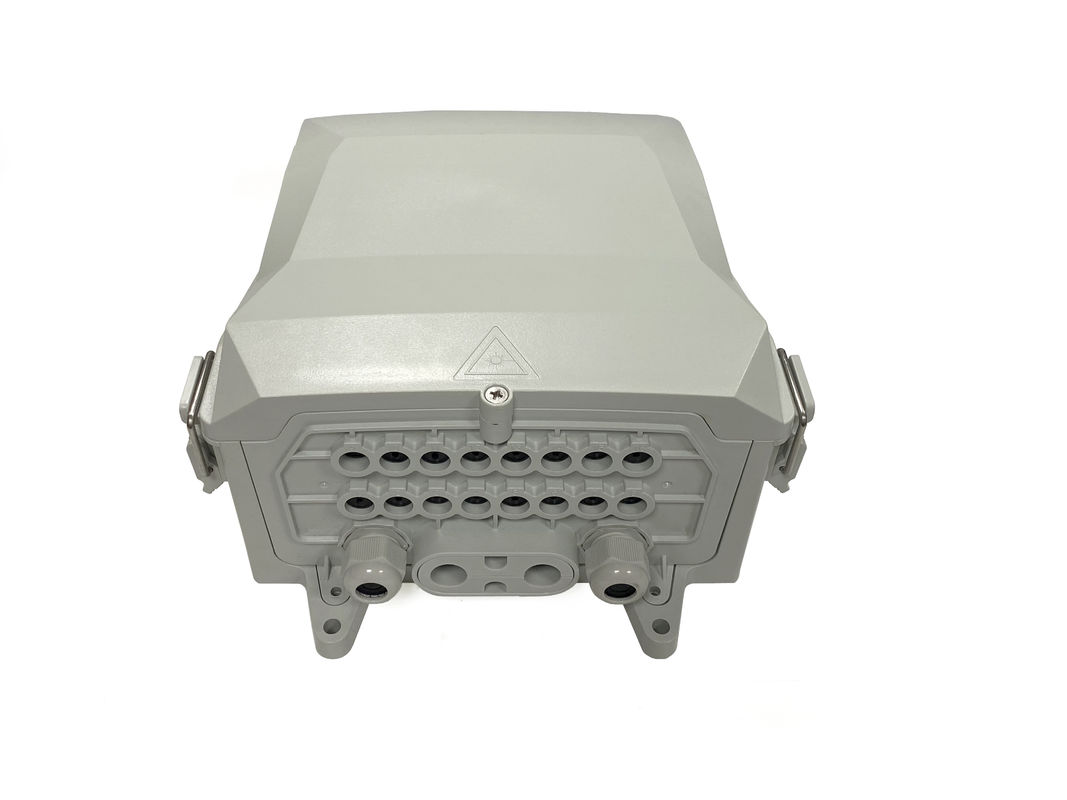

YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 0YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 1

Main sell point:

This fiber optic distribution box use the same main body and cable inputs, but cable outputs can do various types:

Round Drop Cable Ports, Mini SC Adapter, Opti-Tap Mini SC Adapter, Waterproof Fast Connector Exit etc.

Easy to installation, the adapter panel can be removable.

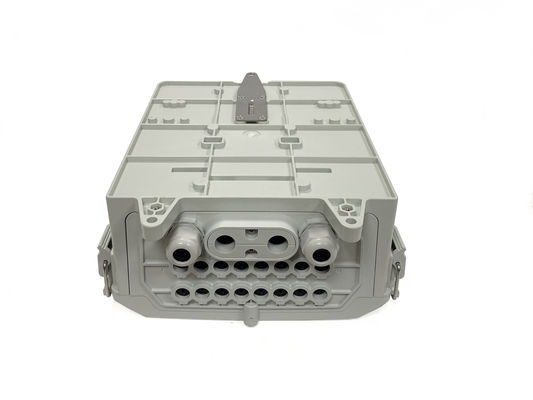

YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 2YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 3YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 4





Features

  • Box is with small special lock with 2 clips and 1 screw rod;
  • High strength engineering plastic, whole box is enclosed with waterproof circle, protection class IP65;
  • Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
  • 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix and winding,both sides with adapter holders;
  • All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
  • Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
  • Top cover with laser mark, and large space for logo or wiring diagram printing.
  • FTTH outdoor wall mounted, pole mount,aerial mount;
  • It is applicable for outdoor cables or indoor soft cable;
  • The box can use for a minimum period of 20 years;



Top cover with laser mark, and large space for        2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix

logo or wiring diagram printing.                                   and winding,both sides with adapter holders​



YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 5  YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 6

YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 7YINGDA IP65 Grey / White Fiber Splitter Distribution Box 8 - 24 Ports Fiber Splitter Box 8





Application

  • FTTH access network
  • Telecommunication network
  • CATV networks
  • Data communications network
  • Local area networks

Specification

Model FDB0224L
Dimension 306*237*116mm
Adapter qty 16cs SC simplex coupler with flange
Splitter qty and type 2pcs 1:8 splitter or 1pc 1:16 splitter
Max. Capacity 24 cores single fiber
Minimum fiber bending ≥30mm
Cable inlet 1 mid span, 2pcs PG13.5 cable glands
Cable outlet 24pcs round rubber ports for drop cable
Color Grey, black
Protection grade IP65





Standard accessory

expansion screws,metal key,nylon tie, sleeve,buffer tube



Product Details

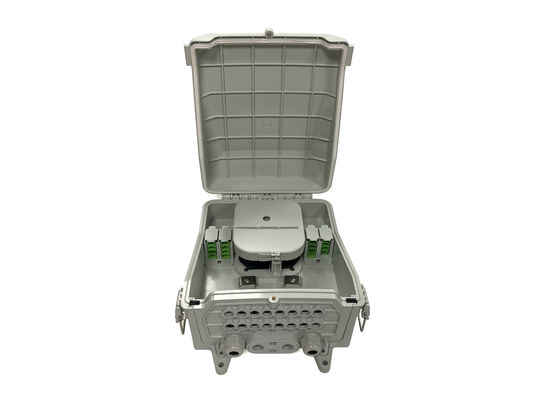

3 Layers inner parts: adapter plate /   fusion splice tray / fiber storage and management area





Package information

Packing 500*450*400MM
Weight 20kgs
Quantity 10 pcs/box
