Fiber Optic Splitter Box
Created with Pixso. FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use
Name
  • Name
  • Name
  • Name
  • Name

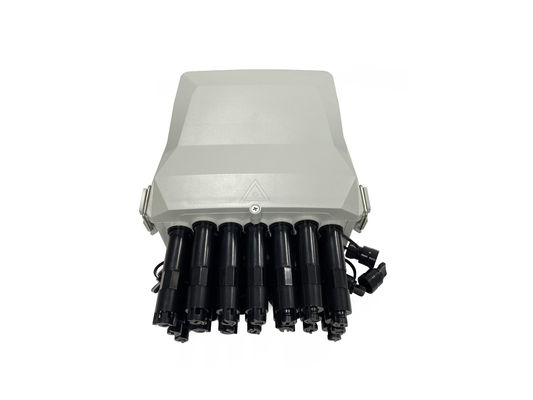

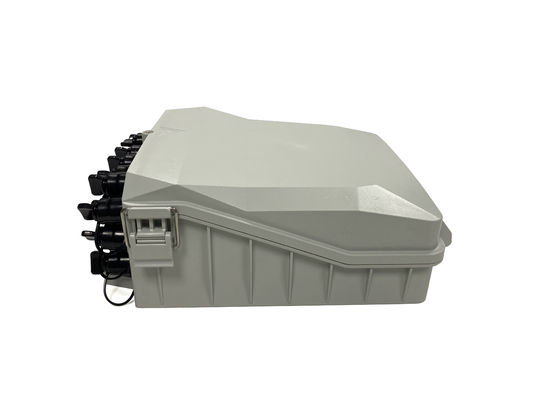

FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use

Brand Name: yingda
Model Number: FAT-16L
MOQ: 1pc
Price: 1.0USD-18.6USD
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO, ROHS, SGS
Material:
ABS+PC
Color:
White/Grey
Dimension:
306*237*116mm
Application:
Indoor Or Outdoot
Installation Method:
Wall Mount, Pole Mount Enclosure
Box Type:
Fiber Optic Distribution Box/splitter Box
Feature:
Adapter Panel Removable
Cable Outlet Port:
Max. 24pcs Fast Connector Waterproof Connector
Waterproof:
IP65
Adapter:
16pcs SC Adapter
Packaging Details:
1 pc / carton box, 10 pcs / master box
Supply Ability:
5000pcs per month
Highlight:

16 Ports Fiber Optic Splitter Box

,

Waterproof Fiber Optic Splitter Box

Product Description

FAT 16L Fiber Distribution Box

FAT-16L Optical Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system,maximum 16 households end termination.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building. Especially the bottom plate and the front cable ports panel is changeable to be round drop cable ports, mini sc adapters,  opti-tap sc adapters, or sc connectors with waterproof plug as per real construction needs.





FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 0FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 1FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 2





Features



Main sell point:

This fiber optic distribution box use the same main body and cable inputs, but cable outputs can do various types:

Round Drop Cable Ports, Mini SC Adapter, Opti-Tap Mini SC Adapter, Waterproof Fast Connector Exit etc.

Easy to installation, the adapter panel can be removable.

FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 3FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 4





Top cover with laser mark, and large space for        2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix

logo or wiring diagram printing.                                   and winding,both sides with adapter holders​



FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 5  FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 6





Application

  • FTTH access network
  • Telecommunication network
  • CATV networks
  • Data communications network
  • Local area networks

Specification

Model FDB0224L
Dimension 306*237*116mm
Adapter qty 16cs SC simplex coupler with flange
Splitter qty and type 2pcs 1:8 splitter or 1pc 1:16 splitter
Max. Capacity 24 cores single fiber
Minimum fiber bending ≥30mm
Cable inlet 1 mid span, 2pcs PG13.5 cable glands
Cable outlet 24pcs round rubber ports for drop cable
Color Grey, black
Protection grade IP65





Standard accessory

expansion screws,metal key,nylon tie, sleeve,buffer tube



FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 7

Product Details

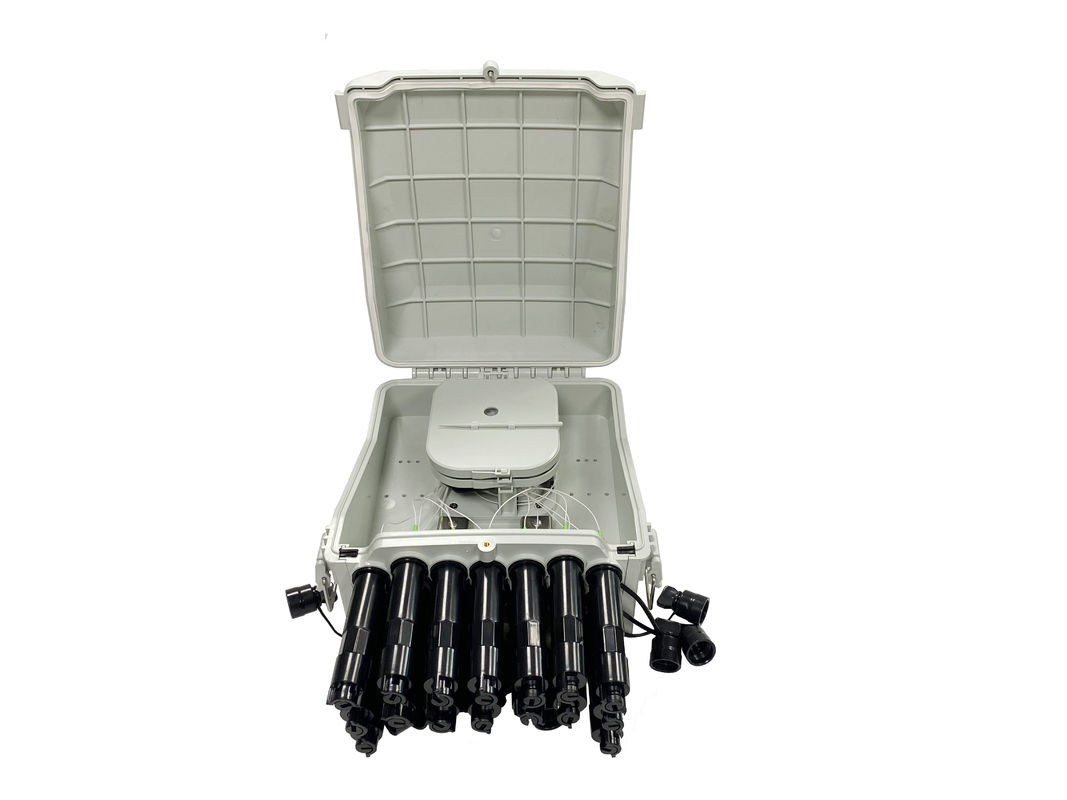

3 Layers inner parts: adapter plate /   fusion splice tray / fiber storage and management area

FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 8FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 9FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use 10





Package information

Packing 500*450*400MM
Weight 20kgs
Quantity 10 pcs/box





Pls click here to get more information!!!!
