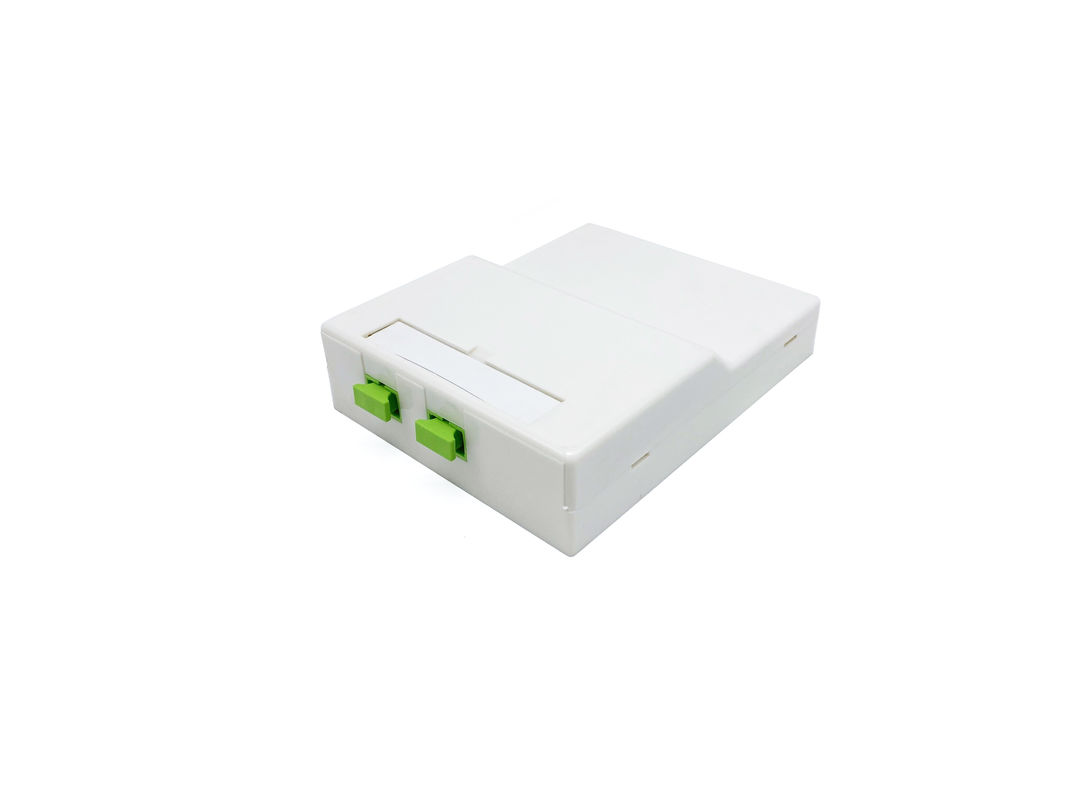

2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network

MOQ: 500pc
Price: 0.18USD-4.29USD
Standard Packaging: 100pcs/box
Delivery Period: 7days
Payment Method: T/T, L/C, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FTB86Y
Material:
ABS
Color:
White
Max Capacity:
2core
Fiber Type:
Singlemode Multimode
Dimension:
110*80*27mm
Adapter:
2 SC Or LC Duplex
Cable Type:
Indoor Cable Or Flat Cable
Application:
Ftth Indoor Network
OEM Service:
Support
Operating Temperature:
-10~+65°C
Highlight:

2 SC Fiber Optic Termination Box

,

Fiber Optic Termination Box For FTTH

Product Description
FTB86Y Fiber Wall Outlet



The optical rosette acts as a termination point of the optical network, it use direct connection or fusion splice in a
pre-termination pigtails. It can be installed on the wall, and adapt variety of optical connection styles LC/SC, maximum 2cores.
2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 02 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 1


Specification


ModelFTB86Y
Dimension (H*W*D)110*80*27mm
Max.Capacity2 core (single fiber)
Cable typeFTTH Flat/ indoor cable
Adapter2SC
Colorwhite
MaterialABS
Protection levelIP20
impact protectionIK01
Fiber typesingle mode & multimode
Operating temperature-10~+65°C
Guarantee12 months
Standards

Degree of protection: IEC 60529;
Temperature variation: IEC 61300-2-22;
Telcordia GR-771.



Sells points:
The box is a special design, bottom entry cable, front exit cable,is made of ABS high quality engineering plastic, high strength, long stability, dust proof, flame retartant material available on request.

2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 2

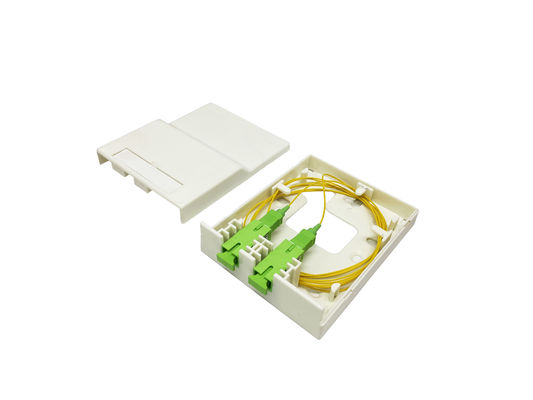

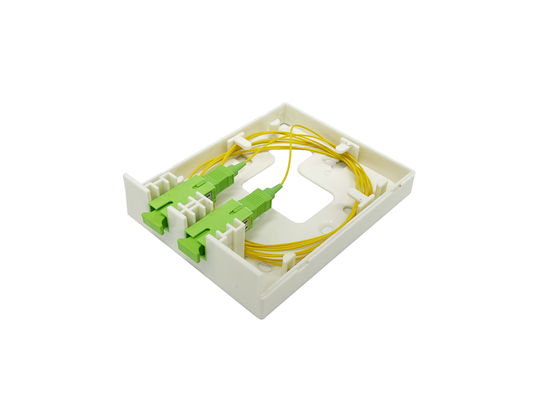

FTB86Y ftth nap box fully load with 2pcs SC/APC optical fiber pigtails G657B3 LSZH0.9mm 9/125um yellow 1.5meter loose tube, and 2pcs SC/APC adapters without flange.
2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 3
The box use brand new ABS plastic, white color, total enclosed box with clips at both sides, easy to open and close, no need speical tools.
2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 4
At top of the box, there is logo print reserved position with paper block if no need, and we can open 2 screws to fix the cover and bottom to make it more safe, then without screw driver, can not open the box by hand. details pls see above picture.
2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 5

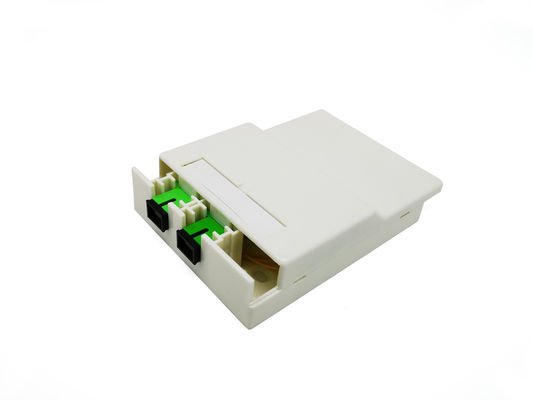

The box front is for adapters exit, only insert the pigtails or patch cord in, then can connected. standard type or shutter type both ok.

2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 6

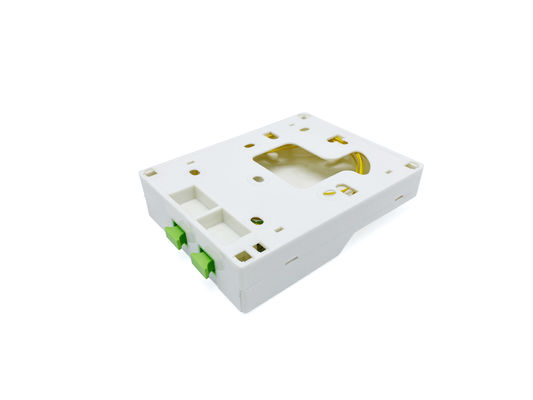

The cable enter the box from the bottom middle hole or small square holes at the corners, there is special space for cable routing. Which make it more clean after installation, no cable will be seen by human eye.

2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 7
if on field installation use mechanical splicer, we can fix a holder at the 4 holes around the big hole in the middle. There are many wall mounting holes design at the bottom plate to make installation easier.

Application

FTTH internal environment wall mount

Standard accessories

2pcs fixing screws, 2pcs screws for closing the cover, 2sleeve, heat shrink sleeve slot(optional), adapter(optional), pigtail(optional)

Buy it together:
Adapter:https://www.fibreopticbox.com/sale-4042492-fiber-optic-flange-adapter-sc-apc.html
Pigtail:https://www.fibreopticbox.com/sale-36863216-sc-apc-fiber-optical-pigtails-lszh-900um-sm-ceramic-ferrule-for-splitter-box.html
2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 8
2 SC Single/Multimode Fiber Optic Termination Box For FTTH Indoor Network 9
