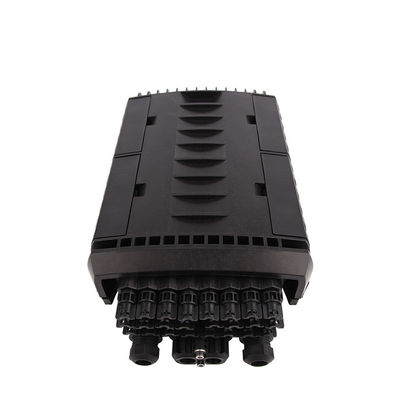

Outdoor IP68 Waterproof FTTH Network Box 24 Ports Fiber Optic Splitter Box

Name: Outdoor IP68 Waterproof FTTH Network Box 24 Ports Fiber Optic Splitter Box
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FDB0224F
Price: 9.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FDB0224F
MOQ:	100pcs
Price:	1.0USD-18.6USD
Delivery Time:	1 week
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Features:

Uncut Port For Feeder Cable

Material:

PP+GF

Dimension:

380*245*155mm

Max. Capacity:

48cores

Cable Entry:

1mid Span 2round Port

Color:

Black

Cable Diameter:

10~17.5mm

Seal Type:

Buckle

Application:

FTTH Pole Mount Or Wall Mount

Packaging Details:

1pc/box, 4pcs/shipping box

Supply Ability:

100K per month

Highlight:

24 Ports Fiber Optic Splitter Box

Waterproof FTTH Network Box

IP68 FTTH Network Box

Product Description

FDB0224F is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Box is total enclosed with screw rod + 4 brackets
High quality PP+GF plastic, with strength strips on lid or bottom
Anti-UV, Ultra violet and rainfall resistant, protection class IP68
Dis-mountable adapter panel max. 24SC, 4trays max. fusion 48cores
Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
Support mid span termination, easy operation and installation

Specification

Model	FDB0224F
Dimension (ABC)	385245155mm
Max.Capacity	48cores=4*12F single fiber
Cable entry	1mid span,	2round ports
Cable diameter	10-17.5mm	8-17.5mm
Cable exit	24 drop cable ports: 2mm, 4mm, 7mm
Adapter quantity	24SC
Splitter quantity	1x16 or 3pc 1x8 steel tube
Material	PP+GF (Modified polymer plastic + Glass fiber)

More detail pictures:

Outdoor IP68 Waterproof FTTH Network Box 24 Ports Fiber Optic Splitter Box 0

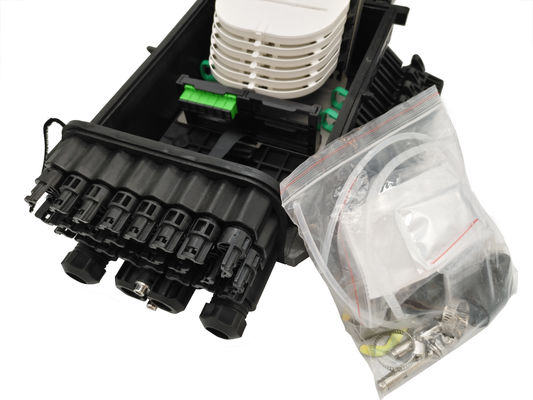

Standard Accessory:

Parts list
Main kits

S/N	Description	Quantity	Note
1	Lid	1	337(L)×242(W)×63(H)mm.
2	Base	1
3	Sealing ring	1	Box sealing
4	8202 sealing parts	16	Sealing cable ports
5	Splice tray	4	For cable splicing and storage
6	Splice tray cover	1
7	Splice tray bandage	1	Fixing several splice trays
8	Fastener bolt	2	Fixing lid and cover of closure
9	Buckle	4	Fixing lid and cover of closure
10	Tight nuts	16	Sealing soft cable ports
11	Tight tool	1	Special for tight the nuts
12	Cable fixing panel	1	Fixing un-cut cable
13	Adaptor installation panel	4	An adaptor panel for 6 SC simplex adaptors
14	Splice tray bracket	1	Install 6 splice trays
15	Top cover stopper	1	Limit top cover
16	Plastic nuts	2	Fixing cable

Features
Outdoor IP68 Waterproof FTTH Network Box 24 Ports Fiber Optic Splitter Box 4

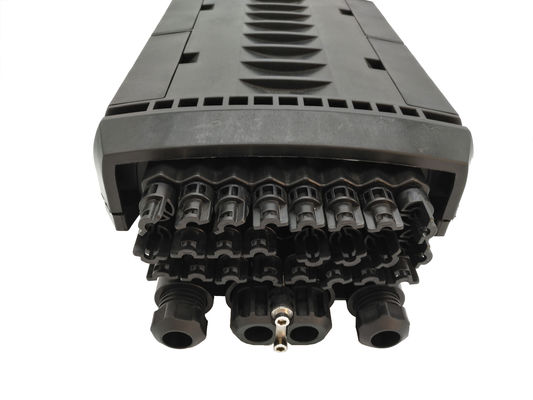

1 uncut ports,2 round ports, 24pcs drop cable ports, perfect for fiber to the work cable distribution and splitting and termiantion.

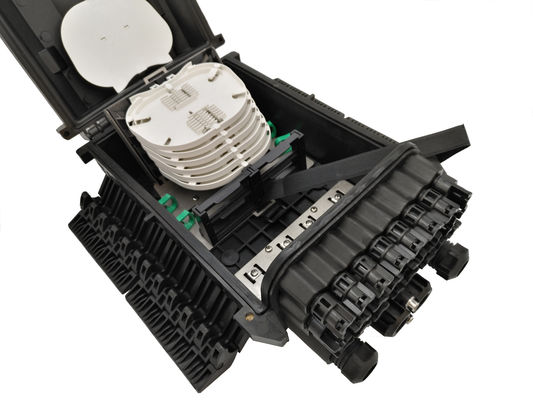

each box with 6pcs removable tray, and 24pcs SC adapter panel, and metal sheet for cable fix and routing.

Outdoor IP68 Waterproof FTTH Network Box 24 Ports Fiber Optic Splitter Box 6

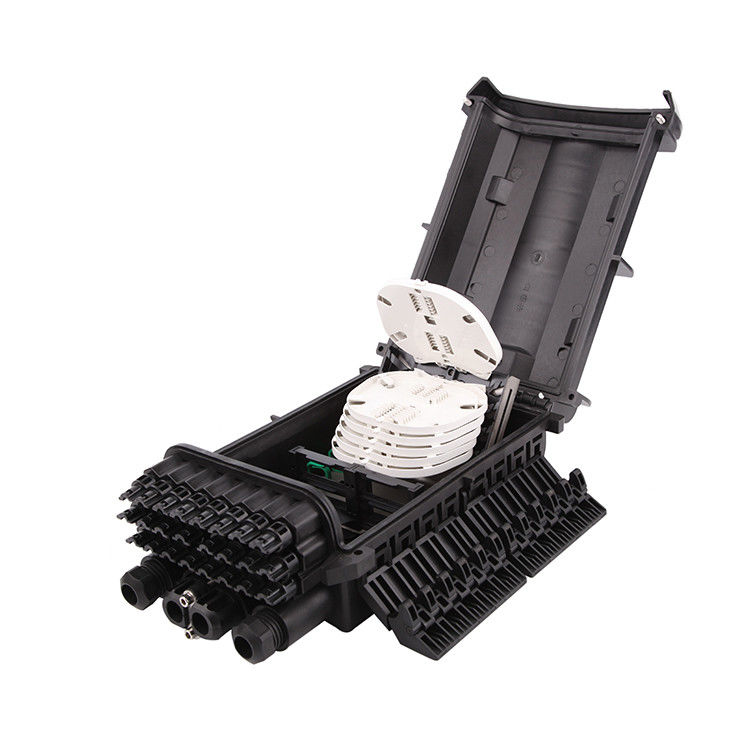

The box is strong, the buckle is unique design, high strength engineer plastic , the inside also have cable clamps.


all the metal parts is stainless steel, suitable for outdoor application, if you need small sheet, can do also.
the splice tray can fusion max. 12cores,double 24cores fiber; it can also put max. 1x, 1x4, 1x8 fiber optic plc splitter tube on the groove. it is the exact same size as the steel tube.

Standard parts

S/N	Description	Quantity	Note
17	Wall mounting kit	1	For wall mounting
18	Expansion anchor bolt	2	Parts of the wall mounting kit
19	Hexagon bolt	2	Parts of the wall mounting kit
20	Nylon tie(3*120mm)	12	Fixing cable
21	Fusion sleeve(Φ1.0*60mm)	According to the fiber cores.	Cable splicing
22	0.2m coil tube	1	Protect the fiber
23	Insulation tape	1	Accessorial fixation
24	0.5m EVA tube	1	Protect fiber
25	Drier	1
26	M6 internal hexagonal wrench	1	Tool to open the box
27	14# grommet	2	For cable dia. From 12-17.5mm
28	41# grommet	2	For cable dia. From 8-12mm
29	Plastic plug	4	Seal the cable port
30	Iron spanner	1	Tool

Optional parts

S/N	Description	Quantity	Note
25	Pole mounting kit	1	For pole mounting
26	Valve	1	Testing sealing performance
