12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter For Data Center

Name: 12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter For Data Center
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MPO(F)-OM3 10M
Price: 49.20 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	MPO(F)-OM3 10M
MOQ:	100PCS
Price:	0.2USD-100USD
Delivery Time:	2-3working days after received your payment
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Cable Diameter:

3.0mm

Cable Jacket:

LSZH

Cable Length:

Connector Type:

MTP/MPO

Durability:

1000 Times

Fiber Count:

Fiber Mode:

Multi-mode

Insertion Loss:

≤0.2dB

Operating Temperature:

-20℃~+70℃

Product Name:

MTP MPO Cable

Return Loss:

≥20dB

Storage Temperature:

-40℃~+85℃

Packaging Details:

Packed in plastic bag, in a shipping outer carton box.

Supply Ability:

40,000pcs per month

Highlight:

Optical MPO Patch Cable

MPO Patch Cable Assemblies

Aqua mpo patch cord

Product Description

12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter for Data center

MPO/MTP fiber optic patch cable consists of OM3 fiber optic cable and corresponding 4/8/12/24 core high density MPO MTP connector. The connector might be female or male with guide pin. The cable from 4-144core, single mode or multi mode, the single mode fiber including G652D G657A G657A2, the multi mode fiber including 62.5/125um. 10G OM2/OM3/OM4, OR BENDING INSENSITIVE 10G multi mode cable.

MPO fiber cable Product Structure

12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter For Data Center 0

fiber optical patch cord MPO Features

Customized, high adaptability
Different fiber cores and cable structure for different installation
Improved and simplified cabling, reduce cabling spacing
Complied with IEC61754-7, Telcodia GR-1435- CORE, RoHS

fiber patch cord MPO Unique Service:

SAMPLES for quality testing are available
5 days leading time if order quantity < 100pcs
Drawing, Specification, Test Report can be sent at any time if request
Quality complaint will handle in 24 hours by our After-sales Service Dept

MPO fiber cable Associated Standards

Meets IEC Standard 61754-7& JIS C5982
Structured cabling per TIA-568-C
Parallel Optics
Optical Internet working Forum (OIF) Compliant
nfiniband Compliant
Infiniband
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
QSFP

Fiber optic MPO Applications

Optical switching inter-frame connections
High fiber density card edge access
Array trunk cables
Data center cabling

Fibe cable MPO Specifications

Insertion loss (dB)	SM standard	SM Elite	MM standard		MM Elite
Return loss (dB)	≤0.7	≤0.35	≤0.7		≤0.35
Durability (dB)	≥60		≥60
Tensile strength (kgf)	10
Working temperature (°C)	-20~+70
Measurement wavelength (nm)	1310		850
Geometry Parameters
Item	X-axis		Y-axis
	Min	Max	Min	Max
Radius of curvature (mm)	500	-	50	-
Polishing angle	0-0.2	0+0.2	8-0.2	8+0.2
Item	Min		Max
Fiber height (nm)	1000		3000
Max fiber height error (nm)	600
Adjancent fiber height error (nm)	-300		+300
Avg. Fiber height error(nm)	-300		+300
Central concave (nm)	300

More product show:

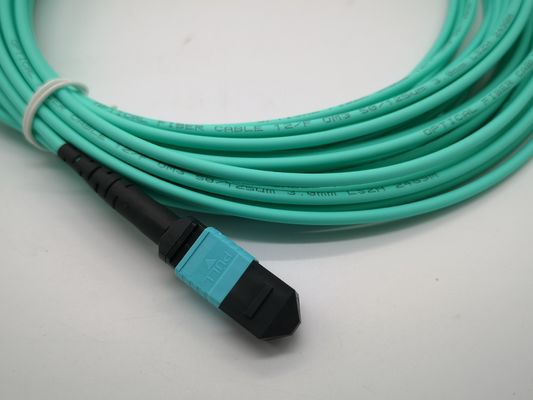

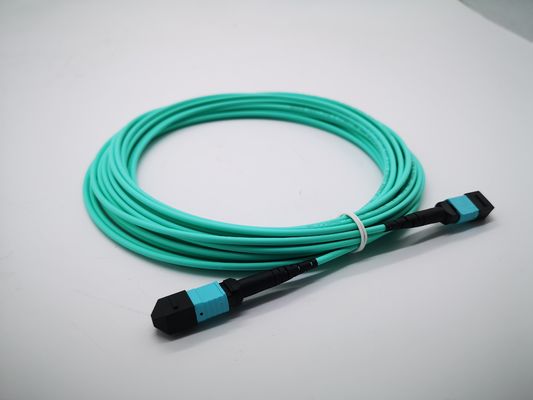

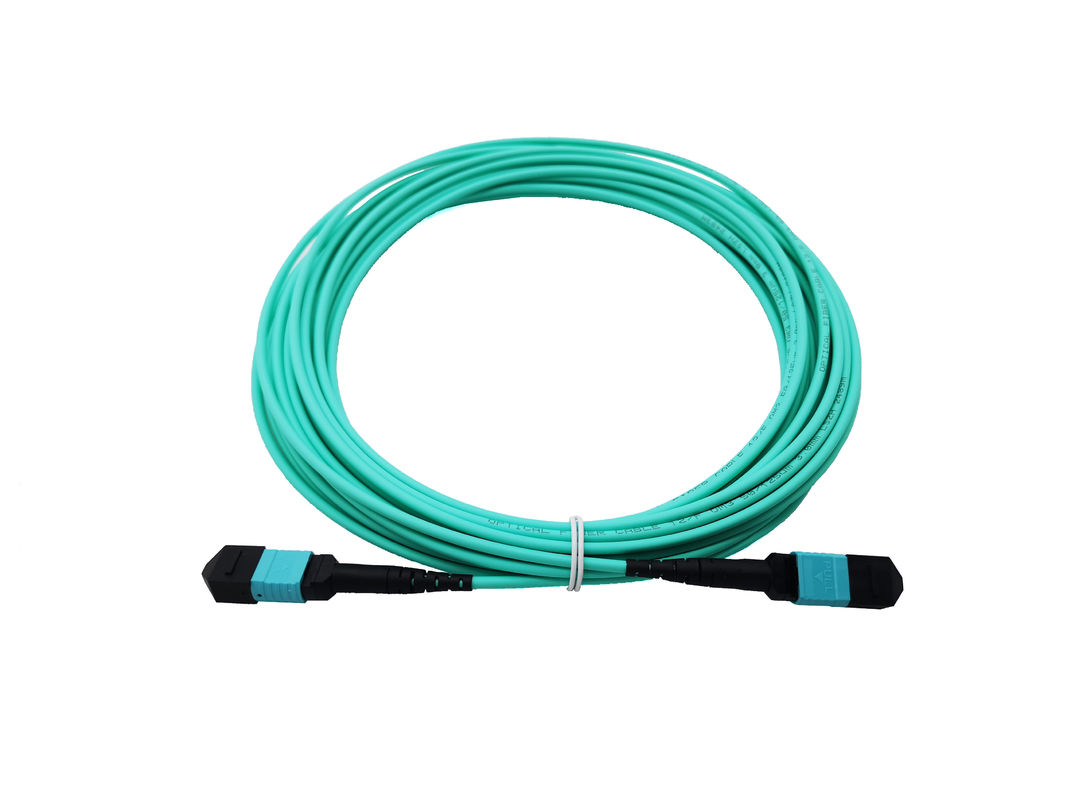

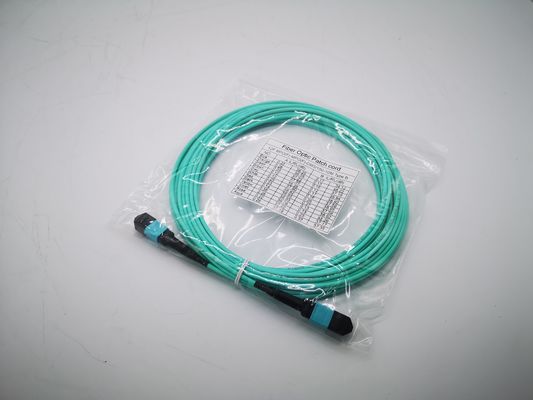

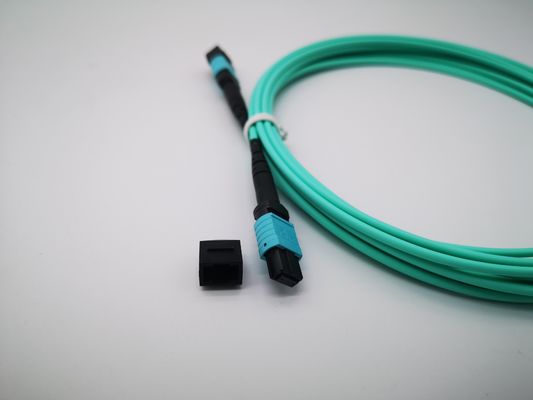

12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter For Data Center 1

12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter For Data Center 3

12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter For Data Center 5

MPO Polarity A B C

12 Fiber Optical MPO Patch Cable Assemblies OM3 40/100G Aqua 10 Meter For Data Center 7
