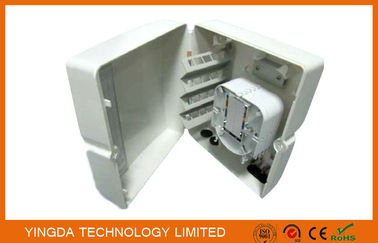

36 Fibers FTTH Optical Splitter Distribution Box, 1:8 PLC Fiber Optic Splitter Box

Basic Information
Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO SGS CE ROHS
Model Number: FDB6005
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1 pc / box, 12 pcs/ carton box
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C
Contact Now
Detail Information
Cable Ports: 2in 2out (straight Through) Cable Diameter: Φ10~15 Mm
Color: White Dimension: 280×250×125 Mm
Installation Method: Wall Mount Splitter: 4x 1:8 Or 1x 2:32 Blockless Spitter
Splice Tray: Max. 5pcs Tray Capacity: 12 Fibers
Ftth Drop Cable: Max. 32 Pcs Material: PC Or ABS

Product Description

36 Fibers FTTH Optical Splitter Distribution Box, 1:8 PLC Fiber Optic Splitter Box





This Fiber Optic Splitter Termination Box is to achieve the feeder cable and branch cable reserved

 in the node, direct connection and allocation.

Installation method: Wall-mounted





Features



1. The box is made of the high strength engineering plastics

2. Compact size , light weight;

3. Anti-UV, Ultra violet resistant and rainfall resistant;

4. Wall and pole mountable;

5. Up to 32 FTTH drop cables;

6. The design of inner lock is artistic and easy to operate.

7. It is used to protect Φ10~15 optical cable or soft cable

8. SC adaptor, fast connectors optional
9. Inlet holes for both open and concealed wires, to meet various applications
10. Pre-install the PLC splitters with the maximum optical distribution ratios 2:32 or 4x1:8,

      speically suitable for FTTx fiber inlet in PON technique.



Specification



Box Material

Polymer synthetic plastic

Max capacity

36 Core

Dimension (mm)

280×250×125

Functions:

straight through, branching, passive splitter

Splitter type:

micro splitter (mini module splitter, blockless)

Splitter installation position:

splitter fixing bracket

Adaptor type:

SC

Max ratio:

2:32 or 4x1:8

Splice tray type:

10 #

Splice tray quantity:

5 pcs

cable:

8 figure soft cable, general outdoor cable, indoor wiring cable

Standard accessory:

box one set

Optional accessory:

PLC splitter, SC adaptor, fast connector, bundle pigtail, ribbon pigtail

Weight

2.3-2.5kgs



Package information



Carton qty

12pcs

Carton size

630×580×520mm

Gross weight

33.6kgs



Equipment:

Injection molding machine;Punching machine;Guillotine Shear;CNC punching machine;

CNC bending machine;

Exhibition: ECOC,OFC, Local Exibihition.

R & D departmen:System Engineer; Technical Support Engineer; Communication Engineer;

Test Engineer.;Data-Base  Administrator;Program Engineer;

Partner: China Mobile, HuaWei, China Telecom, ZTE, Mtel, Tyco, 3M.

Market: Europe, South American,North American,Asia,South Africa.
