Compact Fiber Optic PLC Splitter 1x2 Cassette Module , Fused Welding FTB Coupler

Compact Fiber Optic PLC Splitter 1x2 Cassette Module , Fused Welding FTB Coupler

  • High Light

    fbt coupler

    ,

    plc splitter

  • Connector
    SC/UPC
  • Fiber Type2
    Corning Fiber SMF-28e SM
  • Insertion Loss
    16.9dB
  • Uniformity (Max.)
    1.5 DB
  • Wavelength
    1260-1650nm
  • PDL(Max.)
    0.3 DB
  • Plastic Box Module
    140*115*18 Mm
  • Fiber Length
    1.5 Meter
  • Cable Diameter
    3.0 Mm
  • Split Ratio
    1x32 ABS Box Splitter
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    YD-FBT-CM-102-10-SC
  • Minimum Order Quantity
    50 pcs
  • Price
    negotiable
  • Packaging Details
    1PC/BOX
  • Delivery Time
    5-8days after payment
  • Supply Ability
    10,000 pcs per month

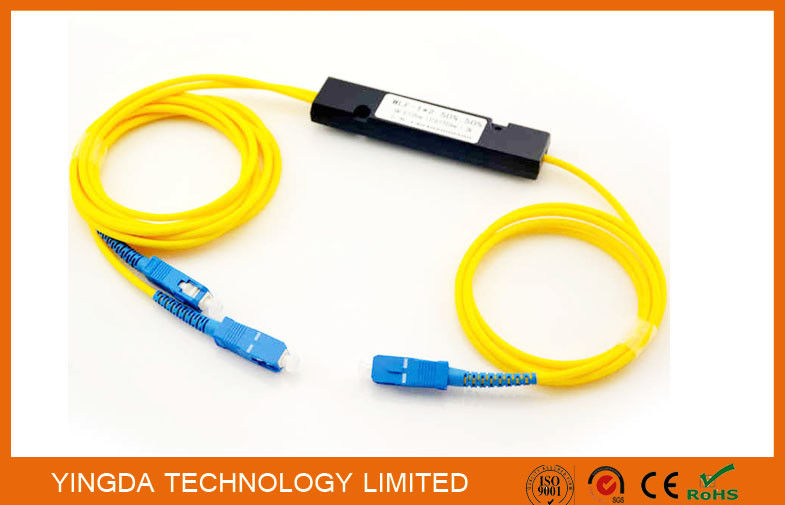

Compact Fiber Optic PLC Splitter 1x2 Cassette Module , Fused Welding FTB Coupler

FTTH Fiber Optic PLC Splitter 1x2 Cassette Module, Fused Welding FTB Coupler 50% / 50%







Description:



The single mode dual/Three window couplers are based on FBT technology,

 have excellent performance.



Features

  1. Low Insertion loss
  2. Various Coupling Ratio
  3. Compact Size



Application:

  • Long-Haul Telecommunications
  • CATV Systems & Fiber Sensors
  • Optical fiber sensing
  • Local Area Network



Performance Specification



Coupling Ratio

Insertion Loss(dB)

P

A

50/50

3.5/3.5

3.6/3.6

40/60

4.7/2.7

5.0/2.9

30/70

6.0/1.9

6.4/2.1

20/80

7.9/1.2

8.5/1.4

10/90

11.3/0.6

12.7/0.8

5/95

14.0/0.45

17.5/0.5

1/99

21.0/0.2

21.5/0.25

Excess Loss(Typ.)((dB)

0.10

0.15

Polarization Sensitivity(dB)

0.10

0.15

Operating Wavelength(nm)

1310±40, 1550±40,1310/1550±40,

1310/1550±40/1490±20

Directivity((dB)

≥55

Return loss(dB)

≥55

Port Configuration

1×2 or 2×2





Major parameter

unit

Performance

Operating

Wavelength

nm

single window; dual windows; three windows

(1xN)



N=3

N=4

N=5

N=8

N=16

N=24

N=32

N=64

Fiber type



Corning SMF-28e

Max. Insertion

 Loss

dB

5.41

/5.62

7.01

/7.22

7.81

/8.02

10.01

/10.42

13.51

/13.92

15.01

/15.42

17.31

/17.52

21.01/

21.52

Uniformity

dB

0.51/

0.62

0.51/

0.62

0.61/

0.82

0.81/1.02

1.11/

1.32

1.21/

1.52

1.31/

1.52

2.11/

2.52

Return loss

dB

≥55

Directivity

dB

≥55

PDL

dB

<0.20

<0.20

<0.30

<0.40

<0.40

<0.50

<0.50

<0.50
