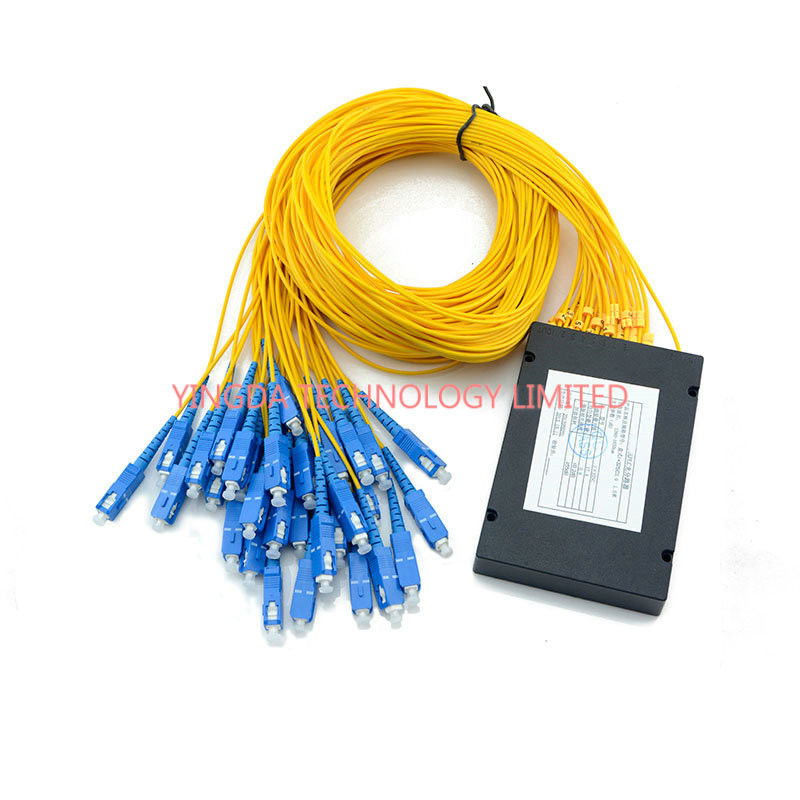

Custom PON 1x32 SC Fiber Optic PLC Splitter Loss FTTH and CATV Splitter

Custom PON 1x32 SC Fiber Optic PLC Splitter Loss FTTH and CATV Splitter

  • High Light

    fiber optic splitter

    ,

    fbt coupler

  • Connector
    SC APC
  • Fiber Type2
    Corning Fiber SMF-28e SM
  • Insertion Loss
    16.9dB
  • Uniformity (Max.)
    1.5 DB
  • Wavelength
    1260-1650nm
  • PDL(Max.)
    0.3 DB
  • Plastic Box Module
    140*115*18 Mm
  • Fiber Length
    1.5 Meter
  • Cable Diameter
    3.0 Mm
  • Split Ratio
    1x32 ABS Box Splitter
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO CE ROHS
  • Model Number
    YD-PLC-ML132-SC-15-30
  • Minimum Order Quantity
    50 pcs
  • Price
    negotiable
  • Packaging Details
    1PC/BOX
  • Delivery Time
    5-8 days after payment
  • Supply Ability
    10,000 pcs per month

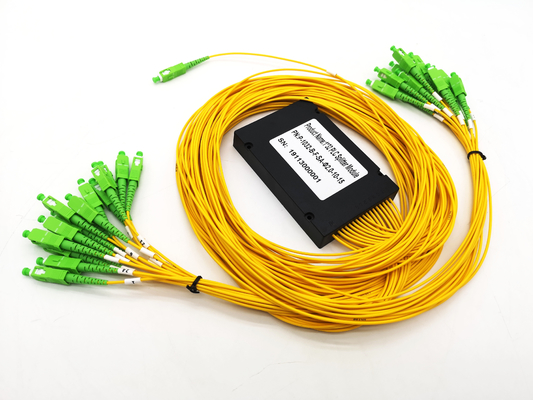

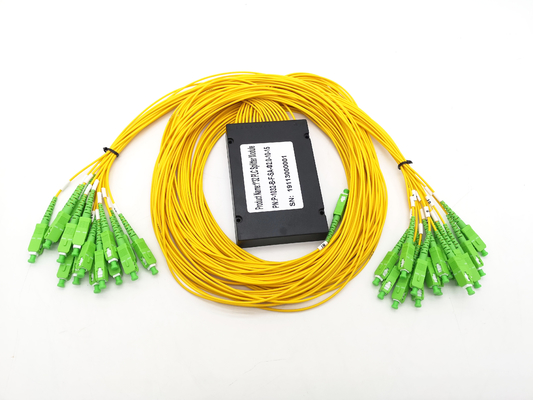

Custom PON 1x32 SC Fiber Optic PLC Splitter Loss FTTH and CATV Splitter

PON 1x32 SC Fiber Optic PLC Splitter Module, Optical Fiber Splitter Coupler 1M Singlemode





Quick Details of 1:32 Fiber Optic PLC Splitter

  • Input/putput pigtail SC APC connectors
  • Fiber type: Corning G657A2 2mm yellow
  • ABS module size:140*115*18mm
  • 1x2 1x3 1x4 1x5 1x16 1x8 1x9 1x12 1x16 1x24 1x32 2x32 split ratio all available
  • Conforms to Telcordia-1209-core & GR-1221-core standards



Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range. These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.



1 to 32 Balanced Splitter Technical Specification

Table 1 – 1×N PLC Splitter Rack

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

4.0/3.8

7.3/7.0

10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss (dB)

 (S/P Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability

(-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature

(°C)

-40~85

Storage Temperature

(°C)

-40~85







Table 2 – 2×N PLC Splitter Rack

Parameters

2×2

2×4

2×8

2×16

2×32

Operating Wavelength (nm)

1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

4.2

7.6

11.0

14.5

17.5

Loss Uniformity (dB)

0.8

1.5

1.5

2.0

2.5

Return Loss (dB) (S/P Grade)

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.5

0.5

0.5

0.5

Temperature Stability(-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85







32 way Fiber Optical Passive Splitter 50/50 Features

  • The loss is not sensitivity to optical wave length to be transmitted. It can meet the transmission requirment of different wave.
  • Light splitting uniform.may distripute signal to customer uniformly.
  • The structure is compact,may install directly into present various cross connecting cabinet ,need not special desigh and leave larger installation space .
  • The branched channels of single element may reach to more 32 channels.
  • The cost of multichannel is low .The more the branched channel qualtity ,the cost advantage will be more obviously .



Optical Fiber Splitter 1x32  Wide Application


* FTTH,FTTC,FTTB Network
* Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems

* Optical Signal Distribution



Custom PON 1x32 SC Fiber Optic PLC Splitter Loss FTTH and CATV Splitter 0

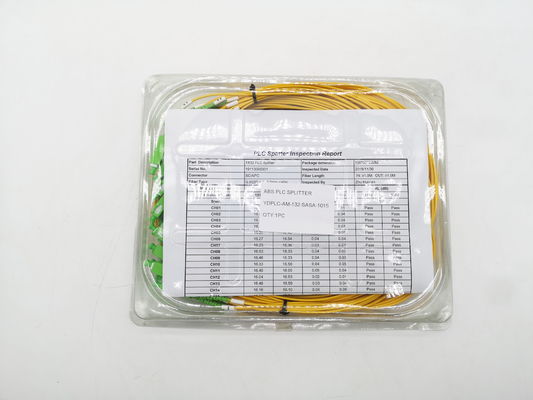

All splitter delivered with test report, and there is stickers on the ABS module itself including: product name, specification, quantity, serial  number, etc




Custom PON 1x32 SC Fiber Optic PLC Splitter Loss FTTH and CATV Splitter 1

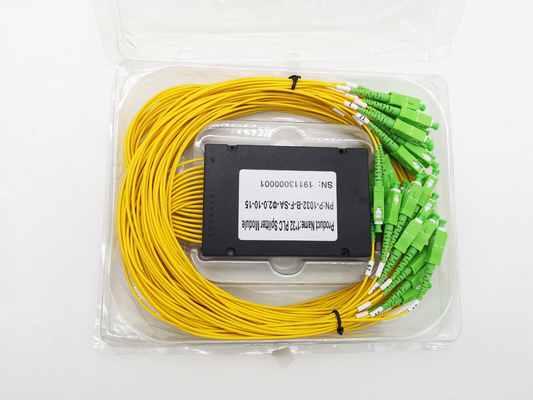

Individual package by blister box, speical slots to install the abs module and connectors, invisible and good protection


Custom PON 1x32 SC Fiber Optic PLC Splitter Loss FTTH and CATV Splitter 2

input with IN mark, output with 1 2 3 4 ... 32 number rings for each port to distinguish and better installation.
