GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis

GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis

  • High Light

    fiber optic splitter

    ,

    fbt coupler

  • Connector
    FC SC LC ST All Ok
  • Fiber Type2
    G657A1, G652D Corning Fiber SMF-28e
  • Insertion Loss
    10.2 / 10.5 DB
  • Uniformity (Max.)
    1.5 DB
  • Wavelength
    1310/1550nm
  • PDL(Max.)
    0.2 DB
  • Dimension
    130*110*25mm
  • Fiber Length
    1meter
  • Cable Diameter
    2.0mm,0.9mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    YD-PLC-LG-108-SC-10
  • Minimum Order Quantity
    50 pcs
  • Price
    negotiable
  • Packaging Details
    1PC/BOX
  • Delivery Time
    5-8days after payment
  • Supply Ability
    10,000 pcs per month

GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis

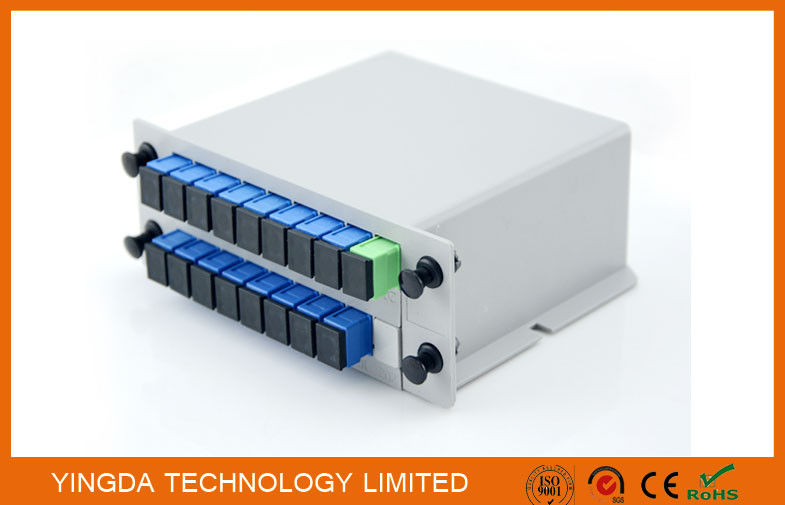

GPON Network 1:8 PLC Optical Splitter LGX Aluminum 2 Slot Cassette Chassis





Yingda provides a high precise PLC splitter for the construction of optical network. Low requirements

of placing position and environment, compact insertion module type design. It is small enough to place

in indoor terminal box and ODF frame or optical fiber distribution box directly. PLC optical splitter offers

uniform power splitting with low insertion loss, low PDL and high return loss. User can customize the

optical splitting ratio for every output channel. The range of the working wavelength is from 1260nm

to 1650nm.





Features:


♦  Compact size design

♦  Low insertion loss and low PDL

♦  High reliability

♦  High channel counts

♦  Wide wavelength range

♦  Large operating temperature range

♦  Customized packaging and configuration

♦  Full Telcordia GR1209/1221 qualifications



Specifications:



1×N(N>2) (With connector) Optical parameters:



parameters

1×4

1×8

1×16

1×32

1

Operation wavelength(nm)

1260~1650

2

Insertion loss(dB)

Max

7.4

10.7

13.7

16.9

3

Return loss(dB)

Max

0.6

0.8

1.2

1.7

4

Return loss(dB)

Min

55

55

55

55

5

PLD(dB)

Max

0.2

0.3

0.3

0.3

6

Directivity(dB)

Min

55

55

55

55

7

Wavelength dependent loss(dB)

0.4

0.4

0.5

0.5

8

Pigtail length(m)

1.2(±0.1) or customer specified

9

Fiber type

250μm bare fiber

10

Operation temperature(°C)

-40~85

11

Storage temperature(°C)

-40~85

12

Packaging Size(L×W×H) (mm)

40×4×4

40×4×4

40×4×4

50×7×4



1

Operation wavelength(nm)

1260~1650

2

Return loss(dB)

APC min

55

UPC min

50

3

Directivity(dB)

Min

55

4

Pigtail length(m)

1.0(±0.1) or customer specified

5

Fiber type

Customization

6

Operation temperature(°C)

-20~65

7

Storage temperature(°C)

-40~85



Note: All measurement were done at room temperature and specification include connectors.





2×N(N>2)PLCS(Without connector) Optical parameters:



parameters

2×4

2×8

2×16

2×32

1

Operation

wavelength(nm)

1260~1650

2

Insertion loss(dB)

Max

7.8

11.2

14.2

17.4

3

Loss uniformity(dB)

Max

1.2

1.5

1.8

2.0

4

Return loss(dB)

Min

55

55

55

55

5

PLD(dB)

Max

0.2

0.3

0.4

0.4

6

Directivity(dB)

Min

55

55

55

55

7

Wavelength dependent loss(dB)

0.4

0.4

0.5

0.5

8

Pigtail length(m)

1.2(±0.1) or customer specified

9

Fiber type

Cusomization

10

Operation temperature(°C)

-40~85

11

Storage temperature(°C)

-40~85

12

Dimension (L×W×H) (mm)

50×4×4

50×4×4

60×7×4

60×7×4



Note: All measurement were done at room temperature and specification include connectors.





Application

  1. FTTX Systems
  2. PON Networks
  3. CATV Links
  4. Optical Signal Distribution
