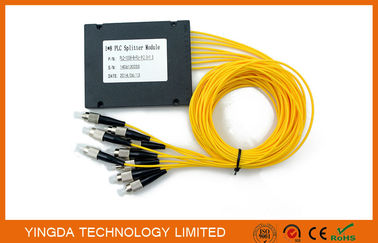

1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm

  • 1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm
  • 1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm
  • 1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm
  • 1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm
  • 1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm
Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number YD-PLC-LG-108-FC-15
Minimum Order Quantity 50 pcs
Price negotiable
Packaging Details 1PC/BOX
Delivery Time 5-8days after payment
Supply Ability 10,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector FC SC LC ST All Ok Fiber Type2 G657A1, G652D Corning Fiber SMF-28e
Insertion Loss 10.2 / 10.5 DB Uniformity (Max.) 1.5 DB
Wavelength 1260 - 1650 Nm PDL(Max.) 0.2 DB
Module Size 100×80×10 Mm Square Tube Size 40×4×4 Mm
Flat Tube Size 60×7×4 Mm Fiber Length 1.5meter
Cable Diameter 2.0mm
High Light

fbt coupler

,

plc splitter
Leave a Message
Product Description

1*8 Fiber Optical Splitter Module, Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm



Fiber Optic Planar lightwave circuit (PLC) splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


Features

  • Low Insertion Loss & PDL
  • High Isolation
  • Compact size
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength 1260-1650nm
  • High Reliability and Stability


Compliance

  1. Telcordia GR-1209-CORE
  2. Telcordia GR-1221-CORE
  3. RoHS

Specification

Optical Parameter

Wavelength Range: 1260~1650nm

1X4

1X8

1x16

1X32

1x64

2X4

2X8

2x16

2X32

Isolation

 Loss(dB)

With Connector (Max)

7.7

11.5

14.5

18.2

20.4

8

11.6

15.1

18.2

Without Connector

 (Max)

7.5

11.3

14.3

18.0

20

7.8

11.4

14.9

18

Uniformity

(dB)

With Connector (Max)

0.8

1.0

1.4

1.9

2.7

1.5

1.5

2.0

2.5

Without Connector

(Max)

0.6

0.8

1.2

1.7

2.5

1.7

1.7

2.2

2.7

PDL(dB)

With Connector (Max)

0.3

0.2

0.4

0.4

0.4

Without Connector

(Max)

0.2

0.3

0.3

0.3

0.3

0.4

Return

Loss(dB)

With Connector

 (Mix)

UPC: 45, APC: 50

Without Connector

(Mix)

50

Directivity

(dB)

Min.

55

Package Size

(LxWxH mm)

4x4x50

4x7x50

4x12x60

4x5x50

4x8x50

Operation

Temperature

(°C)



-40~+85

Length of

Pigtail(m)



According to customer’s requirement

Type of

Pigtail(mm)



0.9,2 or according to customer’s requirement

Type of

 Connector



FC, SC or according to customer’s requirement



Table 2 – 2×N PLC Splitter


Parameters

2×2

2×4

2×8

2×16

2×32

Operating

Wavelength (nm)

1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)
(S/P Grade)

4.2

7.6

11.0

14.5

17.5

Loss Uniformity (dB)

0.8

1.5

1.5

2.0

2.5

Return Loss (dB)
(S/P Grade)

50/55

50/55

50/55

50/55

50/55

Polarization Dependent
 Loss(dB)

0.2

0.2

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

Wavelength Dependent
 Loss(dB)

0.3

0.5

0.5

0.5

0.5

Temperature Stability
(-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Module Dimension (mm)
 (L×W×H)

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18




Notes

  • Specified without connectors.
  • Add an additional 0.2dB loss per connector.
  • 1x64,1x128,2x64 also can be offered


.Application

  1. FTTH
  2. PON Network
  3. CATV Links
  4. Communication Equipment
