Fiber Optic PLC Splitter
Created with Pixso. 1 x 8 Fiber Optic PLC Splitter

1 x 8 Fiber Optic PLC Splitter

Brand Name: YINGDA
Model Number: 1X8
MOQ: 100 pcs
Price: negotiable
Delivery Time: 5-8days after payment
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Split Ratio:
1X8 Blockless Splitter
Connector:
SC/UPC Simiplex
Fiber Type:
Single Mode G657A1
Insertion Loss:
10.3dB
Uniformity (Max.):
0.8dB
Wavelength:
1260 - 1650 Nm
PDL(Max.):
0.3dB
Standard:
Telcordia GR-1221 And GR-1209
Tube Dimension:
60*7*4mm
Packaging Details:
1pc/ box,20pcs/carton box
Supply Ability:
10,000 pcs per month
Highlight:

fbt coupler

,

plc splitter

Product Description

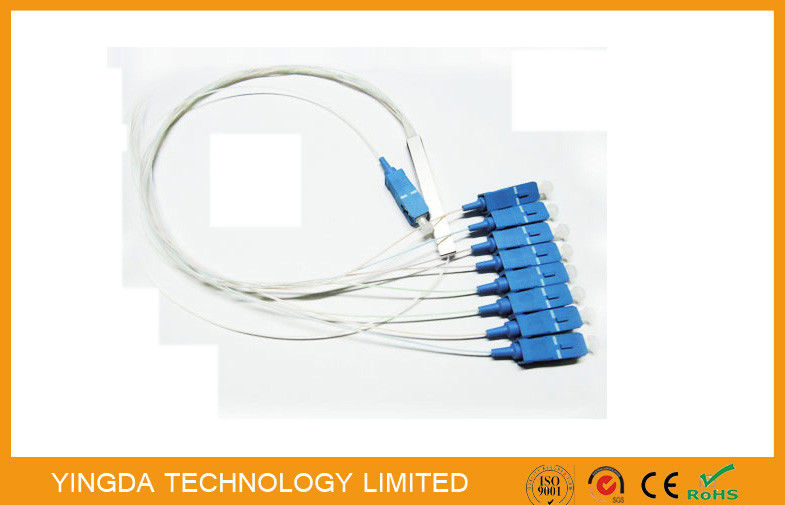

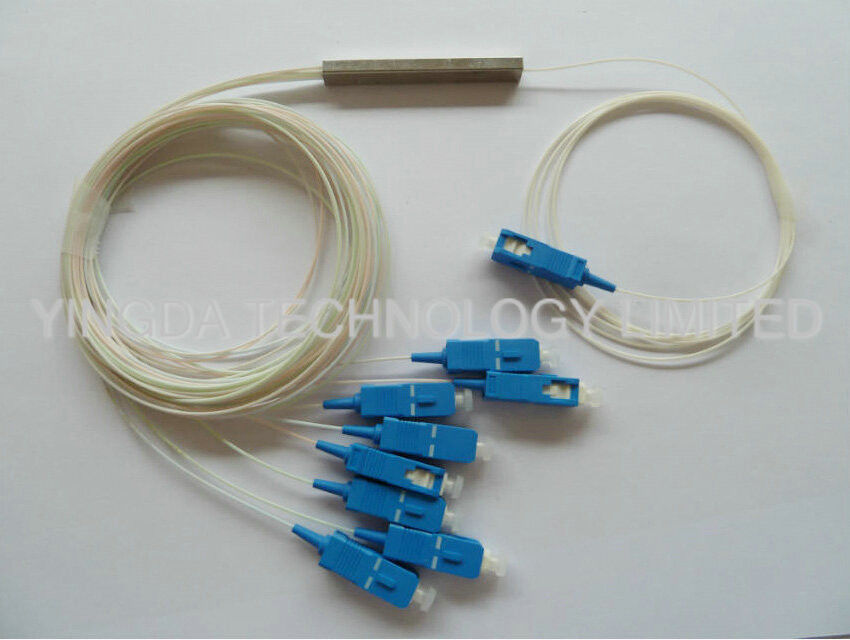

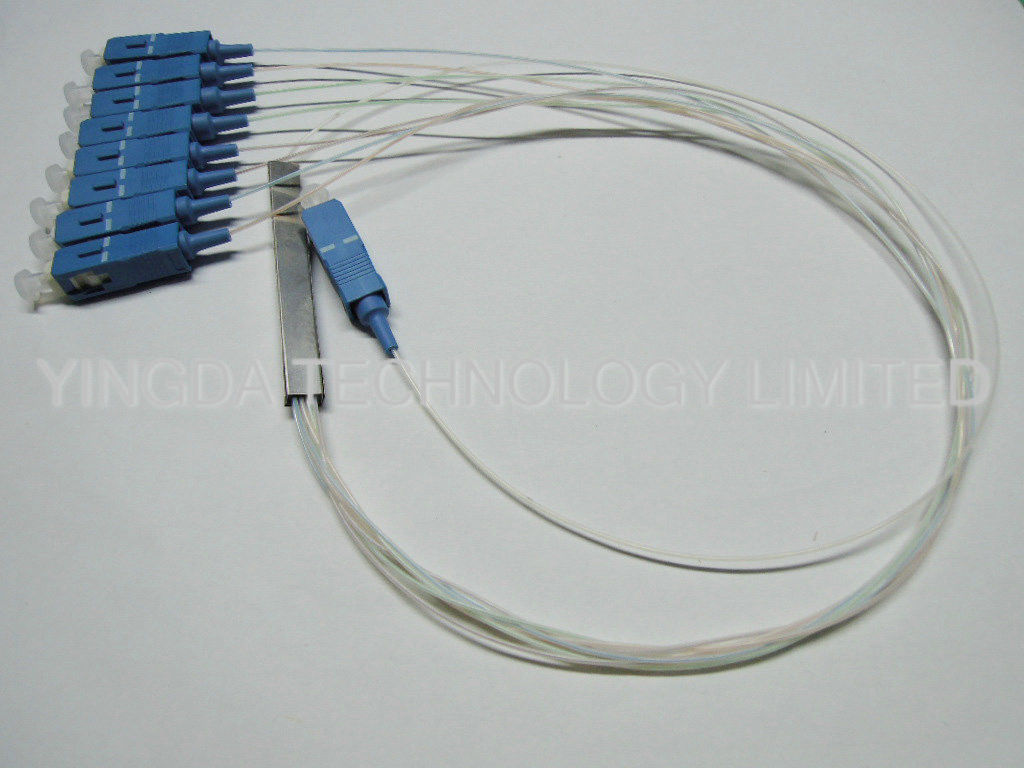

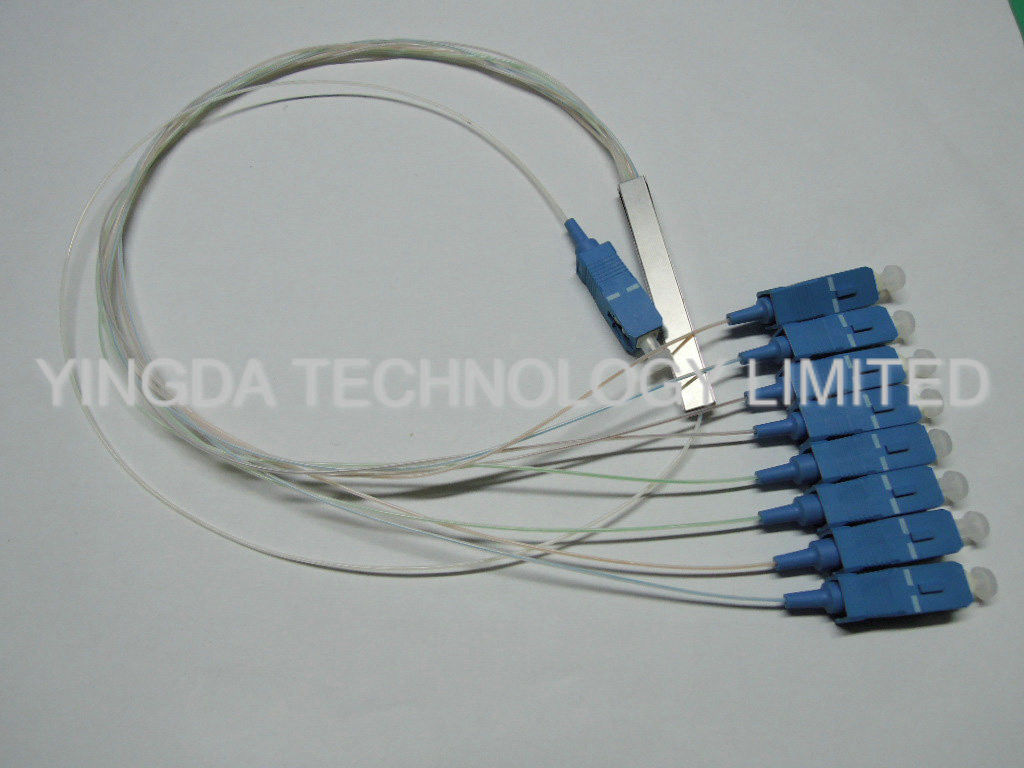

1 x 8 Fiber Optic PLC Splitter Blockless Mini Modue, Blockless Splitter





PLC Splitter is Based on the Planar Waveguide Technology.

It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability



Features

  1. Low Insertion loss
  2. Low PDL
  3. Compact Design
  4. High Return Loss
  5. Good channel-to-channel uniformity
  6. Compact Design
  7. High Reliability and Stability
  8. Wide Operating Temperature
  9.  Wide Operating Wavelength
  10. Excellent Environmental & Mechanical Stability



Application

  • FTTx (FTTB, FTTH, FTTC) Systems
  • Passive Optical Networks (PON) Networks
  • CATV Links
  • Optical Signal Distribution
  • Local Area Networks (LAN)
  • Test Equipments
  • Qualified Under Telcordia GR-1221 and GR-1209



Specification



1×N PLC Splitter



Parameter

Unit

Value

Product Type



1×2

1×3

1×4

1×6

1×8

1×12

1×16

1×24

1×32

1×64

1×128

Operation Wavelength

nm

1260~1650

Insertion Loss

Typ.

dB

3.6

6.0

7.0

9.2

10.3

12.2

13.6

15.8

16.6

20.1

24.5

Max.

4.3

6.2

7.4

9.5

10.7

12.5

13.9

16.0

17.2

21.5

25.5

Uniformity (Max.)

dB

0.5

0.6

0.8

0.8

0.8

1.2

1.4

1.5

1.5

2.0

2.6

PDL(Max.)

dB

0.2

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.5

0.8

TDL(Max.)

dB

0.5

Return Loss

dB

≥55/50

Directivity

dB

≥55



2×N PLC Splitter



Parameter

Unit

Value

Product Type



2×2

2×4

2×8

2×16

2×32

2×64

2×128

Operation Wavelength

nm

1260~1650

Insertion Loss

Typ.

dB

4.2

7.2

10.6

13.8

17.0

20.5

24.8

Max.

4.5

7.7

11.0

14.8

17.9

21.5

25.8

Uniformity (Max.)

dB

0.8

1.0

1.2

1.5

1.8

2.5

3.0

PDL(Max.)

dB

0.2

0.3

0.3

0.3

0.3

0.5

1.0

TDL(Max.)

dB

0.5

Return Loss

dB

≥55/50

Directivity

dB

≥55



Note: All the data above does not include connectors.

UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.





 Pack information



Split ratio

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Mini-Module

Dimension

(mm)

60*7*4

60*7*4

60*7*4

60*12*4

80*20*6

100*40*6

N/A



Environmental Conditions



Operating Temperature

-40~+85

Storage Temperature

-40~+85

Operating Humidity

%RH

≤93

Storage Humidity

%RH

≤93





Ordering Information



PLCS

-

-

-

-

-

-

-



Structure

Fiber

Type

Package

Input

Output

Length

Connector

Structure

0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64

Fiber Type

1=G652D, 2=G657A1, 3=G657A2

Package Dimension

A1, A2,...A12, D, E, F, K, U, G, C, T, R, X

Input Type

B=250μm Bare Fiber ,L=900µm Loose tube,

S=2.0mm, R=3.0mm, 0=Adapter

Output Type

B=250μm Bare Fiber ,

L=900µm Loose tube,

S=2.0mm,

R=3.0mm,

 F=splitter, 0=Adapter

Pigtail Length

05=0.5m, 10=1.0m, 100=100m, 0=Adapter,

15/10=1.5m input/1.0m output,

X=Others

Connector Type

FU=FC/UPC, FA=FC/APC,

SU=SC/UPC, SA=SC/APC,

 ST=ST/UPC,

LU=LC/UPC, LA=LC/APC,
MPO=MPO/UPC,

MPA=MPO/APC,

FU/FA=FC/UPC input / FC/APC output,

00=None,

 X=Others
