12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black

12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black
12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black

Large Image :  12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: MTPC-24
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1 pc/ box, 5 pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 10,000 pcs per month

12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black

Description
Connector: MPO LC UPC Connectors Max Capacityy: 24 Cores Single Fiber
Application: Data Center, High Density Cable Assembly Cable Length: 0.35 Meter
Cable Diameter: 12 Colored Pigtails 900um Fiber Type: G657A2 Fiber
Fiber Mode: Single Mode OS1 OS2 MPO Brand: SENKO MPO Connectors
High Light:

MPO fanout cable

,

MPO patch cord

12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black





MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO

backbones with LC or SC patching.



Modular system allows for rapid deployment of high density data center infrastructure as well as improved troubleshooting and

reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19”multi-slot chassis.



MPO Cassettes contain factory controlled and tested MPO-LC fanouts to deliver optical performance and reliability.

Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.



MPO LC Cassette Features

  • MTP/MPO standard compliant multifibre connector
  • High-density and small design;Easy and fast installation
  • 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts
  • Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2)fiber.
  • Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance.
  • Metallic shell with high strength protect the inner fibers effectively
  • Supports easy reconfiguration for moves, adds, and changes
  • High performance zirconia sleeve adaptors



MTP Cassette Technical Specification

Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657A)

MM(OM1/OM2/OM3/OM4)

Jacket Materials

LSZH/OFNR/PVC

Connector Type

SC/LC/ST/LC/MU/MTRJ/MPO/E2000

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Losss(dB)
TIA/EIA-455-107

≤ 0.3dB
(PC/UPC/APC)

≤ 0.3dB
(PC/UPC)

Return Loss(dB)
TIA/EIA-455-107

≥45dB(PC/UPC)
≥55dB(APC)

≥35dB(PC/UPC)

Exchangeability

≤ 0.2dB

Cable Assemblies

Pigtail/Simplex/Duplex/Fan-out Patchcord

Operating Temperature (° C)

-10~ + 70

Storage Temperature (° C)

-40 ~ +85

Package

1unit/bag

*All values specified are with connectors.



12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 0

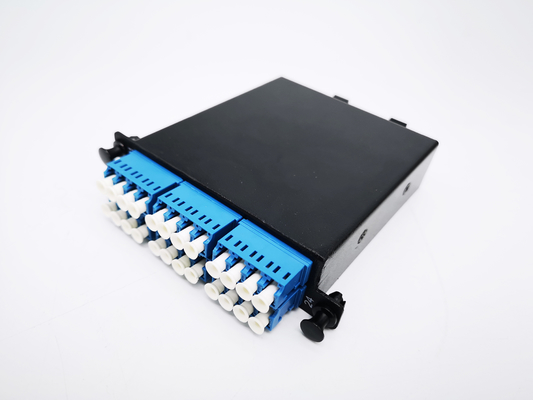

FTTH  mini MPO Casstte enclosure is made of cold rolled steel, square shapte, smooth surface, with 6pcs quad LC adapters, maximum can do 24cores fiber distribution and patching, meet high density network application.

Front panel can be 12* duplex LC adapters for option.


12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 1

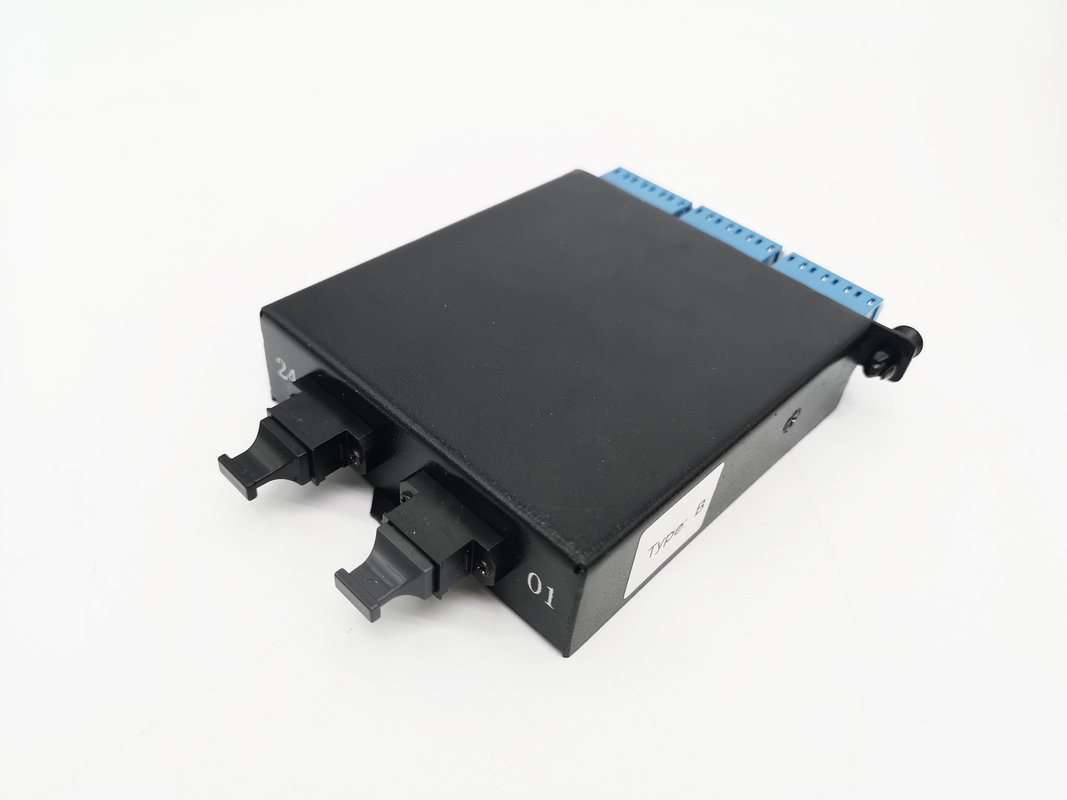

in order to better installation, there is 01-12 13-24 mark in front and back sides to correspondence with each other. 1st line is 1-12, second line is 13-24 from top to bottom.


12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 2

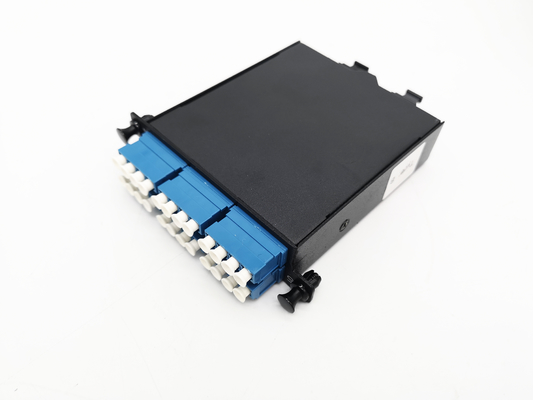

Metal mpo terminal box size: 141.5*129*30mm, max hold 2pcs MPO adapters,MPO LC 12fiber patch cable, and 6pcs quad adapters LC


12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 3

The cassette insert into the patch panel by rivets at both sides on the mounting ears, press down to insert, take it out to loose it.


Application

  • Data Centre Infrastructure
  • Storage Area Network-Fiber Channel
  • Emerging 40 & 100Gps Protocols
  • Parallel optics

12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 4

Individual pack box with form at top and bottom,test reports included, better protection during long term transportation if purchased by lots.


12F 24F MTP MPO Fiber Optic Cable Cassette For Patch Panel Rack 19Inch 1U Metal Black 5



Our adopt industry leading high performance polishing marchine, and complemented by precision plates holders designed for MT ferrules.

The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of the polished MT ferrule complies and exceeds industry standards.

After the 3D interference detection, the flexbility of the tester provides the complete spectrum of optical test required for complex and high fiber count cable assemblies.
