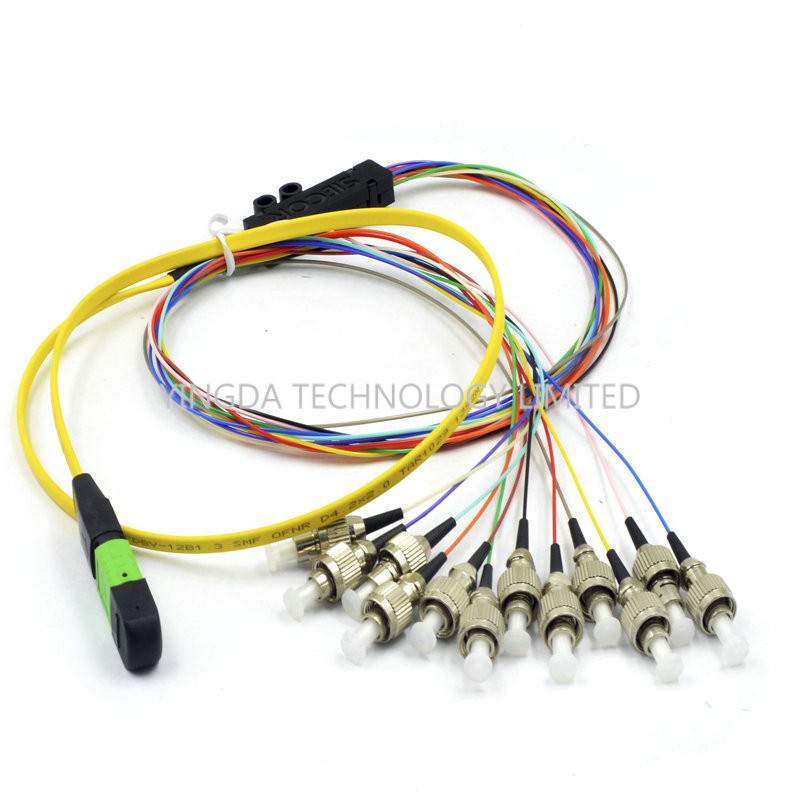

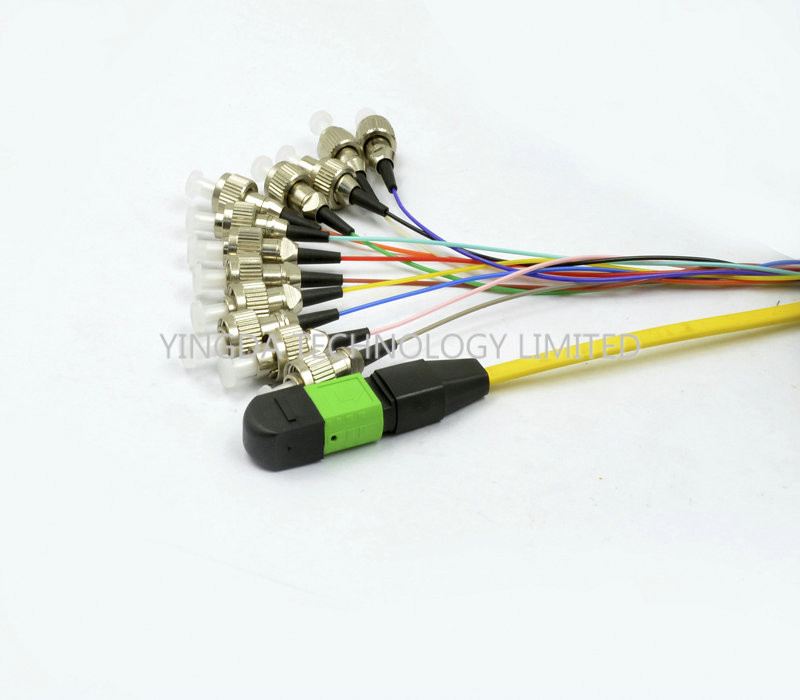

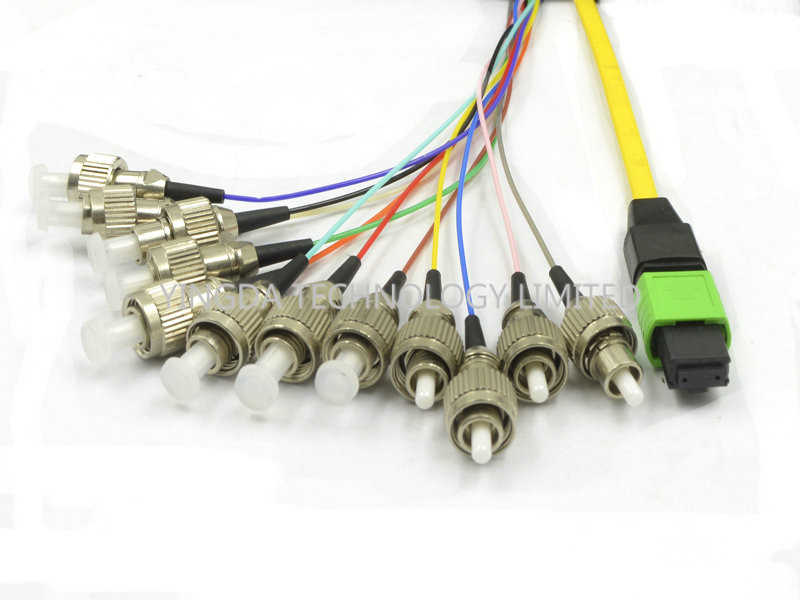

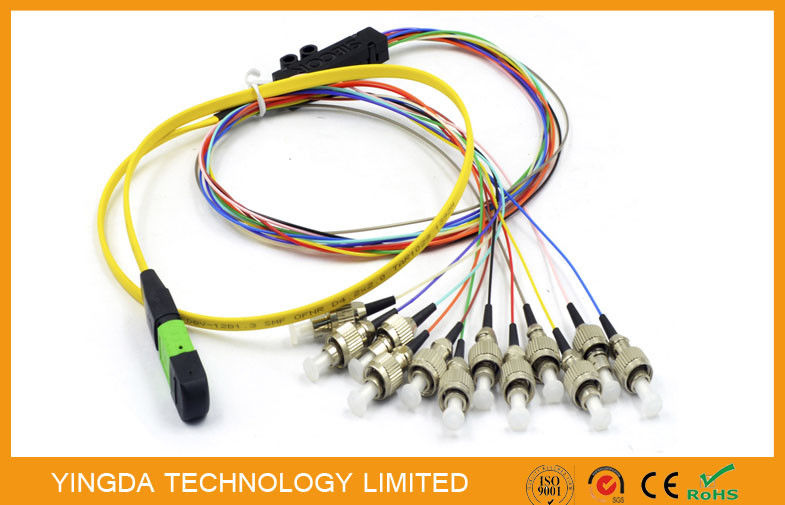

MPO - FC Fanout Trunk Cable MTP MPO Cable Ribbon SM 0.9mm 12 Fibers
MPO fiber optic patch cord is composed of high precision connectors and cables, suitable for
telecommunication system high density network connectivity solutions. The outside of the
connector is precise plastic parts, including push and pull plug locking mechanism, precise
PIN needle to ensure accurate matching. Generally use 4 core, 8 core, 12 core optical fiber
ribbon cable. MPO optical fiber jumper has high accuracy ferrule and high quality optical
fiber cable, carefully manufactured by our company's unique grinding technology, the ferrule
end face have both type: PC and APC. It also has high precise MPO adapter, low insertion
loss, which ensures long-term optical stability and mechanical properties.
Features
Technical Specification
|
MPO/MTP Connector |
Standard SM MT Ferrule |
Low Loss(Elite) SM MT Ferrule |
Standard MM MT Ferrule |
Low Loss MM MT Ferrule |
|
|
Insertion Loss |
Typical (dB) |
0.35 |
0.20 |
0.35 |
0.20 |
|
Maximum (dB) |
0.75 |
0.35 |
0.60 |
0.35 |
|
|
Return Loss (dB) |
≥50 for APC(8 Angle Polish) |
≥20 for PC |
|||
|
≥35 for PC |
… |
||||
|
Male/Female |
Mate:With Pins,Female:Without Pins |
||||
|
Exchange abilty (dB) |
≤0.3(Connect Randomly) |
||||
|
Tensile Strength (dB) |
≤0.3(Max 66N) |
||||
|
Vibration (dB) |
≤0.3(10-55Hz) |
||||
|
Temp Range (dB) |
≤0.3(-40~75℃,42Cycles) |
||||
Ordering Information
MPO-male/APC/12F-FC/UPC/SM/Φ0.9-L/L1-RJ
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩
|
① |
Connector Type 1# |
MPO-female, MPO-male |
|
② |
End face |
APC,PC |
|
③ |
Fiber Count |
4,8,12 & 24 MT Fibers |
|
④ |
Connector Type 2# |
MPO/female*,MPO-male,FC,SC,ST,MU,LC,E2000 |
|
⑤ |
End face 2# |
PC,UPC,APC |
|
⑥ |
Fiber Mode |
SM=Single Mode,MM=Multi Mode(50,62.5,OM2,OM3,OM4) |
|
⑦ |
Pigtail Diameter |
Φ2,Φ0.9 |
|
⑧ |
Cable Length |
L=1,2,3,4… Meter |
|
⑨ |
Pigtail Length |
L1=0.5,0.6,1.0 Meter |
|
⑩ |
Temp Range |
RJ:Jacket Ribbon Cable,RB:Bare Ribbon Cable,MC:250um mini round cable |
video
|
|
