100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS

Brand Name: YINGDA
Model Number: ADSS
MOQ: 2km
Price: negotiable
Delivery Time: 10 days after payment
Payment Terms: Western Union, T/T
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Fiber Count:
48 Cores
Fiber Type:
G652D Corning Fiber
Outer Sheath:
PE AT
Package:

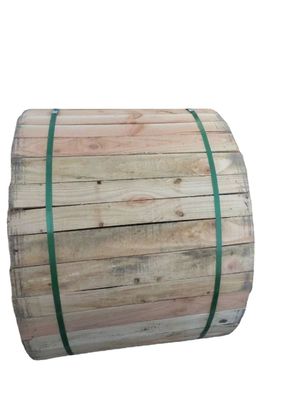

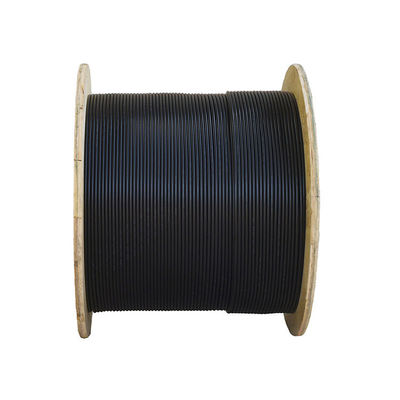

4KM Per Drum Reel
Cable Color:
Blue, Orange, Blue, Brown, Grey, White, Red, Black...
Span:
100meter
Inner Sheath:
PE Material
Packaging Details:
2km/reel
Supply Ability:
100,000 pcs per month
Highlight:

100M Span Optical Fiber Cable

,

48 Cores Optical Fiber Cable

,

ADSS Optical Fiber Cable

Product Description

48 Cores All dielectric Self Supporting Power Optical Fiber Cable ADSS 100M Span

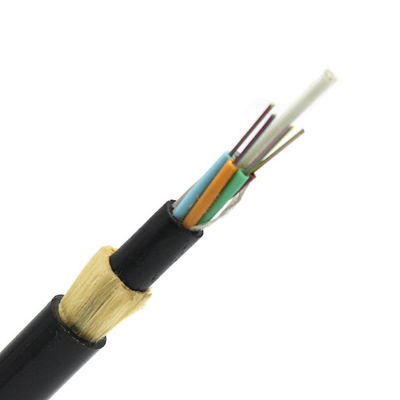

The ADSS optical cable adopts a loose layer twisted structure, which wraps 250um fibers into a loose tube made of high modulus material, and the loose tube is filled with waterproof compounds. The loose sleeve and filled rope tail sleeve are non-metallic center reinforced FRP twisted into a compact cable core, and the gaps of the cable core are filled with water blocking ointment. Extrude the polyethylene PE inner sheath outside the cable core, then twist the aramid fiber that serves as a reinforcement, and finally extrude the polyethylene PE sheath or electric trace resistant AT sheath.



100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 0



72Cores ADSS Cable Technical parameters

Cable type ADSS
Fiber count 12-144cores (if other, please contact with sales team!)
Span (m) 100 200 300 400 500 600 700 800 900 1000
Calculate cross-sectional area (mm2) 116.14 118.17 121.13 123.22 127.9 128.72 132.68 134.73 151.57 156.15
Fiber qty/tube 6 6 4 4 4 4 4 4 6 6
Cable diameter(mm) 11.8 11.9 12.2 12.58 12.7 13 13.8 14.1 14.5 16.1
Rated Tensile Strength RTS(KN) 9 13 18 22 27.55 34.2 38.95 44.65 51.3 57.6
Maximum allowable tension EDS (KN) 3.6 5.2 7.2 8.8 11.02 13.68 38.95 44.65 51.3 57.6
Elastic modulus (KN/mm2) 7.8 9.63 12.92 14.85 17.97 20.81 22.69 24.79 26.43 28.41
Thermal expansion coefficient (1/℃*10-6) 10.41 7.85 4.71 3.71 2.55 1.8 1.41 1.04 0.79 0.53
Cable weight (kg/km) ≤120.6 ≤124.4 ≤130.4 ≤136.6 ≤140.9 ≤146.1 ≤165.2 ≤171.1 ≤173.2 ≤179.1
Minimum allowable bending radius (mm) Operation: 15D, laying: 25D
Maximum drum length(m) 6000
Note; the above data is for reference only



ADSS Cable Features

  • Lightweight, small cable diameter, reducing the impact of ice and wind, as well as the load on towers and supports
  • Adopting AT sheath, with superior resistance to electric marks
  • Excellent tensile and temperature performance
  • Capable of continuous electrical installation
  • The span is huge, and the maximum span can exceed 1000 meters
  • The expected lifespan is greater than 30 years.



YINGDA ADSS cable advantage compare with others:



1 Clear printing

Laser printing, the content can be customized, mainly including information such as fiber optic cable specifications, models, years, operators, meters, etc., with clear printing and sufficient meters.

100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 1

2. Special ointment to protect the fiber core

Ointment can effectively prevent the immersion of water and damage to optical fibers due to friction during the production of optical cables, thereby extending their service life.

100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 2



3. FRP reinforcement

Resistant to bending, strong toughness, and tensile strength, making it easy to lay optical cables over long distances outdoors

100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 3



4. New imported aramid yarn

Brand new imported aramid yarn with good toughness and high tensile modulus, suitable for long-distance pipeline laying

100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 4


5. PE sheath

PE/AT material sheath (PE material can be selected below 35KV), with a smooth surface, flame retardant, high strength, aging resistance, easy peeling, and long service life.

100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 5



6. Telecom grade standard G652D optical fiber

Low attenuation, stable, Naiwan, good flexibility, and light weight. After 5 processes of testing, ensuring 100% qualification before leaving the factory, providing customers with high-quality assurance.



100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 6



OEM &ODM service are available, the process will be like following:

  • Consulting services
  • professional quotation
  • final order placement
  • shipment and transportation
  • transaction completion
  • professional after-sales service
  • on-site acceptance



100M Span Optical Fiber Cable 48 Cores All Dielectric Self Supporting Power ADSS 7
