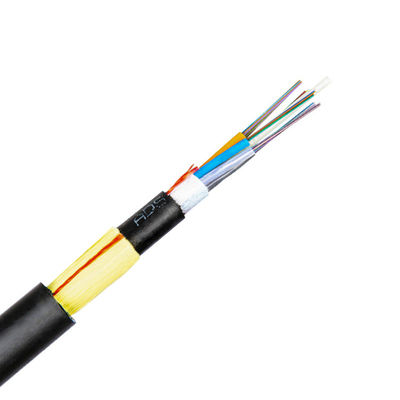

72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor

  • 72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor
  • 72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor
  • 72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor
  • 72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor
Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number ADSS
Minimum Order Quantity 2km
Price negotiable

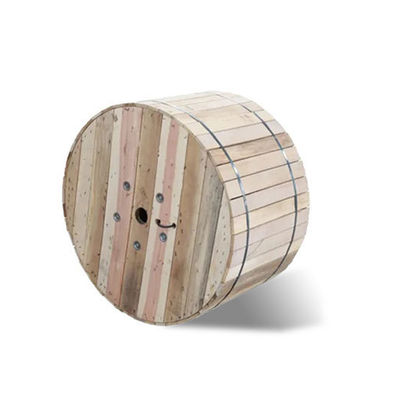

Packaging Details 2km/reel
Delivery Time 10 days after payment
Payment Terms Western Union, T/T
Supply Ability 100,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count 24cores To 144cores Fiber Type G652D G657A
Outer Sheath PE AT Package 4KM Per Drum Reel
Cable Color Fiber Code Span 100meter, 200meter, ... 1000meter
Inner Sheath PE Material
High Light

72 Cores Optical Fiber Cable

,

All Dielectric Optical Fiber Cable

,

ADSS Optical Fiber Cable
Leave a Message
Product Description

72 Cores All dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor

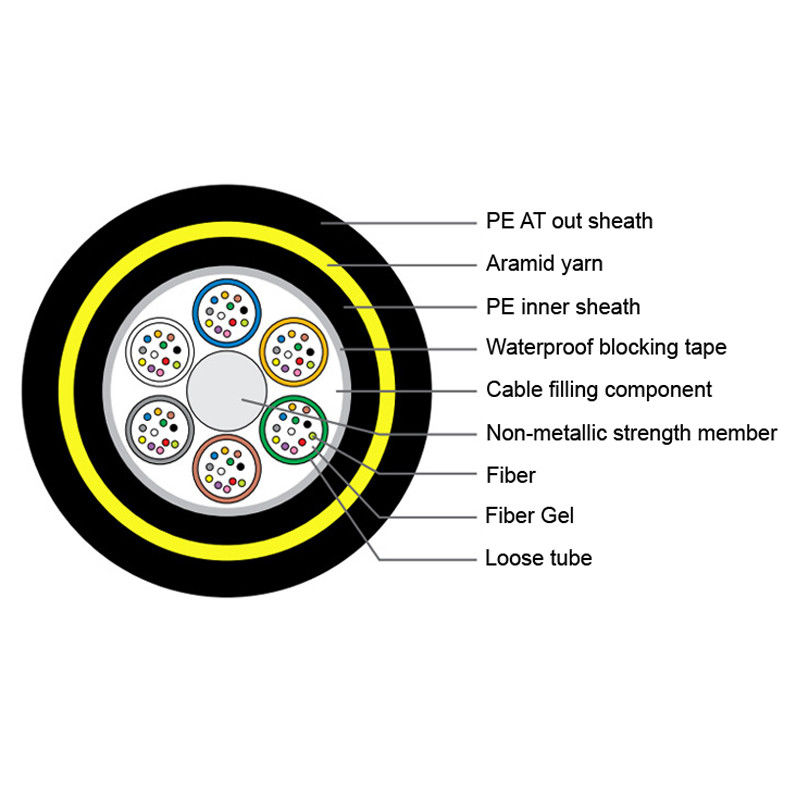

The ADSS optical cable adopts a loose layer twisted structure, which wraps 250um fibers into a loose tube made of high modulus material, and the loose tube is filled with waterproof compounds. The loose sleeve and filled rope tail sleeve are non-metallic center reinforced FRP twisted into a compact cable core, and the gaps of the cable core are filled with water blocking ointment. Extrude the polyethylene PE inner sheath outside the cable core, then twist the aramid fiber that serves as a reinforcement, and finally extrude the polyethylene PE sheath or electric trace resistant AT sheath.

72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor 0

72Cores ADSS Cable Technical parameters

Cable type ADSS
Fiber count 12-144cores (if other, please contact with sales team!)
Span (m) 100 200 300 400 500 600 700 800 900 1000
Calculate cross-sectional area (mm2) 116.14 118.17 121.13 123.22 127.9 128.72 132.68 134.73 151.57 156.15
Fiber qty/tube 6 6 4 4 4 4 4 4 6 6
Cable diameter(mm) 11.8 11.9 12.2 12.58 12.7 13 13.8 14.1 14.5 16.1
Rated Tensile Strength RTS(KN) 9 13 18 22 27.55 34.2 38.95 44.65 51.3 57.6
Maximum allowable tension EDS (KN) 3.6 5.2 7.2 8.8 11.02 13.68 38.95 44.65 51.3 57.6
Elastic modulus (KN/mm2) 7.8 9.63 12.92 14.85 17.97 20.81 22.69 24.79 26.43 28.41
Thermal expansion coefficient (1/℃*10-6) 10.41 7.85 4.71 3.71 2.55 1.8 1.41 1.04 0.79 0.53
Cable weight (kg/km) ≤120.6 ≤124.4 ≤130.4 ≤136.6 ≤140.9 ≤146.1 ≤165.2 ≤171.1 ≤173.2 ≤179.1
Minimum allowable bending radius (mm) Operation: 15D, laying: 25D
Maximum drum length(m) 6000
Note; the above data is for reference only



ADSS Cable Features

  • Lightweight, small cable diameter, reducing the impact of ice and wind, as well as the load on towers and supports
  • Adopting AT sheath, with superior resistance to electric marks
  • Excellent tensile and temperature performance
  • Capable of continuous electrical installation
  • The span is huge, and the maximum span can exceed 1000 meters
  • The expected lifespan is greater than 30 years.

72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor 172 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor 272 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor 3

72 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor 472 Cores All Dielectric Self Supporting Power Optical Fiber Cable ADSS PE AT Black Outdoor 5
