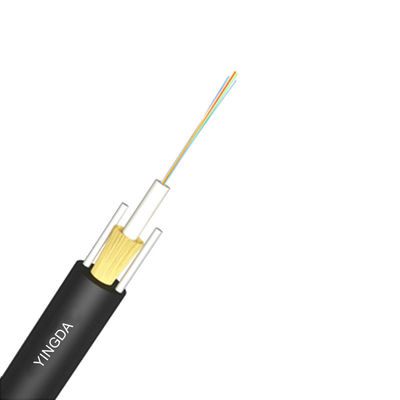

Non-metal Central Loose Tube Outdoor Round Cable 7.2mm GYFXTY

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Outer the PBT loose tube, there are aramid yarn (kevlar) for strength member, and two parallel FRP strength member are placed at both two sides. The cable is completed with a polyethylene (PE) sheath.

Application

Aerial mount or Duct

Features

Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Crush resistance and flexibility.
FRP ensure tensile strength.
Small diameter, light weight and friendly installation.

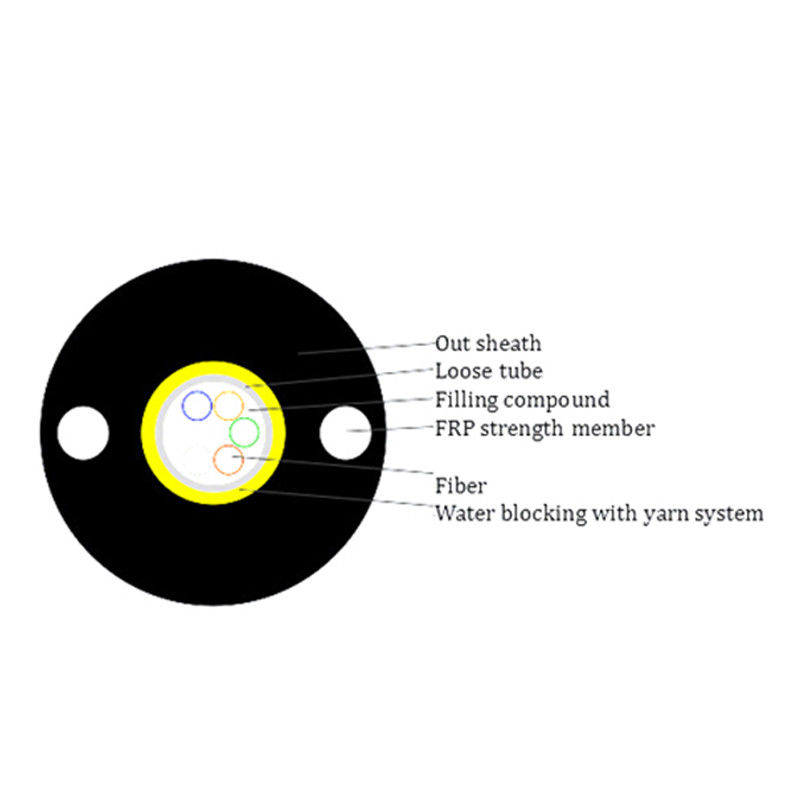

Cable Structure

Cable Type	GYFXTY
Number of fiber	2~24core
Moisture Barrier	Water blocking tape
Loose tube	material	PBT
	diameter	Ф2.2(outer/inner)
Tube-filling	Tube filling compoun
Strength member	material	FRP
	diameter	2 pcs
Outer sheath	material	PE
	diameter	1.8±0.2mm

Fiber Color

Number of fiber per tube 8cores	1	2	3	4	5	6
	Blue	Orange	Green	Brown	Grey	White
	7	8	9	10	11	12
	Red	Black	Yellow	Violet	Pink	Aqua
Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead.

Cable Mechanical Characteristic

core	Cable diameter	weight
2~24	7.2mm	45±2kg/km
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	Short term	20D
Min allowable Tensile Strength(N)	Long term	500
Min allowable Tensile Strength(N)	Short term	1200
Crush Load (N/100mm)	Long term	300
Crush Load (N/100mm)	Short term	1000
Operation temperature (℃)	-40+70
Installation temperature(℃)	-20+60

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
Condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
Attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
Attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispersion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispersion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispersion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable cutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Discontinuity
Difference backscatter coefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimater	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4	----	----	----

Package

1.Packing material: Wooden drum

2.Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
