FTTH NAP CTO 1x16 Fiber Optic Splitter Distribution Box FAT Black Wall Mounting

MOQ: 200pcs, first order accept small order
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box, 20pcs/carton box
Delivery Period: 5-8working days
Payment Method: T/T, Western Union, MoneyGram, L/C
Supply Capacity: 50k per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,CE, ROHS
Model Number
FDB0216k-B
Material:
PC+ABS
Capacity:
36 Fibers Nap Box
Adapter Qty:
18 Pcs SC Adapter
Split Ratio:
1x2 1x4 1x8 1x16 Splitter Module
Color:
Black
Size:
304*185*115mm
Connector Insertion Loss:
<0.2dB
Box Type:
Ftth Optical Distribution Box
Cable Port:
Cable Glands Or Mid Span Ports: 2 In 16 Out
Cable Diameter:
16mm Inlet, 2x3mm Drop Cable Outlet
Highlight:

FTTH Fiber Optic Splitter Distribution Box

,

1x16 Fiber Optic Splitter Distribution Box

,

FTTH NAP CTO

Product Description

FTTH NAP CTO 1x16 Fiber Optic Splitter Distribution Box FAT Black Wall Mounting





FDB0216K Fiber optic splitter distribution box is widely used as a termination point for feeder cable to connect with drop cable. The fiber splicing ,splitting, distribution and storage can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network. This splice closure can be used indoor or outdoor telecommunication network.



NAP 16Cores Features

  • Water-proof design with IP65 Protection grade.
  • Integrated with splice cassette and cable management system.
  • Manage fibers in a reasonable fiber radius condition.
  • Fiber bend radius control more than 35mm.
  • 1 uncut cable port for feeder cables.
  • Fixed hermetic seals in all its grooves
  • The entire fiber route protected by transport tube
  • Complete opening of the hinges with stop included
  • Protected and organized pigtail space
  • Support customized services such as logo screen printing.



16 Port Drop Cable Box Specification



Model FDB0216K-B
Size (H×W×D ) 304*185*115mm
Material PC+ABS
Color Black / White / Gray (Customize)
Splice Capacity 36 Cores
Splitter Capacity 2 Sets
Splitter Type SC LGX Module 1x8 or 1x16
Adapter Type SC
Adaptor Capacity 18 Pcs
Incoming Cable Port 2x(Φ10~14mm), 1x Mid-span 10~14mm
Drop Cable Port 16 Ports
Installation Method Wall, Pole Mounted
Operating tempertaure -10~+70℃
Life time 25 years



1:16 PLC Splitter Termination Box Product Details



The box is used outdoor, wall mount , pole mount , the box back itself with wall mount brackets, add 2pcs stainelss steel straps to pole mount.

FTTH NAP CTO 1x16 Fiber Optic Splitter Distribution Box FAT Black Wall Mounting 0

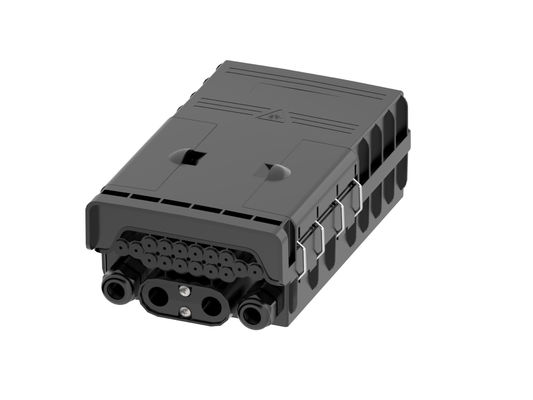

The box is made of ABS PC high stregnth engineering plastic, and the cable ports is 1oval port, 2cable glands, and 16pcs drop cable round ports.

It is quite popular in fiber to the home network.

FTTH NAP CTO 1x16 Fiber Optic Splitter Distribution Box FAT Black Wall Mounting 1

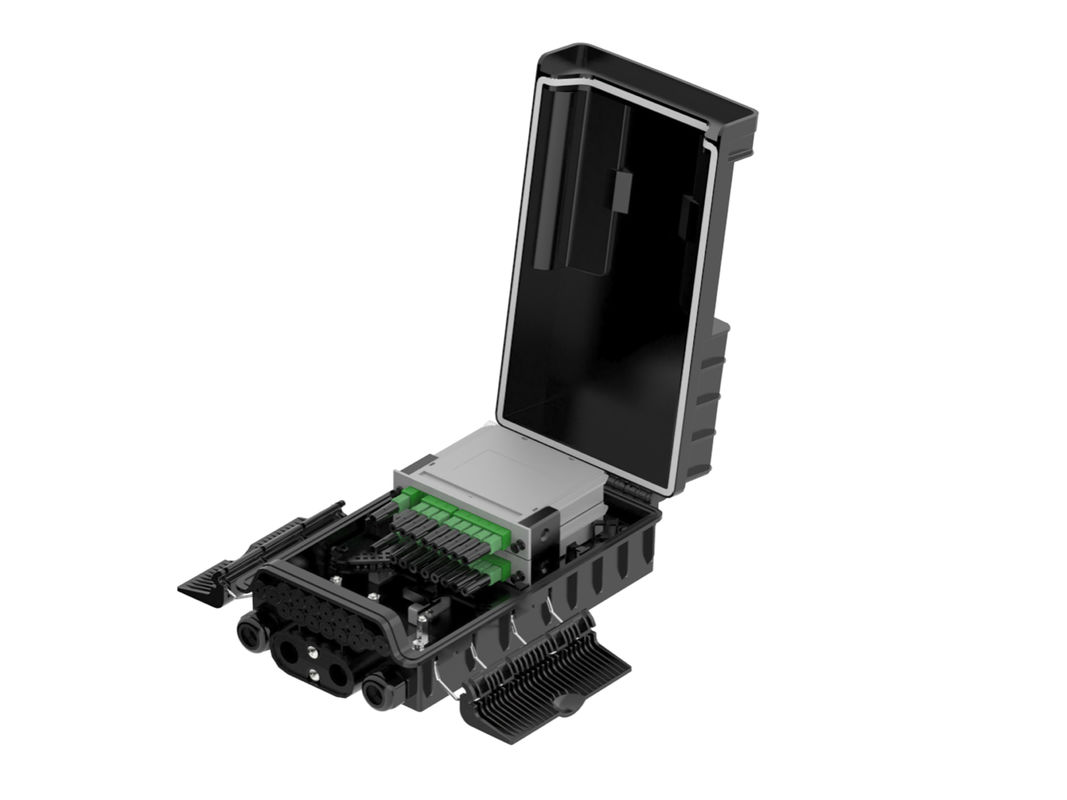

The splitter plate can use 2pcs 1x8 splitter module or 1pc 1x16 splitter module, it can be flip up 90 degree.

FTTH NAP CTO 1x16 Fiber Optic Splitter Distribution Box FAT Black Wall Mounting 2

The back of the adapter plate is for cable rougint and storage,large space for 1.5meter long cable. The lower layer is a splice tray, which is 16cores fusion slots for sleeves, which bring the splitter input to fusion with the feeder cable.

FTTH NAP CTO 1x16 Fiber Optic Splitter Distribution Box FAT Black Wall Mounting 3





The bottom is for feeder cable enter and wiring, there are cable clamps to management fiber optic cable in order, no mess or fiber broken. Reasonable bend radius design.

FTTH NAP CTO 1x16 Fiber Optic Splitter Distribution Box FAT Black Wall Mounting 4
