| Brand Name: | YINGDA |
| Model Number: | GJXFH-02B7 |
| MOQ: | 10 km |
| Price: | Negotiable |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T or western Union |

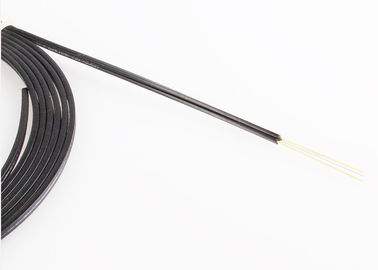

Bow-type FRP Glass Fiber Optic FTTH Drop Cable G657A SM 2Fibers GJXFH Black
Description
Figure 8 fiber optic drop cable is a cable designed specifically for FTTH. It adopts double reinforcement
figure 8 structure, the optical fiber unit is positioned in the centre ,two parallel fiber reinforced plastics
FRP are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath. This
drop cable can directly drop into the building household from the fiber optic splice closure. Particularly
it suitable to use together with fast connector(field installation connector), mechanical splice; also it
can be separate the suspended fiber core and then splice with others.
Features
Application:
◆ Used as access building cable
◆ Used in indoor cabling especially used for FTTH

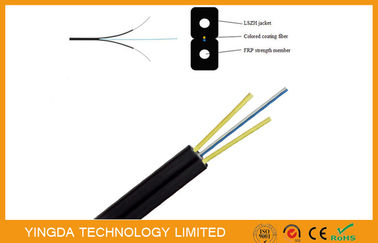

Cable structure:
Technical parameters
|
Cable code |
Fiber |
Cable |
Cable |
Tensile(N) |
Crush |
Crush |
Temperature |
|||
|
Long |
Short |
Long |
Short |
Dynamic |
Static |
|||||
|
GJXFH-01 |
1 |
1.6*2.0 |
5 |
40 |
80 |
500 |
1000 |
30D |
15D |
-20~+60 |
|
GJXFH-01 |
1 |
2.0*3.0 |
8 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-02 |
2 |
2.0*3.0 |
8.5 |
40 |
0 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-04 |
4 |
2.0*3.0 |
9 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-06 |
6 |
3.0*4.0 |
14 |
45 |
85 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-08 |
8 |
3.0*4.0 |
16 |
50 |
90 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-12 |
12 |
3.0*4.0 |
19 |
55 |
95 |
500 |
1000 |
30D |
15D |
|
|
|
||||||||||
|
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||
|
Jacket material |
PE |
LSZH |
||||||||
|
Features: |
||||||||||
|
Special low beng sensitivity fiber provodes high bandwidth |
||||||||||
|
Two parallel FRP strength member ensures good performance |
||||||||||
|
Simplex structure, light weight,high practicability |
||||||||||
|
Low smoke zero halogen and flame retardant sheath |
||||||||||
|
|
