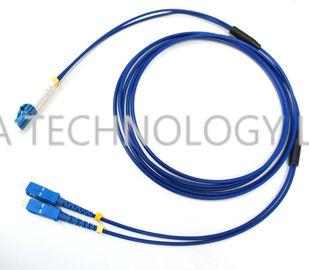

2 Core Steel Armored Fiber Optic Patch Cord LC , FC , SC Duplex Breakout Kits

2 Core Steel Armored Fiber Optic Patch Cord LC , FC , SC Duplex Breakout Kits

  • High Light

    fiber optic jumper

    ,

    multimode patch cord

  • Connector
    LC FC SC ST
  • Fiber Count
    Duplex
  • Insertion Loss
    <0.3dB
  • Cable Length
    Customized
  • Cable Diameter
    2.0mm
  • Fiber Type
    Singlemode SM 9/125um
  • Package
    Wooden Drum In Carton Box
  • Cable Color
    Blue
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FPC-LC-SDX-20-03
  • Minimum Order Quantity
    500 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box, 200pcs / carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    60,000 pcs per month

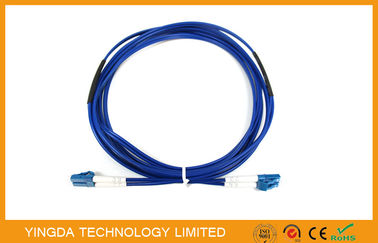

2 Core Steel Armored Fiber Optic Patch Cord LC , FC , SC Duplex Breakout Kits

2 Cores Steel Armored Fiber Optic Patch Cord LC, FC, SC Duplex Breakout Kits





Description



Armored fiber jumpers can be laid directly in the engine room and a variety of

harsh environments, without protection sleeve, to save space,reduce construction

costs, and greatly enhance the ease of network maintenance.



Single Core Armored cable structure

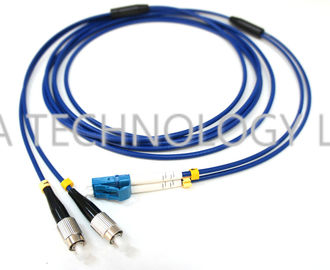

2 Core Steel Armored Fiber Optic Patch Cord LC , FC , SC Duplex Breakout Kits 0



Features

  • Small-diameter, stainless steel sheath tube to protect
  • Can resist improper reversing or damage, high tensile strength,high compressive
  • strength and rodent
  • Without worrying about the damage caused by the construction to the optical fiber
  • and damage in future
  • Construction is more convenient,good safety and reduce future maintenance cost

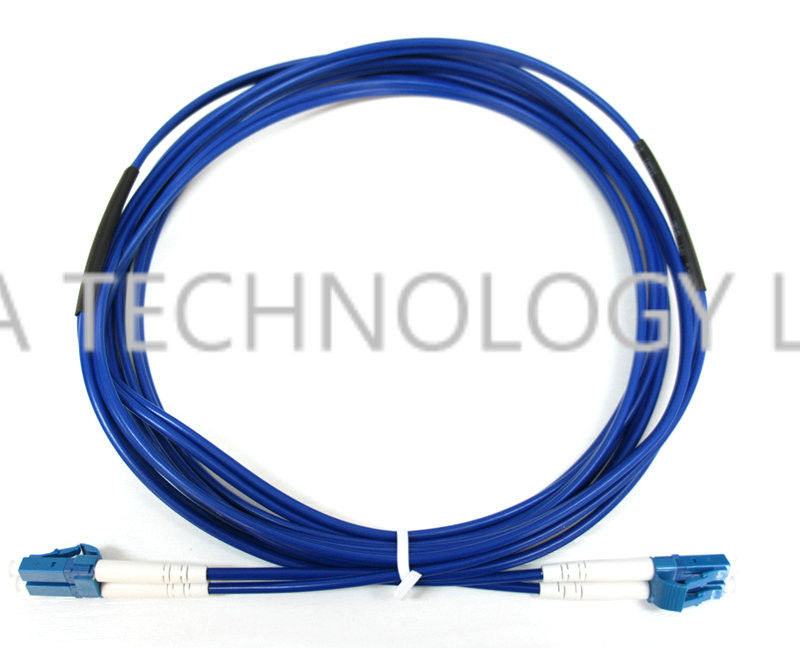

2 Core Steel Armored Fiber Optic Patch Cord LC , FC , SC Duplex Breakout Kits 1



Application

  1. Communications room
  2. FTTH
  3. LAN
  4. Test equipment
  5. Defense readiness
  6. Measuring instruments
  7. Fiber optic sensors
  8. Optical fiber communication systems
  9. Antenna television system
  10. Active optical devices and equipment



Specification



Item

Single mode

Multimode

UPC

APC

Connector

FC/SC/ST/LC

FC/SC/ST/LC

Insertion loss

≤0.2dB

≤0.3dB

≤0.3dB

Return Loss

≥50dB

≥60dB

≥35dB

Repeatability

≤0.1dB

Operating temperature

-40+85

Mechanical durability

≤0.2dB(500 times)

Tensile strength

>90N

Compressive strength

>1500N/100mm

Gross weight

25 KG/KM
