MTP Cassette Module MPO -12 LC Duplex Hydra Cable, MTP to 12 x LC Duplex Module
  • name
  • name
  • name
  • name

MTP Cassette Module MPO -12 LC Duplex Hydra Cable, MTP to 12 x LC Duplex Module

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1 pc/ box, 5 pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union, T/T
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MTPP-4U
Connector:
MPO / MTP - LC SC FC ST
Max Capacityy:
24 Fibers
Application:
Data Center, High Density
Cable Length:
1meter/ 1.5meter
Cable Diameter:
0.9mm
Fiber Type:
SM OM1 OM2 OM3 OM4
Highlight:

MPO fanout cable

,

mpo patch cable

Product Description

MTP Cassette Module MPO -12 LC Duplex Hydra Cable, MTP to 12 x LC Duplex Module





YINGDA Offers a wide range of MTP/MPO products including single mode or multimode MPO and MTP Cassettes, panels, truck cable, harness cable, or fanout cable. The standard cassettes can accommodate 12 and 24 port configurations. It provide secure transition between MTP/MPO

 and LC or SC discrete connectors. Modular system also allows for rapid deployment of high density data centre infrastructure as well as

improved troubleshooting and reconfiguration during moves, adds and changes. Cassettes can be mounted in 1U, 2U, 3U, 4U19” multi-slot chassis.





 MPO Cassette Features



1. MPO cassettes are designed to enable a fiber network to be installed and commissioned  in the short possible time.



2. All the components are pre-assembled and easy to be installed to the shelf. It is a perfect solution for  optical fiber installations and                        management.



3. It is easy for installation and operation, 19'' standard structure, Sliding tray design.



4. Available in all Fiber types and all connector options: FC/SC/ST/LC ,etc.



5. MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fan-outs to deliver optical performance and reliability.



6. Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed net      works.





MTP Modules 2x12F Drawing:

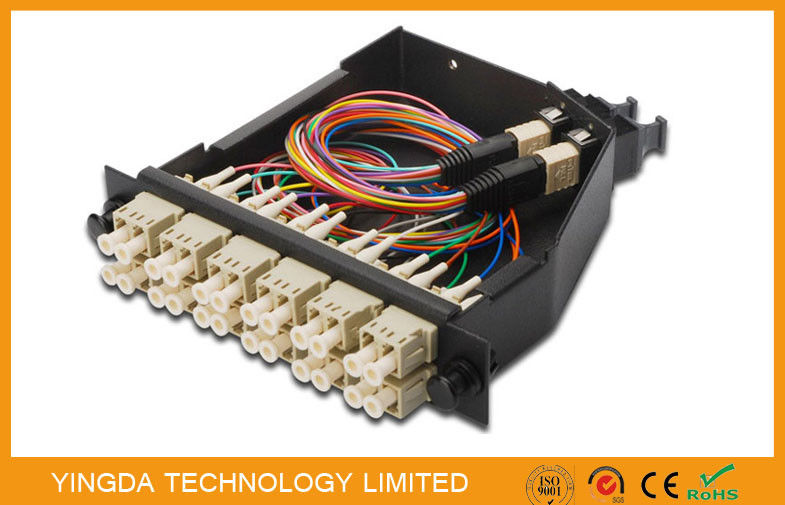

MTP Cassette Module MPO -12 LC Duplex Hydra Cable, MTP to 12 x LC Duplex Module 0

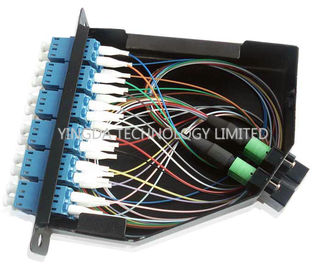

MTP Cassette Module MPO -12 LC Duplex Hydra Cable, MTP to 12 x LC Duplex Module 1





MPO Manufacturer-YINGDA Company

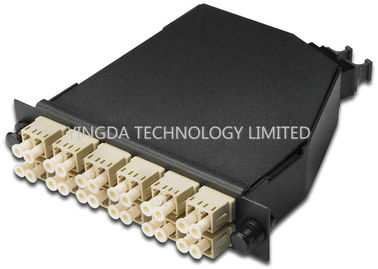

MTP Cassette Module MPO -12 LC Duplex Hydra Cable, MTP to 12 x LC Duplex Module 2
