1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable
  • name
  • name
  • name
  • name

1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1 pc/ box, 5 pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union, T/T
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MTPP-1U -4X
Connector:
MPO MTP LC Connectors
Max Cassette:
4 Pcs
Max Capacityy:
96 Fibers
Application:
Data Center, High Density Network
Cable Length:
0.35meter
Cable Diameter:
20mm
Cable Ports:
4 Round Ports At Back
Box Type:
MPO Patch Panel
Highlight:

MPO fanout cable

,

mpo patch cable

Product Description

1U Rack Mount MTP MPO Patch Panel 19 inch ODF Fiber Optic 4 Cassette MPO LC Cable

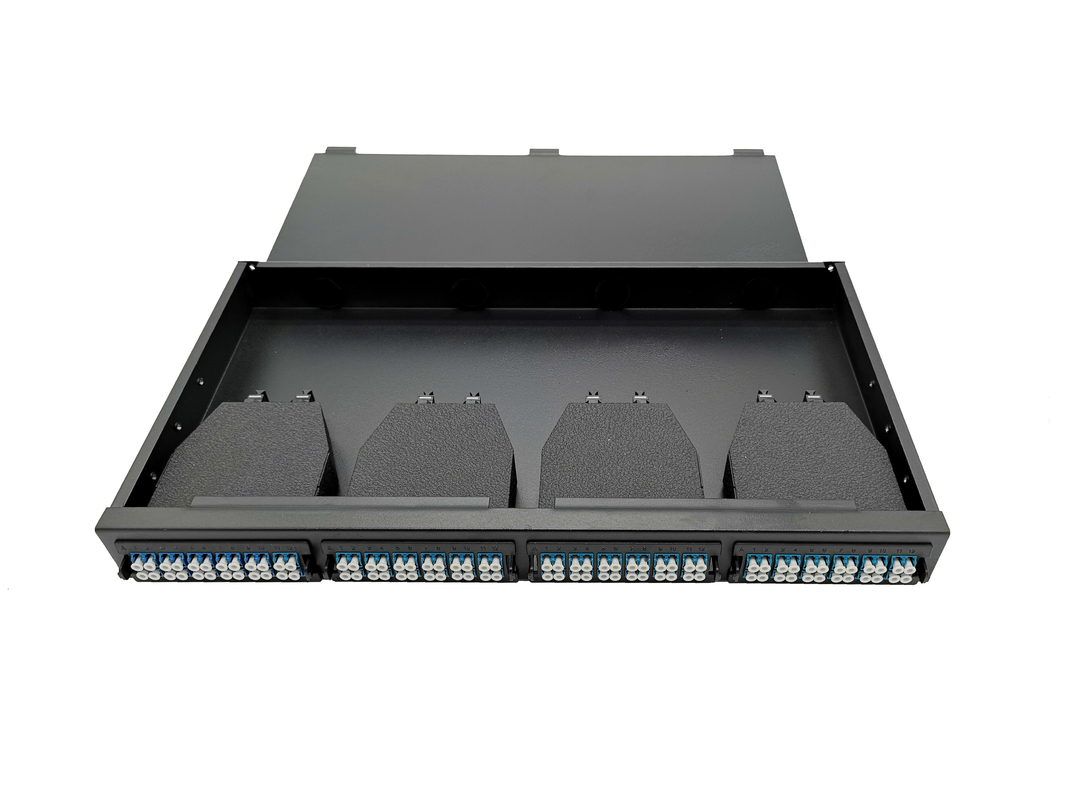

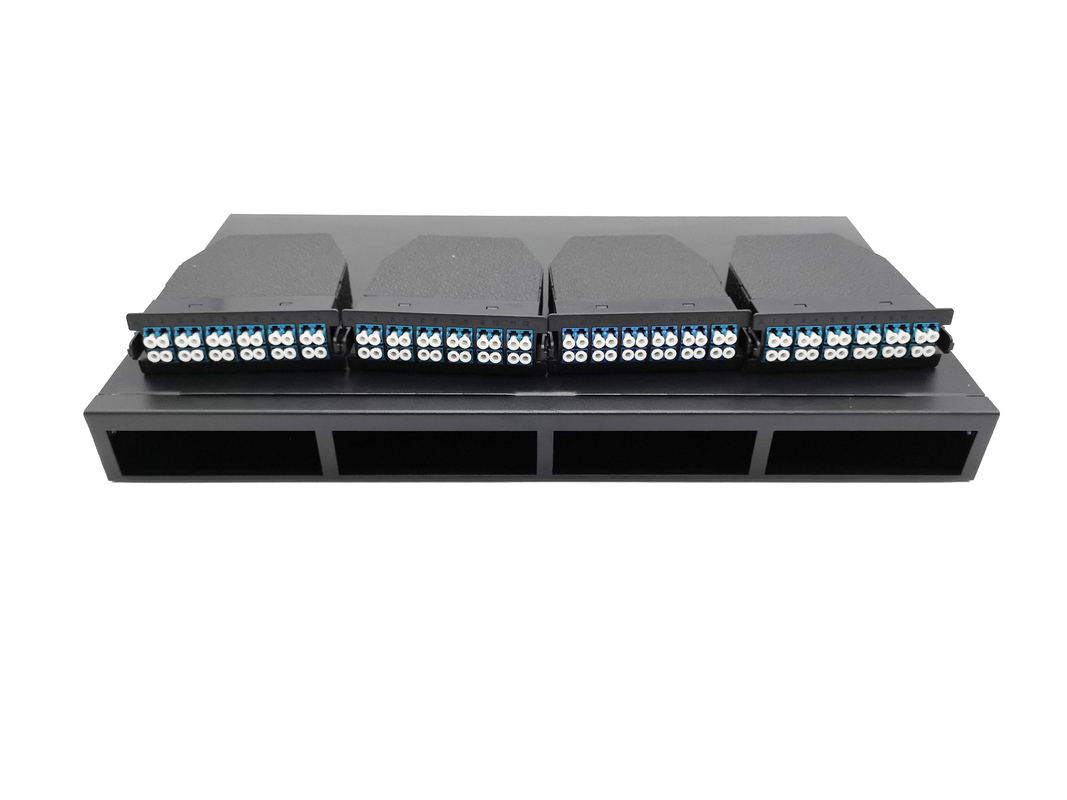

MPO MTP Patch Panel max hold up to 4pcs MPO Cassettes in a 19" rack mount terminal box, 1U height. The patch panel is rack mount, made of cold rolled steel with spray surface. The 4 cassettes is easy to insert and take out by hand, no need screws. It is sound box for MPO MTP data center application, mix fiber connection, storage and management in one set. Blank panels are included for unsed apertures within the patch panel. The 19inch mounting brackets are adjustable to allow th panel to be set further back in the cabinet mounting frames, 1U 2U 3U 4U height is available for fiber expanding.



Specification

MODEL GPRM-1U-4LGX/MPO
Dimension 430*250*1U mm
Material Cold rolled steel
Cable ports 4 in, 96 out
Max capacity 96 Fibers
Cassette qty 4piece
Cassette capacity 24fibers
Connector type LC duplex coupler
Color black



VIDEO of PATCH PANEL

1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 0



Features

  • Easy for installation and operation
  • 19'' standard structure
  • Rack mount in ODF frames
  • Available for the installation of FC/SC/ST/LC adapters
  • FTTX FTTH solutions

1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 1

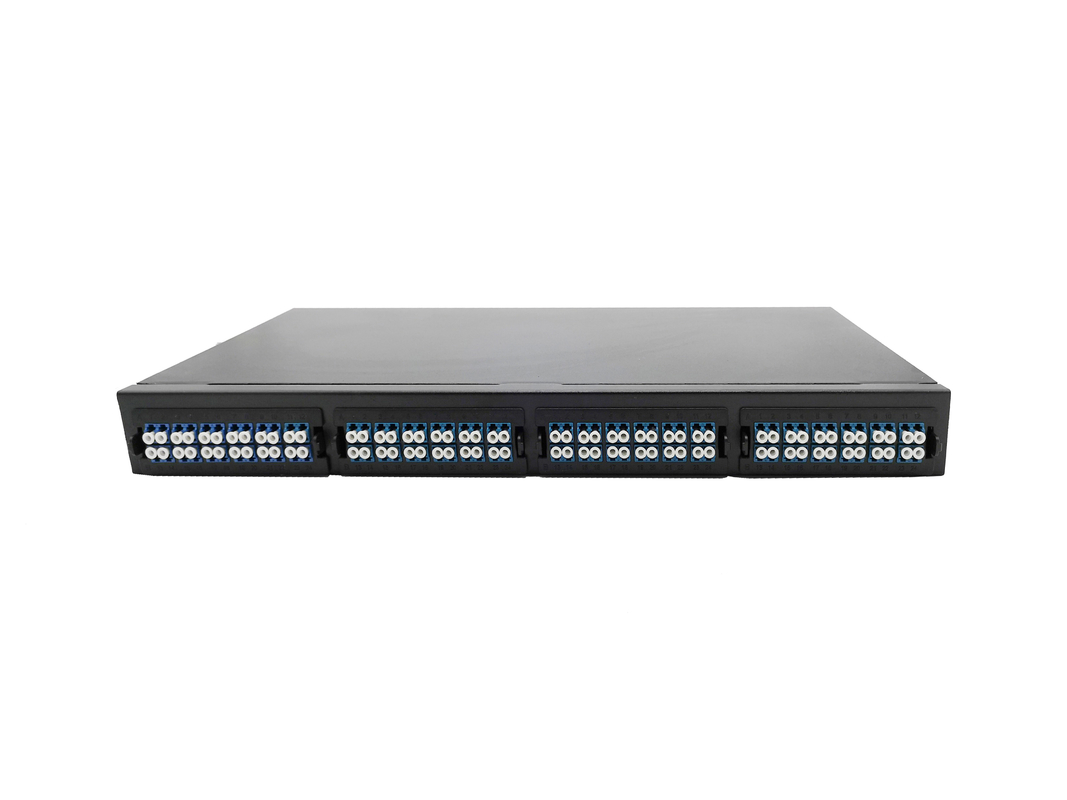

1U rack mount patch panel, suitable for all19inch rack mount optical districution frame, use mounting ears at both sides to fix on ODF.

-----------------------------------------------------------------------------------------------------------------------------------------

1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 2

Cable entry quantity and the cable diameter can be customzed on customer request, all port  will be confiuration with rubber seals for dust proof.



-----------------------------------------------------------------------------------------------------------------------------------------

1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 3

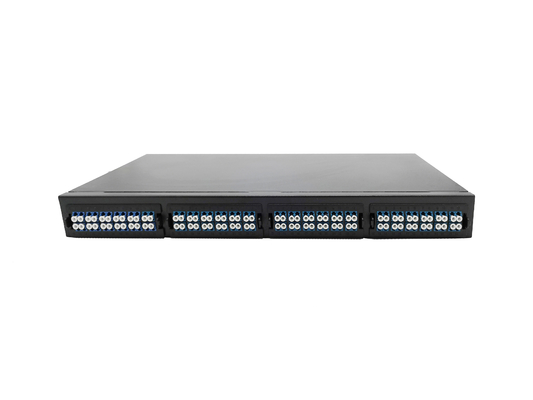

Each patch panel is 96cores fiber optic pigtails distribution in front, meet large capacity for data center network application.



-----------------------------------------------------------------------------------------------------------------------------------------

1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 4

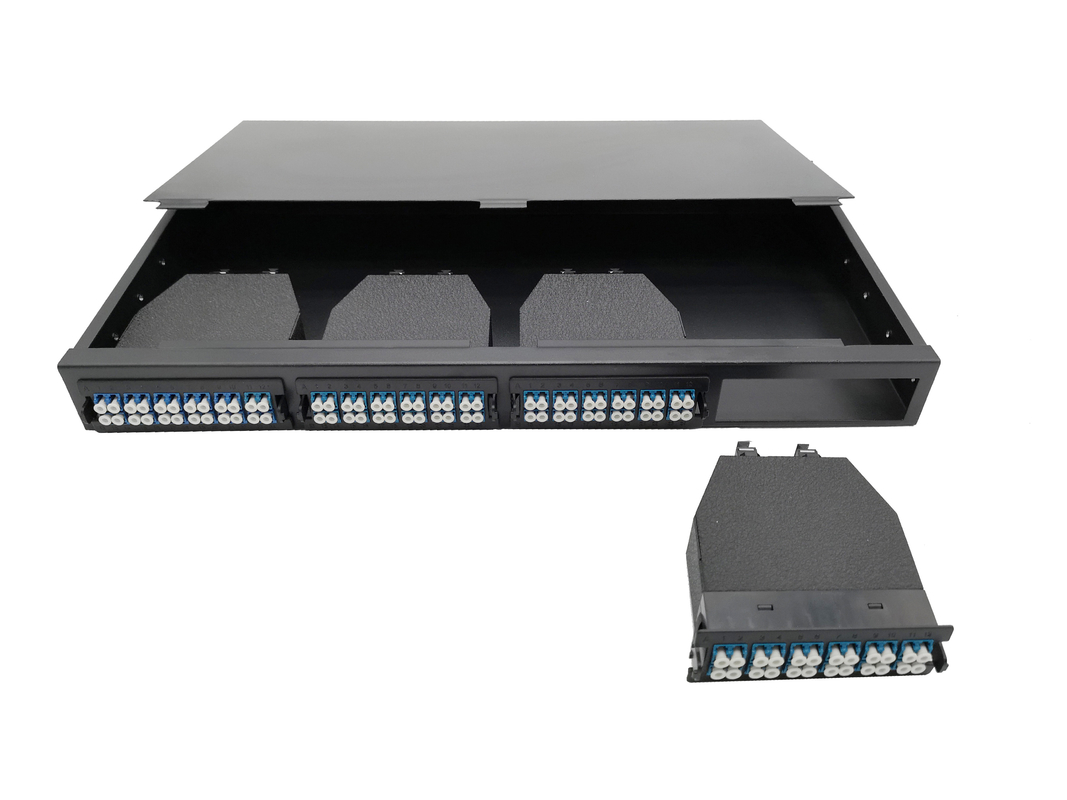

24 Fibers Optical MPO cassette use special materials, and lc duplex adapters without flange in front, back is 2pcs MPO 12 cores adapter A B, inside hold 0.34meter MPO LC patch cord, this cassette can use 8fibers MPO x3pcs, 24fibers MPO*1PC instead.



-----------------------------------------------------------------------------------------------------------------------------------------

Standard items to configurate

1U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 51U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 61U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 71U Rack Mount MTP MPO Patch Panel 19 inch ODF 96 Fiber Optic MPO LC Cable 8



This patch panel can fully load with 8pcs MPO-mpo truck cable, 8pcs 12cores MPO -LC patch cords, 8pcs MPO MTP adapters,  LC duplex adpaters 12*4 = 48pcs, if customer need, we can pre-terminated cable assembly in factory and pack them well before delivery.





Application

  • Data communication applications
  • Data Centre infrastructure
  • Storage Area Network-Fiber Channel
  • Emerging 40 and 100Gbps Protocols compatible



Welcome inquiry at sales@yingdapc.com

TEL+86 18688982406
