Product Description

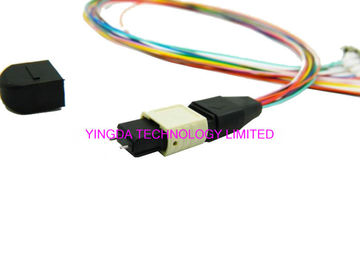

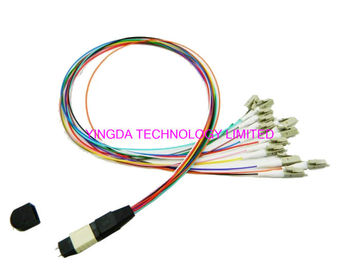

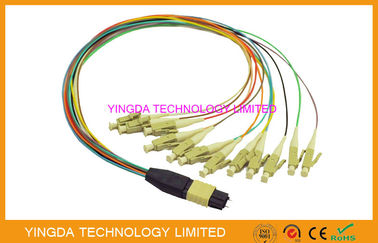

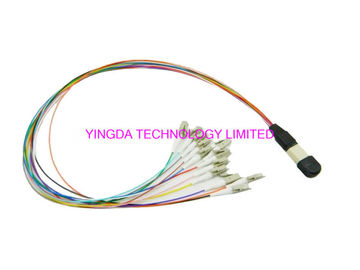

High Density MTP MPO cable - LC 12 Core Hydra Cable Assemblies Male Connectors With Guide Pins MTP MPO cable patch cord

MPO to SM/MM Fan-out/Breakout Harness Cable assembly is mainly used for 10G/40G/100G, the LC harness cable with 0.9mm branch cable, the LC side could adopts uniboot/single boot duplex LC or dual boot duplex LC connector. The harness MPO cable supports both type A and Type B. Different lengths available.
MPO Cable-LC 12 core hydra cable is optimized for 40G QSFP+,10G SFP, 400G OSFP QSFP optics connection and high-density data center application

High Density MTP MPO cable - LC 12 Core Hydra Cable Assemblies Male Connectors With Guide Pins 0
The choice of the supports higher speed Ethernet and Fiber Channel applications (OM3, OM4 and OS1/OS2 fibers), and applications with legacy multimode fiber (OM1 or OM2).
MPO Male (with guide pins) assembled with 0.9mm cable to single-fiber connectors.
All types of single-fiber connector interface available for choices (SC, LC, E2000, MTRJ, etc.)

MTP to LC Breakout Cable Application
For installing inside MPO fiber cassette module
High Density MTP MPO cable - LC 12 Core Hydra Cable Assemblies Male Connectors With Guide Pins 1

MTP MPO Fiber Breakout Cable Optical properties

Item			Unit	Parameters
Connector			--	SM standard ferrule	SM elite low loss ferrule	MM standard ferrule	MM elite low loss ferrule
IL	Typical	(dB)		0.35	0.20	0.35	0.20
	Maximun	(dB)		0.75	0.35	0.60	0.35
RL			(dB)	≥60 for APC (8 Angle Polish)		≥20 for PC
			(dB)	≥50 for PC		--
Female / male			(dB)	Male: With Pins, Female: Without Pins
Tensile strength			(dB)	≤0.3 (Max 66N)
Vibration			(dB)	≤0.3 (10 ~ 55Hz)
Temperature cycle			(dB)	≤0.3 (-40 ~ 75℃, 21Cycles)

Fiber MPO Connector End face parameters

Item	Unit	Parameters
Item	Unit	SM	MM
X curvature radius	(mm)	Min 2000
Y curvature radius	(mm)	Min 5
Fiber height	(nm)	1000 ~ 3500
overall optical height difference	(nm)	MAX: 500
adjacent fiber height difference	(nm)	MAX: 300
X axis angle	( ° )	-0.2 ~ 0.2
Y axis angle	( ° )	PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2	-0.2 ~ 0.2
optical fiber depression	(nm)	N/A	-100 ~ 200

MTP Hardnedd Cable Fanout Order information

Item	Unit	Parameters
①Connector type 1#	--	MPO-female* , MPO-male
② Endface 1#	--	PC , APC
③ Fiber count	--	2 , 4 , 8 , 12 & 24 MT Fiber
④Connector type 2#	--	MPO-female* , MPO-male , FC , SC , ST , MU , LC , E2000
⑤ Endface 2#	--	PC , UPC , APC
⑥ Fiber mode	--	SM( OS1 , OS2 ) , MM( OM1 , OM2 , OM3 , OM4 )
⑦ Cable outer diameter	(mm)	Φ2 , Φ3 , Φ4
⑧ Length	( M )	L= 1 , 2 , 3 , 4 ...
⑨ Pigtail Length	( M )	L1=0.5 , 0.6 , 1.0
⑩ Cable type	--	RJ:Jacket Ribbon Cable , RB:Bare Ribbon Cable, MIC:250um mini round cable

※ For female MPO Connector, female can be committed in the ordering information
