Multimode MTP MPO Cable OM3 10G Flat OFNR Ribbon Cable Assembly 12Fibers
  • name
  • name
  • name
  • name

Multimode MTP MPO Cable OM3 10G Flat OFNR Ribbon Cable Assembly 12Fibers

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1 pc/ box, 160 pcs/carton box
Delivery Period: 7days after payment
Payment Method: Western Union,T/T
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MPOf-12LC-OM3-09
Connector:
MPO Female
Fiber Type:
10G OM3 50/125um
Cable Type:
Falt Ribbon Cable
Fiber Count:
12 Fibers LC
Insertion Loss:
<0.3dB
Package:
Vacuum Packing
Highlight:

MPO patch cord

,

mpo patch cable

Product Description

Fanout MPO to LC Patch Cord, 12 Fibers MPO OM3 10G Flat OFNR Ribbon Cable Assembly 12Fibers



MPO Fan-out Cable Assemblies are designed for high density applications with require high performance and speedy installation without on-site termination. All fan-out cable assemblies  are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity.



Features

  1. High Performance in IL & RL
  2. Available in 8,12 and 24 fiber
  3. Precise dimension
  4. Customized furcation length to cater for different installation situations
  5. Single-fiber connector interface available in SC, LC, MTRJ, in forms of Simplex or Duplex channel
  6. The choice of the supports higher speed Ethernet and Fiber Channel applications (OM3, OM4 and OS1/OS2 fibers), and applications with legacy multimode fiber (OM1 or OM2).


Applications

  1. Data Centre Infrastructure
  2. Storage Area Network-Fiber Channel
  3. Emerging 40 & 100Gps Protocols


Specification

MPO connectors


Fiber type

Single mode

Multimode

Parameter

Standard

Low loss

Standard

Low loss

Max. IL

<0.7dB

<0.35dB

<0.7dB

<0.35dB

Return loss

>60dB

None

Durability

500matings

Operating temperature

-40 ~+85 °C

Test wavelength

1310nm

850nm


Generic Connectors


Fiber type

Single mode

Multimode

Parameter

UPC

APC

PC

Max. IL

<0.3dB

Return loss

>55dB

>60dB

>25dB

Durability

1000matings

Operating temperature

-40 ~+80 °C

Test wavelength

1310nm

850nm

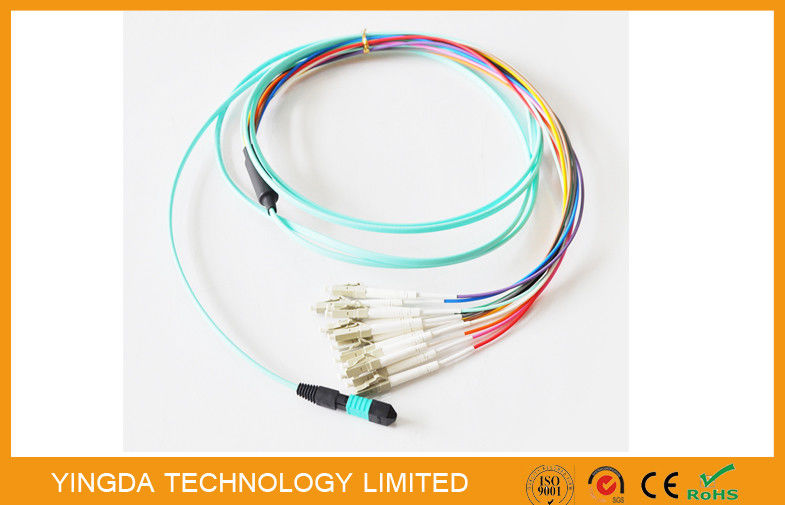

Multimode MTP MPO Cable OM3 10G Flat OFNR Ribbon Cable Assembly 12Fibers 0

Order information


P/N

Description

MPOm-12LC-OM3

MPO Fan-out patch cord, OM3 (50/125um),

MPO Male-12x LC UPC 1m Orange

MPOm-62LC-OM3

MPO Fan-out patch cord, OM3 (50/125um),

MPO Male-6xDuplex LC UPC 1m Orange

MPOm-62LC-OM3-U

MPO Fan-out patch cord, OM3 (50/125um),

MPO Male-6xDuplex LC UPC 1m Orange uni-boot

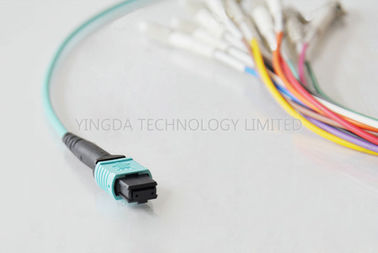

Multimode MTP MPO Cable OM3 10G Flat OFNR Ribbon Cable Assembly 12Fibers 1

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

C
C*s
France Nov 19.2024
Helpful (2)
Product was exactly as in pictures with good quality and packing.
N
N*n
France Oct 25.2023
Helpful (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
C
C*d
Ecuador Feb 26.2021
Helpful (3)
Excellent quality, as always! Fantastic product and service!
Review Image
Tags:

MPO patch cord,

mpo patch cable,

MPO fanout cable
