12 Fiber MTP Steel Armored Fiber Optical MTP MPO Cable Round , MTP Patch Cord

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1pc/ box,200pcs/carton box
Delivery Period: 7days after payment
Payment Method: T/T,L/C,D/A,D/P
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MTP-MTP-
Connector:
MTP Female Connector
Fiber Type:
SM 9/125um
Cable Type:
Round Cable
Fiber Count:
12fibers
Cable Color:
Blue
Cable Jacket:
LSZH
Insertion Loss:
<0.35dB
Return Loss:
>60dB
Package:
Vacuum Packing
Highlight:

MPO patch cord

,

mpo patch cable

Product Description

12 Fiber MTP Steel Armored Fiber Optical Patch Cord, MTP Truck Cable Assemblies



Description

FTTH steel armored fiber optical patch cords series are made by covering a variety of Japan made SUS304 stainless steel banding on the tight tube of 0.9mm PVC.


By adopting the processing technology of indoor soft optical fiber cable and fine workmanship for producing fiber optic patch cord ,these special fiber optical patch cords are fully protected by steel armored outside the tight tube of 0.9mm PVC.

They have high mechanic performance, reliable optical performance and leading anti-ultraviolet radiation function.These steel armored fiber optical patch cords

apply to the fields of various data communication, outdoor emergency, buildings without protective cabling, And presently advocated cabling connection of FTTH etc



Features

  1. Small volume,high fiber density
  2. High tensile resistance & anti-pressure
  3. Used in emergency field
  4. High Feasibility


Application

  • FTTH
  • National defense communications
  • UV protection
  • Building unprotected cabling



Specification


Item

SM

MM

Cable OD

MAX 5.5mm

Fiber Diameter

9/125um

62.5/125um  50/125um

Insertion Loss

  APC＜0.7 dB

PC＜0.7 dB

Return Loss

 APC＞60 dB

PC＞25 dB

Insert-pull test

(500times)＜0.5 dB

Interchanging capability

＜0.5 dB

Operating temperature

﹣40℃～＋80℃



Ordering Information


4/6/12/24core

MTP

MTP

SM/MM

5.5mm Boot



More Pictures

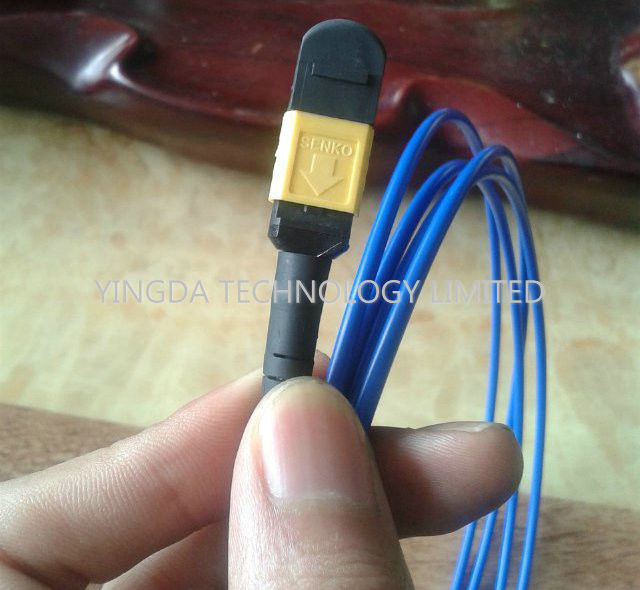

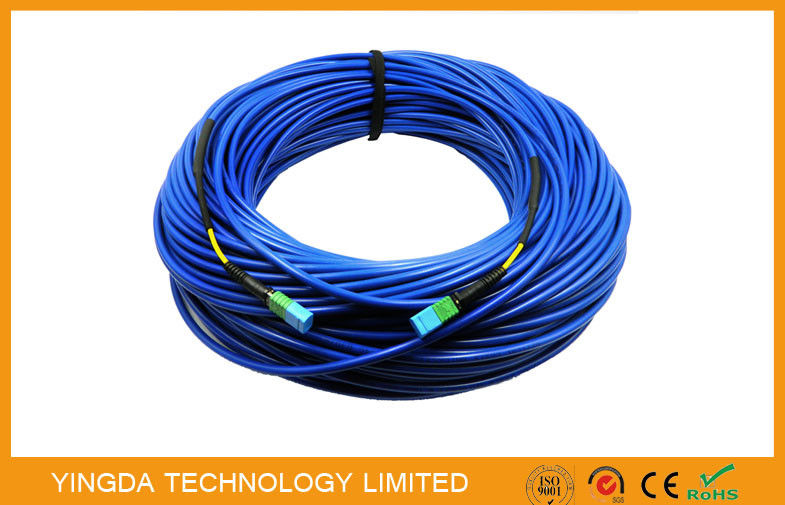

12 Fiber MTP Steel Armored Fiber Optical MTP MPO Cable Round , MTP Patch Cord 0

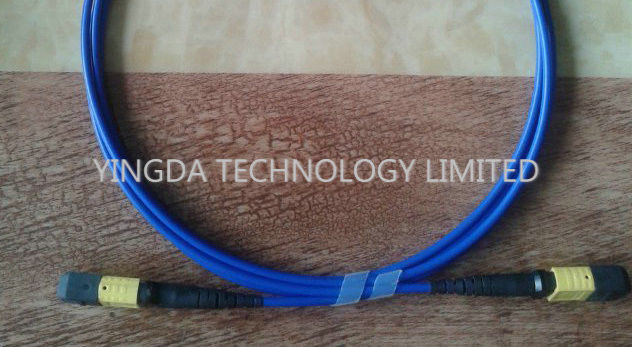

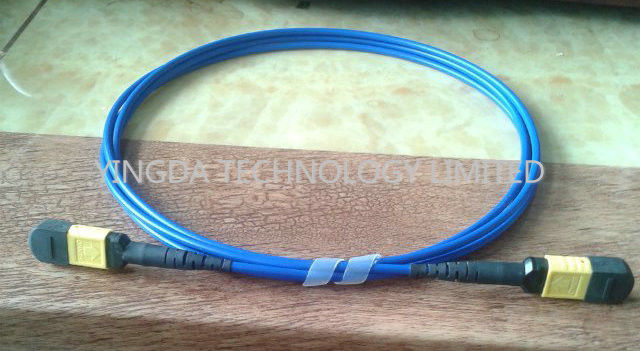

12 Fiber MTP Steel Armored Fiber Optical MTP MPO Cable Round , MTP Patch Cord 1
