Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
MTP MPO Cable
Created with Pixso. Yellow 3D Tested 96 Fiber MTP MPO Cable , Fiber Optic Cable Assemblies
Name
  • Name
  • Name
  • Name
  • Name

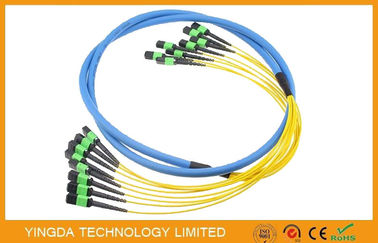

Yellow 3D Tested 96 Fiber MTP MPO Cable , Fiber Optic Cable Assemblies

Brand Name: YINGDA
Model Number: MPO-MPO-SM-96-02
MOQ: 100 pcs
Price: 0.2USD-100USD
Delivery Time: 7days after payment
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Connector:
MPO MTP Female Connector
Fiber Type:
SM 9/125um
Cable Type:
Round Cable
Fiber Count:
96 Fibers
Cable Color:
Yellow
Cable Jacket:
LSZH
Insertion Loss:
<0.35dB
Return Loss:
>60dB
Package:
Vacuum Packing
Packaging Details:
1pc/ box,200pcs/carton box
Supply Ability:
10,000 pcs per month
Highlight:

MPO fanout cable

,

MPO patch cord

Product Description

3D Tested 96 Fibers Mpo / Mtp Patch Cord, 12 Fibers Mpo Connector Usconec Brand




Combining 12~144 fiber trunk cable with 12F MPO/MTP and generic connectors, YINGDA's trunk  cable assemblies contain MPO to MPO and MPO hybrid types. Plug and Play Reels, Pulling eye are designed to be quickly pulled and connected to Plug and Play Modules and Adapter Plates.

Customized configurable to precise application requirements, these reels or pulling eye are efficiently put high-performance, high-density fiber connections exactly where you need them.



Features

  • MPO / MTP connector or MPO hybrid interface patchcord.
  • Available from 12 to 144 fiber Trunk cable, counts in increments of 12 fibers.
  • Available in multi-mode (62.5/125, 10G OM2 / OM3 / OM4, Bend-insensitive fiber, etc.) and single-mode (G652D, G657A1 etc.) fiber types.
  • Generic connector interface available in Simplex or Duplex LC, SC, etc.
  • Customized dual shelf reel and pulling eye keep connectivity protected during payout.
  • Comply with Telcordia GR-1435-CORE, GR-326-CORE, RoHS.



Applications

  1. Installation in horizontal patch extension from consolidation point to the workstation outlets.
  2. High Density Fiber Management.
  3. DACS.
  4. LAN/WAN Premises



Technical properties


                    Connector Performance and Specifications

　

SM

MM

Fiber OD

9/125um

50/125um or 62.5/125um

Connector type

MPO

Insertion Loss(Max)

0.75dB

0.5db

Return Loss

PC

>40dB

-

UPC

>45dB

-

APC

>50dB

-

Fiber type

G652D,G657A

OM1(62.5/125),OM2(50/125),OM3,OM4

Cable OD

0.9mm,2.0mm,2.4mm,3.0mm,4.5mmor customized

Cable type

Round or Flat

Cable Material

LSZH or PVC

Mating Durability(500C)

0.2dB

Temperature Stability

0.2dB

Operation Temperature

-40℃ to +85℃

Storage Temperature

-40℃ to +85℃



Quality assurance

Yellow 3D Tested 96 Fiber MTP MPO Cable , Fiber Optic Cable Assemblies 0

Yellow 3D Tested 96 Fiber MTP MPO Cable , Fiber Optic Cable Assemblies 1

YINGDA 100% quality tested before shipment, adopt Polarity test,3D Interferometer test, End-face inspection, IL&RL test



More product pictures

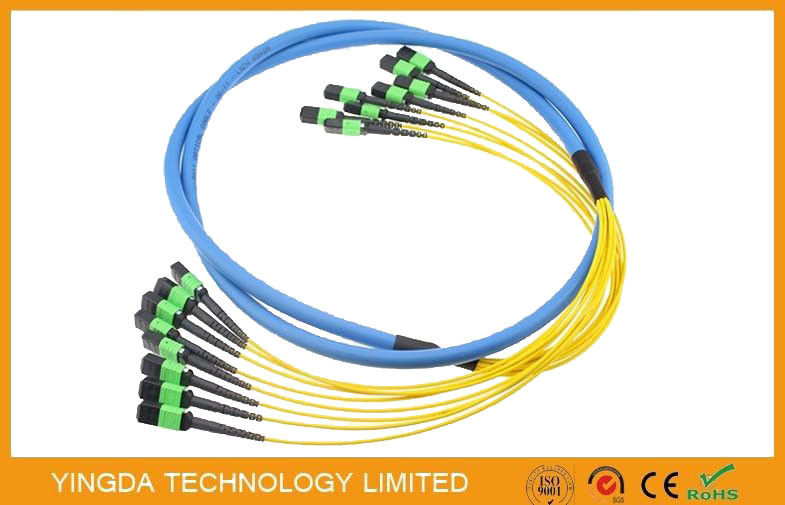

Yellow 3D Tested 96 Fiber MTP MPO Cable , Fiber Optic Cable Assemblies 2

Yellow 3D Tested 96 Fiber MTP MPO Cable , Fiber Optic Cable Assemblies 3


Tags:

MPO patch cord

mpo patch cable

MPO fanout cable
