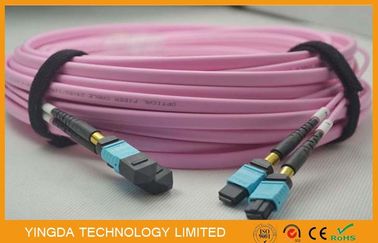

Data Center Multi Mode MTP MPO Cable Om4 Flat , Fiber Optic Patch Cable Assembly

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1pc/ box,200pcs/carton box
Delivery Period: 7days after payment
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MPOF-MPOF-12F-OM4-15
Connector:
MPO MTP Female Connector
Fiber Type:
Multimode OM4
Cable Type:
Ribbon Flat Cable
Fiber Count:
24 Fibers
Cable Color:
Purple
Cable Jacket:
LSZH Or PVC
Insertion Loss:
<0.5dB
Return Loss:
>35dB
Package:
Vacuum Packing
Highlight:

MPO patch cord

,

mpo patch cable

Product Description

24 Fibers Mpo Mtp Patch Cable, Data Center Cable Mpo Connector Om4 Flat Cable



Description


YINGDA offer all kinds of MPO/MTP fiber optic patch cables, they are 12/24 fiber cable pre-terminated  with MPO/MTP connectors at both ends.

These MPO/MTP fiber cables are OFNP Plenum rated, OFNR  Riser rated or LSZH jacket. These cables can be 12/24 fiber 4.5mm ribbon, 3mm round or bare ribbon cable.

The MTP/MPO cabling system is ideally suited for a high density environment that demands space saving cable density and innovative cable management solutions.

Simply install the MTP/MPO fiber cables within the building and connect to the rear of a MTP/ MPO patch panel or ruggedized fan-out.

Except single mode MPO/MPO fiber cable, we also provide all other fiber mode of MPO/MTP fiber cables.


Available fiber: Corning ClearCurve 9/125 (OS2,Yellow), Corning InfiniCor 62.5/125(OM1,Orange),  Corning ClearCurve 50/125 (OM2,Yellow),Corning ClearCurve 50/125(OM3,OM4,Aqua).



MPO 24 Fiber Cable Sell Point

  1. Fiber Count: 12/24 Fiber MPO connectors
  2. Connector: MPO/MTP-MPO/MTP
  3. Cable Type: flat ribbon cable
  4. Gender: Male-Male, Female-Female, Male-Female
  5. Jacket Material: Riser(OFNR),Plenum(OFNP) or LSZH
  6. Length: Customer Length on request
  7. OM4 MPO/MTP fiber cable jacket: purple color.


Feature

  • High Performance in IL & RL
  • Designed for low loss and standard loss SM and MM applications
  • Economical solution for mass-termination of fiber
  • Suitable for MPO/MTP application
  • Ruggedness round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade


Specification


Fiber type

Single mdoe (APC polish)

Multi mode (PC flat polish)

Parameter

Standard

Low loss

Standard

Low loss

Max. Insertion loss

<0.7dB

<0.35dB

<0.7dB

<0.35dB

Return loss

>60dB

NONE

Durability

500 mating's

Operating temperature

-40°C ~+85°C

Test wavelength

1310nm

850nm



Application

  1. Optical switching inter-frame connections
  2. High fiber density card edge access
  3. Array trunk cables
  4. Data center cabling


Cable structure:

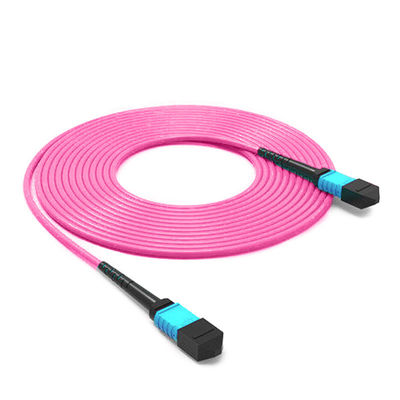

Data Center Multi Mode MTP MPO Cable Om4 Flat , Fiber Optic Patch Cable Assembly 0

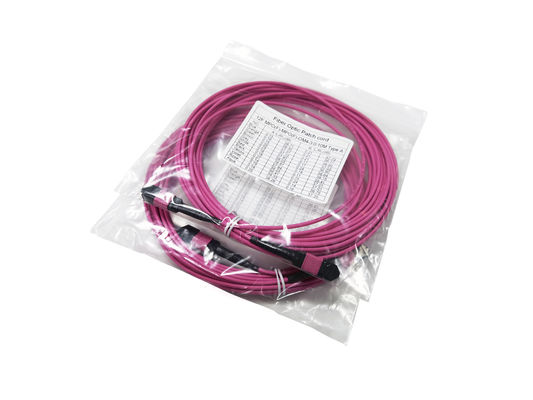

Data Center Multi Mode MTP MPO Cable Om4 Flat , Fiber Optic Patch Cable Assembly 1

Cable Type: 3mm round

Cable print:Can be Customized

Fiber type: OM4 50/125um
