MTP MPO Cable
Created with Pixso. 12 Fibers OM3 10Gig MTP MPO Cable, Trunk Cable MPO - MPO 12 F.O. OM3 15 Mts
Name
  • Name
  • Name
  • Name
  • Name
  • Name

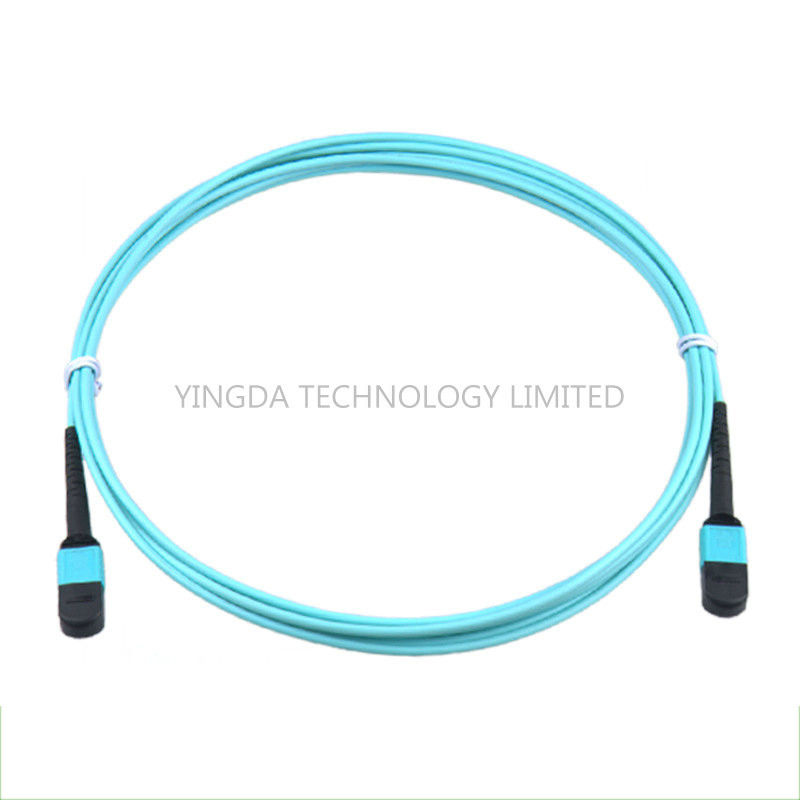

12 Fibers OM3 10Gig MTP MPO Cable, Trunk Cable MPO - MPO 12 F.O. OM3 15 Mts

Brand Name: YINGDA
Model Number: MPOF-MPOF-12F-OM3-10
MOQ: 100 pcs
Price: 0.2USD-100USD
Delivery Time: 7days after payment
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Connector:
MPO MTP Female Connector
Fiber Type:
Multimode 50/125um 10G
Cable Type:
Ribbon / Fan-out Fiber Optic
Fiber Count:
24 Fibers / 12Cores
Cable Color:
Aqua
Cable Jacket:
LSZH Or PVC
Insertion Loss:
<0.5dB
Return Loss:
>35dB
Wavelength:
850nm
Package:
Vacuum Packing
Packaging Details:
1pc/ box,200pcs/carton box
Supply Ability:
10,000 pcs per month
Highlight:

MPO patch cord

,

mpo patch cable

,

OM3 MTP MPO Cable

Product Description



Description

 12 Fibers OM3 10Gig MTP MPO Cable is rated to 40/100 Gigabits,It features 12 fiber strands with an Aqua Blue colored jacket.

Connector 1&2 is a female MPO multi-fiber push-on connector, without pins. and it's can come with many different fiber optic connector types and a couple different core sizes, such as connector  is 12 X male,SC LC connectors. Connector insertion/return loss as follows:

- Maximum Insertion Loss: 0.5 dB
- Typical Insertion Loss: 0.30 dB
- Typical Return Loss -25 dB



Engineered for fast and reliable connectivity between switches, transceivers, media converters, patch panels and other 1/10/40/100g fiber optic equipment. Fully supports Fast Ethernet, 10 Gigabit Ethernet, SFP+, QSFP+, Fiber Channel, OIF, ATM, VCSELs and other service provider applications. Ethernet Over OM3 Multimode Fiber Details:
- Fast Ethernet up to 2000m (100Basw-FX)
- 1Gb up to 550m (1000Base-SX) - Requires mode-conditioning patch cord.
- 10Gb up to 300m (10GBase-SR)
- 40Gb up to 100m (40GBase-SR4)
- 40Gb up to 330m (QSFP+ eSR4)
- 100Gb up to 100m (100GBase-SR10)



Specification



Polishing Connector

MPO Female (SM)

MPO Female (MM)

Insertion Loss (IL)

< 0.50 dB

< 0.50 dB

Return Loss (RL)

> 50dB

> 35dB

Mating Cycles Delta IL

< 0.2 dB after 500 mating cycles

Fiber Cable Type

Single mode: G652D or G657A;

Multimode: OM1, OM2, OM3 OM4;

Cable Color

Yellow for SM G652 and G657A fiber;

Orange for MM OM1 and OM2 fiber;

Aqua for MM OM3 fiber;

Cable Jacket

Ribbon / Fan-out (LSZH / PVC)

Patch Cord Pull-out Force

5N

Operating Temperature

-20°C~+70°C

Storage Temperature

-40°C~+80°C





Bare Fiber Colors:



No

8 Ribbon fiber

No

12 Ribbon fiber

1

Blue

1

Blue

2

Orange

2

Orange

3

Green

3

Green

4

Brown

4

Brown

5

Gray

5

Gray

6

White

6

White

7

Red

7

Red

8

Black

8

Black

9

Yellow

9

Yellow

10

Violet

10

Violet

11

Pink

11

Pink

12

Aqua

12

Aqua



Order Information: (for example)



P/N

Descriptions

MPOF-MPOF-12F-S62-10

MPO-MPO Trunk cable patch cord,

OS2 (G652D), 12 fibers, 10m Yellow

MPOF-MPOF-12F-S67-10

MPO-MPO Trunk cable patch cord,

SM (G657A), 12 fibers, 10m Yellow

MPOF-MPOF-12F-OM1-10

MPO-MPO Trunk cable patch cord,

OM1 (62.5/125um), 12 fibers, 10m Orange

MPOF-MPOF-12F-OM2-10

MPO-MPO Trunk cable patch cord,

OM2 (50/125um), 12 fibers, 10m Orange

MPOF-MPOF-12F-OM3-10

MPO-MPO Trunk cable patch cord,

OM3 (50/125um), 12 fibers, 10m Aqua

MPOF-MPOF-12F-OM4-10

MPO-MPO Trunk cable patch cord,

OM4 (50/125um), 12 fibers, 10m Aqua

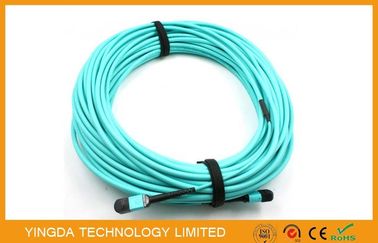

Real Pictures





12 Fibers OM3 10Gig MTP MPO Cable, Trunk Cable MPO - MPO 12 F.O. OM3 15 Mts 012 Fibers OM3 10Gig MTP MPO Cable, Trunk Cable MPO - MPO 12 F.O. OM3 15 Mts 1
