| Brand Name: | YINGDA |
| Model Number: | 1X64 splitter SC |
| MOQ: | 50 pcs |
| Price: | negotiable |
| Delivery Time: | 5-8days after payment |

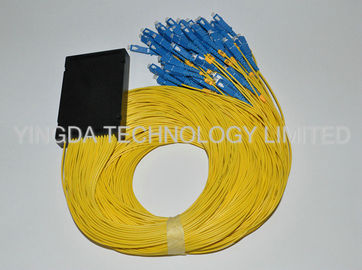

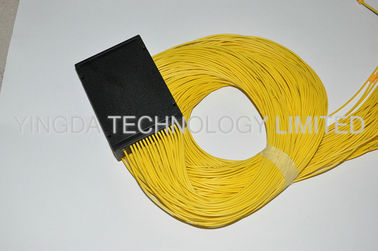

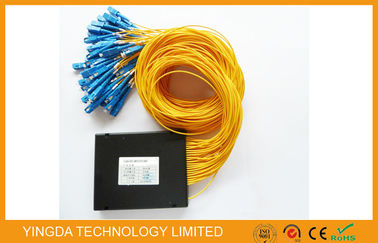

1*64 Optical Splitter Box Module Sc 2mm,Ftth 1x64 Coupler Splitter Box
PLC Splitter, short for planar lightwave circuit splitter, is also called fiber splitter, fiber optic splitter,
optical splitter. It is based on planar light Waveguide technology and provides a Low Cost Power
Distribution Solution with Small Form Factor and High Reliability. Now it is widely used in FTTX,
EPOM,GPON field.
Features
Specification
|
Split ratio |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
||||||||
|
Operating Wavelength(nm) |
1260-1620nm |
||||||||||||||
|
Fiber Type |
G657A1 or customer specified |
||||||||||||||
|
Insertion Loss (dB)P Grade |
3.8 |
7.1 |
10.2 |
13.5 |
16.5 |
20.5 |
23.8 |
|
|
||||||
|
Insertion Loss (dB) S Grade |
4.0 |
7.3 |
10.5 |
13.7 |
16.9 |
21 |
24.2 |
|
|
||||||
|
Loss Uniformity(dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
2.5 |
|
|
||||||
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
|
||||||
|
Return Loss (dB) |
55 |
||||||||||||||
|
Directivity (dB) |
55 |
||||||||||||||
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
||||||
|
Temperature Stability (-40- +85℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
||||||
|
Operating Temperature |
-40- +85℃ |
||||||||||||||
|
Storage Temperature |
-40- +85℃ |
||||||||||||||
Application
Compliance
Packaging Information
|
Product Type |
1×2 |
2×2 |
1×3 |
1×4 |
2×4 |
1×6 |
1×8 |
1×8 |
2×8 |
|
|
Ribbon Fiber |
A1 |
/ |
A1 |
A3 |
/ |
A1 |
A3 |
|||
|
Ф0.9 steel tube |
A3 |
A5 |
||||||||
|
Ф0.9 plastic case |
D |
E |
||||||||
|
Ф2.0 plastic case |
D |
E |
||||||||
|
Ф3.0 plastic case |
D |
E |
||||||||
|
Rack Mount |
1U/2U/3U/4U |
|||||||||
|
LGX Box |
1G/2G/3G/4G |
|||||||||
|
Product Type |
1×12 |
1×16 |
2×16 |
1×24 |
1×32 |
2×32 |
1×64 |
2×64 |
||
|
Ribbon Fiber |
A3 |
A5 |
A4 |
A7 |
A6 |
|||||
|
Ф0.9 steel tube |
A6 |
A8 |
A9 |
A10 |
A11 |
|||||
|
Ф0.9 plastic case |
K |
F |
||||||||
|
Ф2.0 plastic case |
K |
F |
||||||||
|
Ф3.0 plastic case |
K |
/ |
||||||||
|
Rack Mount |
1U/2U/3U/4U |
|||||||||
|
LGX Box |
1G/2G/3G/4G |
|||||||||
Package Dimension (mm)
|
A1 |
40×4×4 steel tube |
A12 |
55x7x4 steel tube |
|
A2 |
45×4×4 steel tube |
D |
90x20x9.5 Plastic box |
|
A3 |
45×4.5×4 steel tube |
E |
100x80x10 Plastic box |
|
A4 |
50×7×4 steel tube |
F |
141x115x18 Plastic box |
|
A5 |
60×7×4 steel tube |
K |
120x80x18 Plastic box |
|
A6 |
60×12×4 steel tube |
U |
1/2/3/4 U 19” rack |
|
A7 |
65×7×4 steel tube |
G |
1/2/3/4 G LGX’ Aluminum rack |
|
A8 |
80×12×4 steel tube |
C |
4/8/16/32/64 CH Cassette |
|
A9 |
80×20×6 steel tube |
T |
4/8/16/32/64 CH Pallet |
|
A10 |
90×20×6 steel tube |
R |
Splice Tray (customized dimension) |
|
A11 |
80×20×6 steel tube |
X |
Custom Specifies |
|
|
