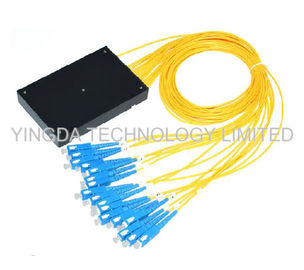

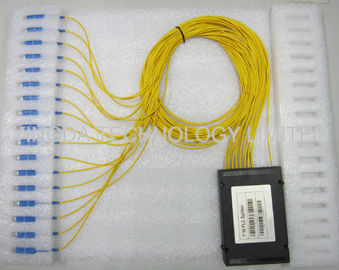

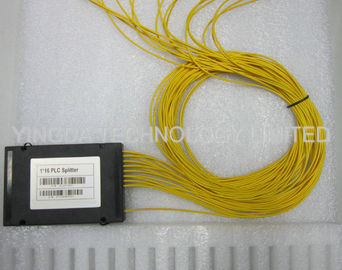

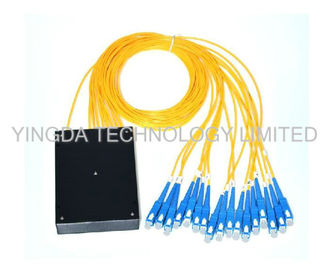

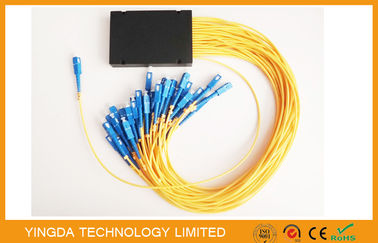

1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable

1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable

  • High Light

    fiber optic splitter

    ,

    fbt coupler

  • Connector
    SC/UPC
  • Fiber Type
    Single Mode G657A1
  • Insertion Loss
    13.5dB
  • Uniformity (Max.)
    1.2dB
  • Wavelength
    1260 - 1650 Nm
  • PDL(Max.)
    0.25dB
  • Module Size
    120*80*18mm
  • Steel Tube Size
    60×12×4mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    1X16 splitter module
  • Minimum Order Quantity
    50 pcs
  • Price
    negotiable
  • Packaging Details
    1pc/ box,5pcs/carton box
  • Delivery Time
    5-8days after payment
  • Supply Ability
    10,000 pcs per month

1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable

1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable





PLC splitter is made by lithography, corrosion, developing production technology,

use semiconductor process. Fiber array is on the surface of optical chip, split function

is integrated in the chip, that is to achieve 1:1 split on a chip; then coupling respectively

coupled input end and an output end multi channel fiber array of the chip and packaged.



Application

  1. FTTX Systems
  2. PON Networks
  3. CATV Links
  4. Optical Signal Distribution



Specification

1 x N splitter (for example)



Split ratio

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Operating Wavelength(nm)

1260-1620nm

Fiber Type

G657A1 or customer specified

Insertion Loss (dB)P Grade

3.8

7.1

10.2

13.5

16.5

20.5

23.8

Insertion Loss (dB) S Grade

4

7.3

10.5

13.7

16.9

21

24.2

Loss Uniformity(dB)

0.4

0.6

0.8

1.2

1.5

2

2.5

Polarization Dependent  Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

0.4

Return Loss (dB)

55

Directivity (dB)

55

Wavelength Dependent

0.3

0.3

0.3

0.5

0.5

0.5

0.5

 Loss(dB)















Temperature Stability  (-40- +85℃)(dB)

0.4

0.4

0.4

0.5

0.5

0.5

0.5

Operating Temperature

-40- +85℃

Storage Temperature

-40- +85℃



Features

  1. Good channel-to-channel uniformity
  2. High  Stability & Reliability
  3. Low Insertion loss&PDL
  4. Compact Design



 Pack information:

  1. ABS plastic box size:120*80*18 mm (middle size)
  2. 1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable 0
  3. 1PC / carton box
  4. 100% test report

1:16 Fiber Optic Plc Splitter Box, Optical Fiber Splitter Module g657a2 Corning Fiber Cable 1
