Fiber Optic PLC Splitter
Created with Pixso. Metal Plastic 1x64 Fiber Optic PLC splitter Cassette 19 inch In Odf Rack , Splitter Splice Tray

Metal Plastic 1x64 Fiber Optic PLC splitter Cassette 19 inch In Odf Rack , Splitter Splice Tray

Brand Name: YINGDA
Model Number: 1x64 splitter tray
MOQ: 100 pcs
Price: negotiable
Delivery Time: 5-8days after payment
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Split Ratio:
1X64
Connector:
SC/UPC Simiplex
Fiber Type:
Single Mode G657A1
Insertion Loss:
21dB
Uniformity (Max.):
2dB
Wavelength:
1260 - 1650 Nm
PDL(Max.):
0.35dB
Rack Dimension:
1U 310x200x25mm
Material:
Plastic
Packaging Details:
1pc/ box,5pcs/carton box
Supply Ability:
10,000 pcs per month
Highlight:

fbt coupler

,

plc splitter

Product Description

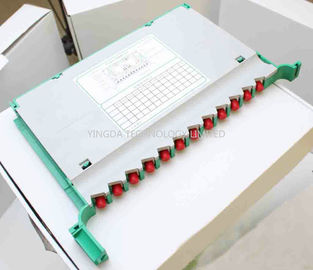

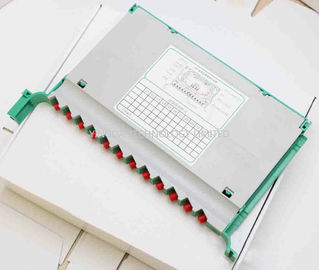

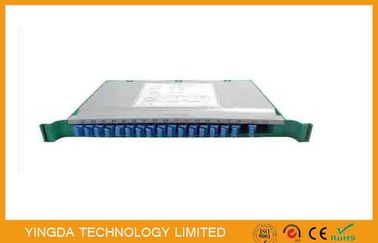

1x64 PLC Splitter Module Tray Cassette 19inch In ODF Rack, Splitter Splice Tray





The splice tray type optical splitter module have two kinds: metal and plastic material. It can

be widely installed in all kinds of 19 inch standard ODF rack, the standard network cabinet,

 comprehensive standard cabinet series product.The bare fiber type optical splitter, micro

optical splitter or abs box splitter can be installed in tray type optical splitter module, it can

be configured flexibly according to the need. The model can be customized, SC, FC, ST,

LC and others can be choosed.



Note:

1u tray maximum can configure 1x16 splitter adapter output,

2u tray can maximum hold 2x32 splitter adapter output.





Features

  1. Splitting ratio as customized:1x2, 1x4, 1x8, 1x16, 1x32, 2x16, 2x32, etc.
  2. Modular design, better stability, and can be conveniently by superposition of
  3. the tray to enlarge the capacity.
  4. Single tray can hold 1 x 16 or 2 x 16 splitter module,the height is completely
  5. consistent with the weld distribution integrated plate, perfect swap
  6. Compact size, flexible configuration,Light weight, high strength, dustproof
  7. Configure various connector: FC, SC, LC etc.
  8. Can install in 19inch Module type ODF
  9. The adapter and the equipment clamping type installed at 30 degrees, not only
  10. ensures the bending radius of the jumper, can prevent the laser burns of eyes
  11. Cable or pigtail have more than 2meters storage space



Specification



Parameters

Value

Max PLC splitter ratio

 1U Tray = 1*16

2U Tray= 2*32 or 1*32

Environment temperature

-40~+60 degree

Atmospheric pressure

70Kpa ~ 106Kpa

Relative humidity

≤95%(+40degree)

Return loss connectors

PC≥40dB UPC≥50dB type: APC≥60dB

Plug durability

>1000times

Connectors

SC,FC,LC

Dimension

1*16 =310x200x25mm

2*32 or 1*32=310x200x50mm



Application



  1. Optoelectronics communication system
  2. CATV
  3. LAN



Installation places



Optical fiber distribution frame, optical cable distributing box, ODF cabinet / frame,

 comprehensive wiring cabinet and other wiring equipment
