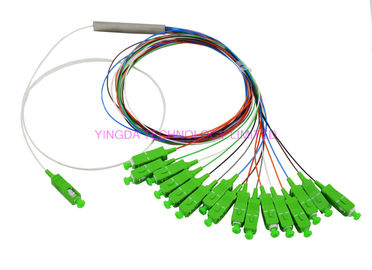

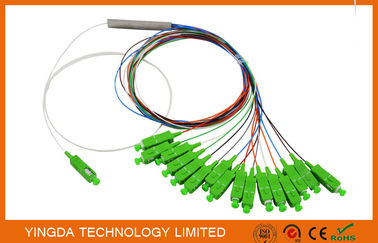

Broadband FTTH Splitter Coupler 1 x 16,1:16 Fiber Optic PLC Splitter Ribbon 900um SC APC Connectors For Fiber Optic Termination Box
Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology. It features small size,
high reliability, wide operating wavelength range and good channel-to-channel uniformity,
and is widely used in PON networks to realize optical signal power splitting. YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for
specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-
1999 requirements.
Features
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: From 1260nm to 1650nm
6) Wide Operating Temperature: From -40℃ to 85℃
7) High Reliability and Stability
Applications
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
Compliance
1) Telcordia GR-1209-CORE-2001
2) Telcordia GR-1221-CORE-1999
3) RoHS
More pictures
pack: 2pcs in a box with foam, there is fix place for steel tube and all connectors in order. Highly protec all the fibers and connectors when transportation.
can put product name, serial number, and customer logo on the label.
each connectors have figure ring on the cable to identify which split it is.
If customer need , can use colorful tube for each cable for identification.
Technical Characteristics
1×N PLC Splitter
Parameter | Unit | Value | |||||||||||||||||||
Product Type |
| 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 | 1×128 | |||||||||
Operation Wavelength | nm | 1260～1650 | |||||||||||||||||||
Insertion Loss | Typ. | dB | 3.6 | 6.0 | 7.0 | 9.2 | 10.3 | 12.2 | 13.6 | 15.8 | 16.6 | 20.1 | 24.5 | ||||||||
Max. | 4.3 | 6.2 | 7.4 | 9.5 | 10.7 | 12.5 | 13.9 | 16.0 | 17.2 | 21.5 | 25.5 | ||||||||||
Uniformity (Max.) | dB | 0.5 | 0.6 | 0.8 | 0.8 | 0.8 | 1.2 | 1.4 | 1.5 | 1.5 | 2.0 | 2.6 | |||||||||
PDL(Max.) | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | |||||||||
TDL(Max.) | dB | 0.5 | |||||||||||||||||||
Return Loss | dB | ≥55/50 | |||||||||||||||||||
Directivity | dB | ≥55 | |||||||||||||||||||
2×N PLC Splitter
Parameter | Unit | Value | |||||||
Product Type |
| 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |
Operation Wavelength | nm | 1260～1650 | |||||||
Insertion Loss | Typ. | dB | 4.2 | 7.2 | 10.6 | 13.8 | 17.0 | 20.5 | 24.8 |
Max. | 4.5 | 7.7 | 11.0 | 14.8 | 17.9 | 21.5 | 25.8 | ||
Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.5 | 3.0 | |
PDL(Max.) | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 1.0 | |
TDL(Max.) | dB | 0.5 | |||||||
Return Loss | dB | ≥55/50 | |||||||
Directivity | dB | ≥55 | |||||||
Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
|
|
