| Brand Name: | YINGDA |
| Model Number: | 1*8 optical splitter |
| MOQ: | 100 pcs |
| Price: | negotiable |
| Delivery Time: | 5-8days after payment |
| Payment Terms: | Western Union, T/T, MoneyGram |

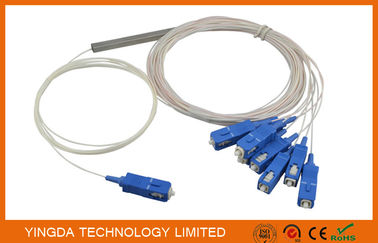

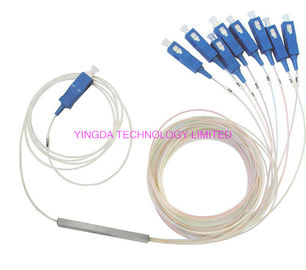

GPON 1 x 8 Fiber Optic Plc Splitter Blockless Splitter Module With 0.9mm Cable Smf-28e G657
PLC Splitter is Based on the Planar Waveguide Technology.
It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability
Features
More pictures
cable input and outputs: 0.9mm tight or loose tube, white color
cable input and outputs: 0.9mm tight or loose tube, input yellow color, output white color, on customer request
Application
Specification
1×N PLC Splitter
|
Parameter |
Unit |
Value |
|||||||||||||||||
|
Product Type |
|
1×2 |
1×3 |
1×4 |
1×6 |
1×8 |
1×12 |
1×16 |
1×24 |
1×32 |
1×64 |
1×128 |
|||||||
|
Operation Wavelength |
nm |
1260～1650 |
|||||||||||||||||
|
Insertion Loss |
Typ. |
dB |
3.6 |
6.0 |
7.0 |
9.2 |
10.3 |
12.2 |
13.6 |
15.8 |
16.6 |
20.1 |
24.5 |
||||||
|
Max. |
4.3 |
6.2 |
7.4 |
9.5 |
10.7 |
12.5 |
13.9 |
16.0 |
17.2 |
21.5 |
25.5 |
||||||||
|
Uniformity (Max.) |
dB |
0.5 |
0.6 |
0.8 |
0.8 |
0.8 |
1.2 |
1.4 |
1.5 |
1.5 |
2.0 |
2.6 |
|||||||
|
PDL(Max.) |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.8 |
|||||||
|
TDL(Max.) |
dB |
0.5 |
|||||||||||||||||
|
Return Loss |
dB |
≥55/50 |
|||||||||||||||||
|
Directivity |
dB |
≥55 |
|||||||||||||||||
2×N PLC Splitter
|
Parameter |
Unit |
Value |
|||||||
|
Product Type |
|
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
2×128 |
|
|
Operation Wavelength |
nm |
1260～1650 |
|||||||
|
Insertion Loss |
Typ. |
dB |
4.2 |
7.2 |
10.6 |
13.8 |
17.0 |
20.5 |
24.8 |
|
Max. |
4.5 |
7.7 |
11.0 |
14.8 |
17.9 |
21.5 |
25.8 |
||
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.5 |
3.0 |
|
|
PDL(Max.) |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
1.0 |
|
|
TDL(Max.) |
dB |
0.5 |
|||||||
|
Return Loss |
dB |
≥55/50 |
|||||||
|
Directivity |
dB |
≥55 |
|||||||
Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
Pack information
|
Split ratio |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
|
Mini-Module Dimension (mm) |
60*7*4 |
60*7*4 |
60*7*4 |
60*12*4 |
80*20*6 |
100*40*6 |
N/A |
Steel tube size for 1x8 PLC splitter
Environmental Conditions
|
Operating Temperature |
℃ |
-40～+85 |
|
Storage Temperature |
℃ |
-40～+85 |
|
Operating Humidity |
%RH |
≤93 |
|
Storage Humidity |
%RH |
≤93 |
Ordering Information
|
PLCS |
- |
- |
- |
- |
- |
- |
- |
|
|
Structure |
Fiber Type |
Package |
Input |
Output |
Length |
Connector |
|
Structure |
0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64 |
||||||
|
Fiber Type |
1=G652D, 2=G657A1, 3=G657A2 |
||||||
|
Package Dimension |
A1, A2,...A12, D, E, F, K, U, G, C, T, R, X |
||||||
|
Input Type |
B=250μm Bare Fiber ,L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
||||||
|
Output Type |
B=250μm Bare Fiber , L=900µm Loose tube, S=2.0mm, R=3.0mm, F=splitter, 0=Adapter |
||||||
|
Pigtail Length |
05=0.5m, 10=1.0m, 100=100m, 0=Adapter, 15/10=1.5m input/1.0m output, X=Others |
||||||
|
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, MPA=MPO/APC, FU/FA=FC/UPC input / FC/APC output, 00=None, X=Others |
||||||
|
|
